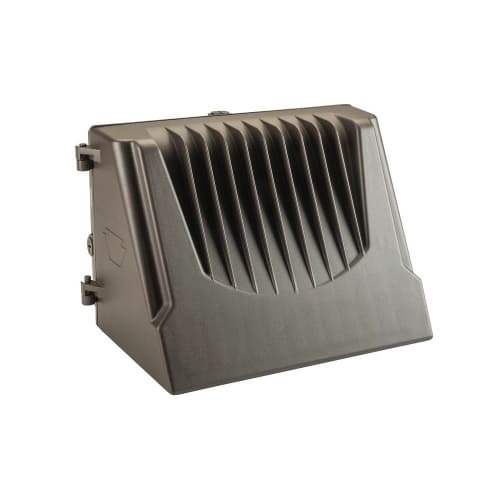

Keystone KT-WPLED100-M2-840-VDIM LED Wall Pack 100W

Product Description

The KEYSTONE KT-WPLED100-M2-840-VDIM is a 100W LED wall pack with a full cutoff medium housing. It operates on 120-277V input and has a 4000K color temperature with 0-10V dimming. It features a wide angle distribution pattern and a standard bronze housing. It provides long-lasting, energy-efficient LED illumination for exterior facade lighting applications.

• 100W
• Full Cutoff Medium Housing
• 120-277V Input
• 0-10V Dimmable
• Wide Angle Dist Pattern
• Standard Bronze Housing

Product Highlights

This LED wall pack is dark sky friendly and has an IP65 rating. It is ideal for increased fixture spacing and uniformity.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WPLED100-M2-840-VDIM

Technical Specifications

• Watts: 100 W
• Lumens: 13,000 lm
• Color Temperature (CCT): 4000 K
• Input Voltage: 120-277V
• Dimmable: 0-10V Dimmable
• Housing: Standard Bronze Housing
• Distribution Pattern: Wide Angle Dist Pattern
• MPN: KT-WPLED100-M2-840-VDIM
• Our Part No: KT-JFC-71
• Mfr Part #: KT-WPLED100-M2-840-VDIM
• Manufacturer Material Code: JFC-71
• Lamp: LED Wall Pack
• Wattage: 100W
• Color Temp: 4000K
• Voltage: 120-277V (Universal)
• Dimming: Yes
• Bulb Life: 50000 Hours
• CRI: >80
• Finish: Bronze
• Dimensions: 14.36" L x 9.71" W x 9.30" H
• Equivalent: 400W
• Lumens Per Watt: 125
• Rated Hours: 50,000 Hours
• Min Operating Temp: -40 Degrees F
• Special Features: Dark Sky Approved
• Length: 14.36"
• Width: 9.71"
• Height: 9.3"
• Certificate: cUL/UL Listed, DLC Premium, FCC
• Life Hours: 50000
• Maximum Voltage: 120V-277V
• UPC: 843654129099
