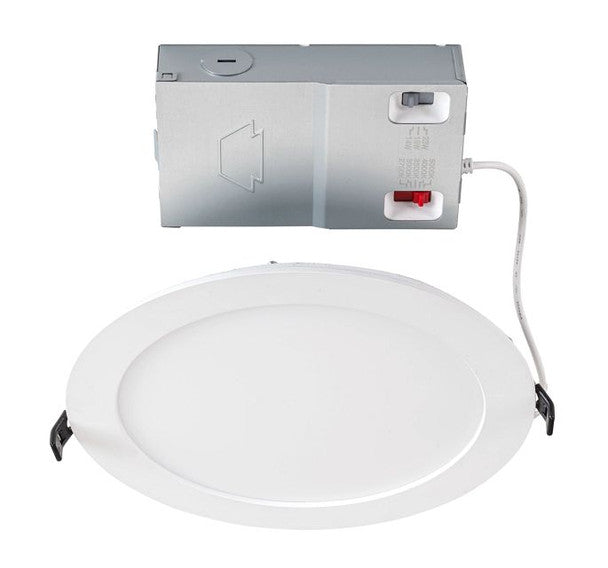

Keystone KT-WDLED23PS-8A-9CSF-VDIM LED Slim Wafer Downlight 23W 8 inches Round

Product Description

The Keystone KT-WDLED23PS-8A-9CSF-VDIM Circa series thin LED downlights provide long-lasting, energy-efficient LED illumination for general downlight applications. These 8" round wafer LED downlights provide 1,100 through 1,960 lumens of CCT-selectable white light. They feature a remote driver and built-in junction box, eliminating the need for a multi-piece fixture setup and fitting in shallow ceilings.

• 120-277V operation
• 0-10V dimmable
• Wattage selectable: choose between 14W / 1,100-1,185 lumens, 18W / 1,400-1,500 lumens, or 23W / 1,800-1,960 lumens
• CCT-selectable: choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K or daylight 50K white light color temperatures

Product Highlights

This downlight has a high CRI of 90+ for true color rendering. It is airtight, IC-rated, Energy Star, and Title-24 compliant, with an operating temperature of -22º to 104º F and a rated life of 50,000 hours.

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-WDLED23PS-8A-9CSF-VDIM

Technical Specifications

• Product Category: Recessed - Direct Wire
• Brand: Keystone
• Manufacturer Part Number: KT-WDLED23PS-8A-9CSF-VDIM
• UPC: 843654139203
• Lumens: 1960 Lumens
• Lumens Per Watt: 85.22
• Wattage: 23 Watts
• Input Voltage: 120-277V
• Dimmable: 0-10V
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Downlight Diameter: 8"
• Downlight Type: Thin / Wafer, Wattage / Lumen Selectable
• Rated Hours: 50,000 Hours
• Beam Angle: 110 Degrees
• Min Operating Temp: -22 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wattage Selectable, Wet Location Rated
• Diameter: 9.56"
• Fixture Length: 8"
• Energy Star Rated: Yes
• Wet/Damp Rated: Wet Rated
• Nominal Size: 8 in
• Life Hours: 50000
• Efficacy: 85 lm/W
