Keystone KT-WDLED13-6BB-9CSF-FDIM 13W LED Wafer Downlight Baffle (6 in) KT-WDLED13-6BB-9CSF-FDIM

Product Description

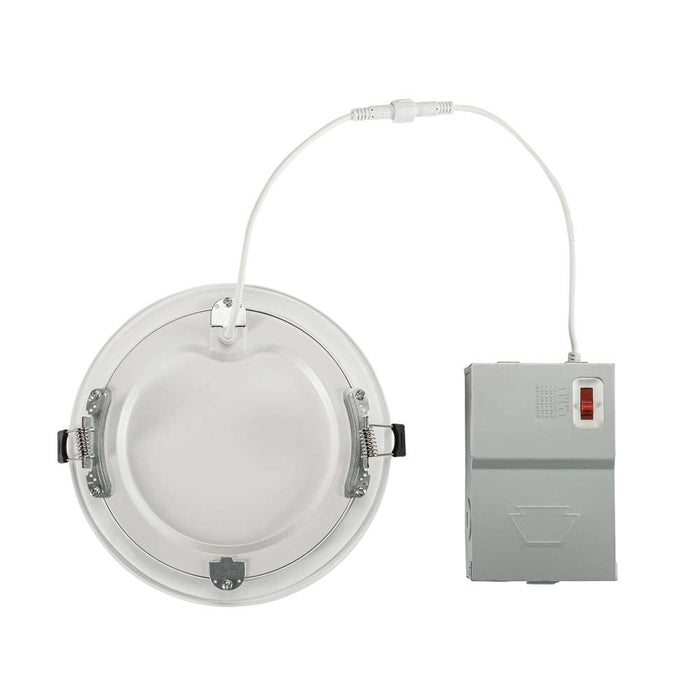

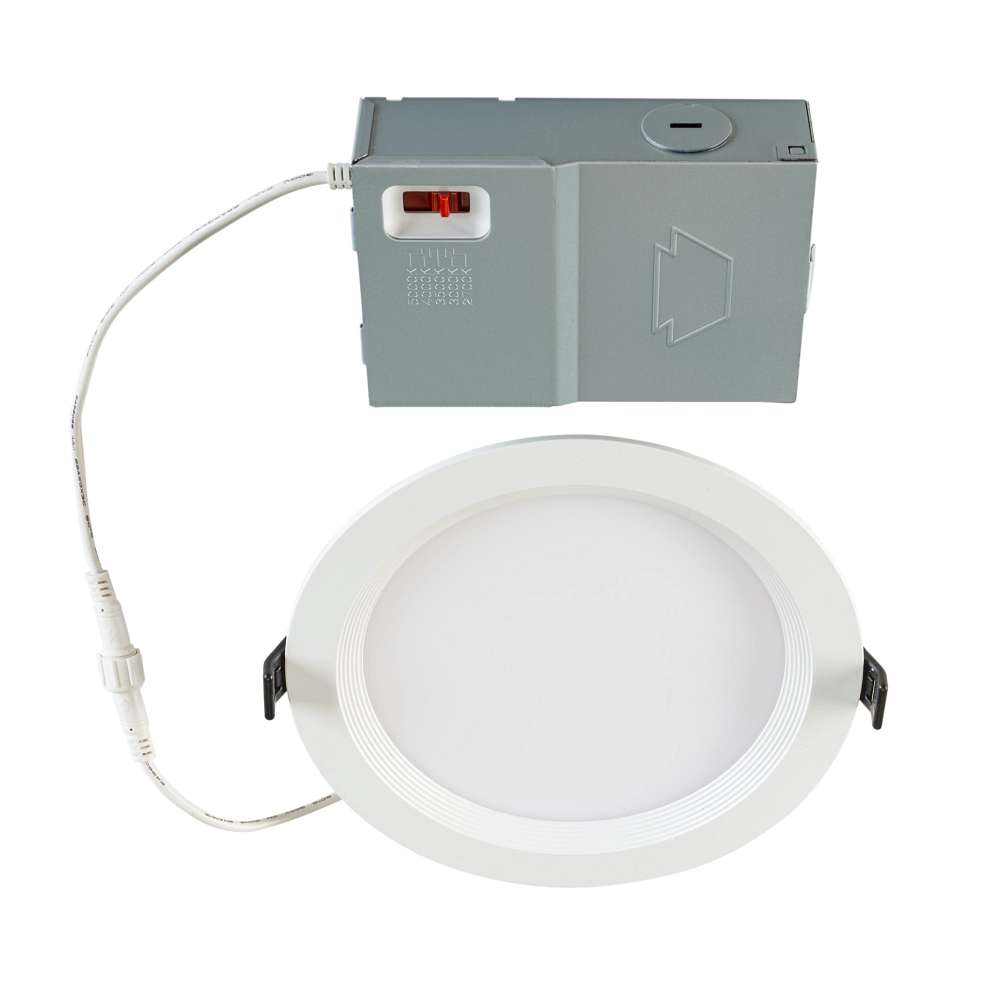

Keystone KT-WDLED13-6BB-9CSF-FDIM is a 13W 6-inch LED wafer downlight with a baffled trim and remote driver. It provides selectable color temperatures (2700K–5000K), 1,140 lumens output, 90 CRI, and phase dimming for recessed lighting in new construction, retrofit, and remodel applications. The flat wafer body fits shallow ceilings and is airtight and Type IC-rated; the remote driver includes a built-in junction box and quick disconnect.

• CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K (factory preset to 3000K)
• 13W power, 1,140 lumens, 92 lm/W efficacy, 90 CRI, 50,000 hour rated life
• Remote driver with built-in junction box and quick disconnect; phase (TRIAC) dimming; 110° beam angle; airtight and IC-rated

Product Highlights

6-inch baffled LED wafer downlight, CCT selectable, 120V operation, 110° beam

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WDLED13-6BB-9CSF-FDIM

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-WDLED13-6BB-9CSF-FDIM
• Product Type: LED wafer downlight (baffled)
• Wattage: 13W
• Input Voltage: 120V
• Lumens: 1,140 lm
• Efficacy: 92 lm/W (INCONSISTENT with 1,140 lm / 13W = 87.7 lm/W — see notes)
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (CCT selectable; factory preset to 3000K)
• CRI: 90
• Beam Angle: 110°
• Rated Life: 50,000 hours
• Dimmable: Phase (TRIAC) dimming, 10–100% (TRIAC compatible)
• Driver: Remote driver with built-in junction box and quick disconnect
• Downlight Diameter: 6 in (nominal aperture)
• Mounting Type: Wafer / recessed thin
• Trim Type: Baffle
• Operating Temperature: -4°F to 104°F
• Enclosure Rating: IC-rated, airtight, wet location listed
• Certifications: cUL/UL Listed, Energy Star, Title 24, JA8 compliant, RoHS, FCC
• Product Dimensions: 7.42 x 7.42 x 3.23 inches
• Weight: 1.00 lb
• UPC: 843654169156
