Keystone KT-WDLED13-6B-9CSF-FDIM 6in Circular LED Recessed Wafer Downlight 13W REPLACEMENT KTWDLED136B9CSFFDIM

Product Description

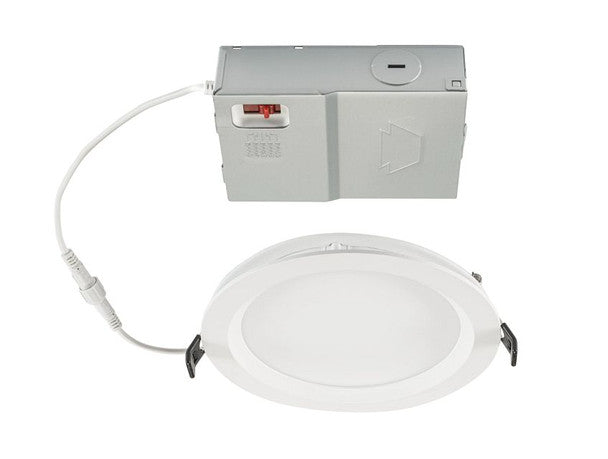

The KEYSTONE KT-WDLED13-6B-9CSF-FDIM is a 6in circular LED recessed wafer downlight featuring color selection. This 13W downlight has a selectable color temperature of 2700/3000/3500/4000/5000K and a 90 CRI. It operates on 120V input and is phase dimming compatible, and includes a remote driver.

• Color Select
• 13W
• 2700/ 3000/ 3500/ 4000/ 5000K

Product Highlights

The wafer downlight's flat body fits into shallow ceilings, and its remote driver has a built-in junction box and quick disconnect.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WDLED13-6B-9CSF-FDIM

Technical Specifications

• Watts: 13 W
• Lumens: 1,000 lm
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Nominal Size: 6 in
• CRI: 90+
• Input Voltage: 120V
• Dimming: Phase Dimming
• Driver: Remote Driver
• Shape: Circular
• Type: Recessed Wafer Downlight
• Voltage: 120-277V (Universal)
• Dimensions: 7.36" D x 1.99" H
• Fixture Length: 6"
• Finish: White
• Wattage: 13W
• Dimmable: Yes
• Life Hours: 50000
• Maximum Voltage: 120V
• Lumens Per Watt: 79.23
• Downlight Diameter: 6"
• Downlight Type: Thin / Wafer
• Reflector Color / Type: White / Smooth
• Rated Hours: 50,000 Hours
• Beam Angle: 110 Degrees
• Min Operating Temp: -22 Degrees F
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated
• Diameter: 7.36"
• Base Type: Direct
• Incandescent Equivalent: 60W-75W
• CFL Equivalent: 18W-24W
• Recessed Housing: 6"
• Kelvin: 2700K/3000K/3500K/4000K/5000K
• Power Factor: >0.9
• Energy Star Rated: Yes
• Wet/Damp Rated: Wet Rated
• Length (M.O.L.) Inches: 1.99
• Efficacy: 78 lm/W
