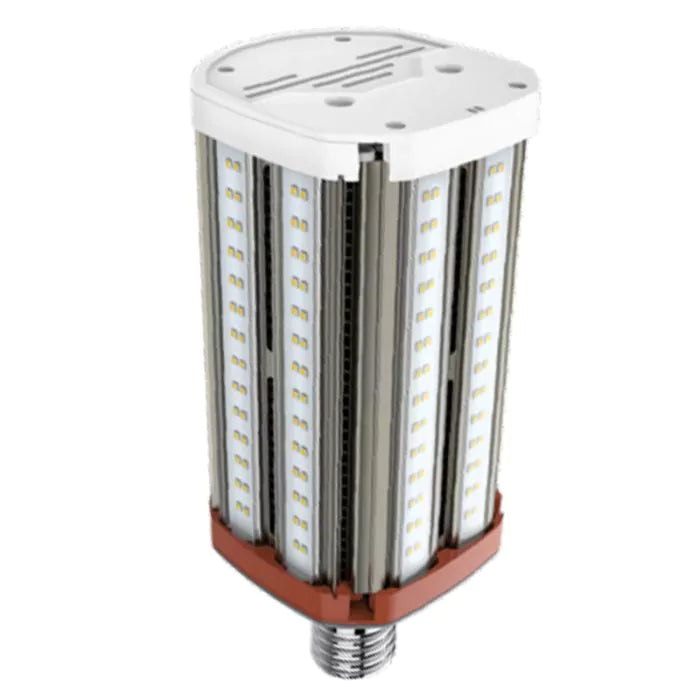

Keystone KT-LED80PSHID-H-EX39-8CSB-D LED HID Replacement Lamp 80W

Product Description

The Keystone KT-LED80PSHID-H-EX39-8CSB-D HID replacement lamp takes a universal 120-277V input and generates 7290-11600 lumens. This LED corn bulb offers selectable wattage of 54W, 63W, or 80W and a selectable color temperature of 3000K, 4000K, or 5000K. It is designed to replace up to 320W metal halide lamps.

• Power Selectable 80W/63W/54W
• Color Selectable 3000K/4000K/5000K

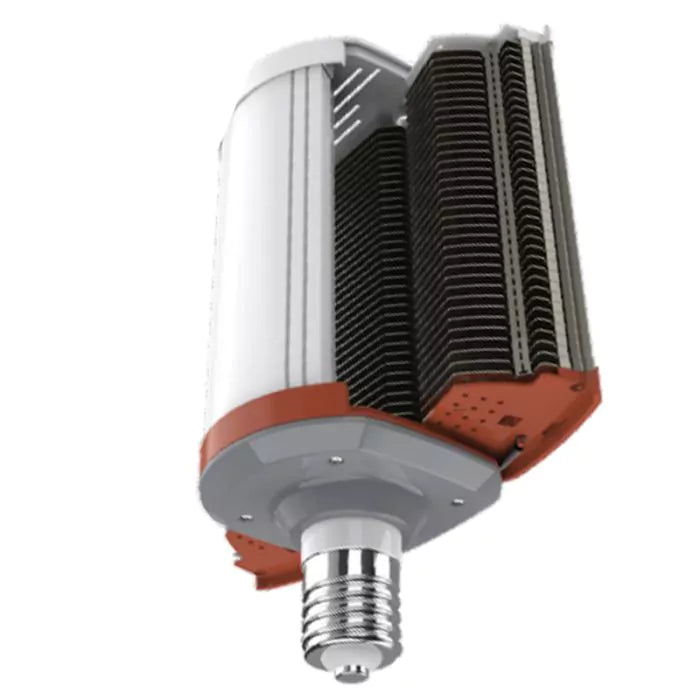

• Rotating Mogul base to optimize light direction

Product Highlights

This Keystone HID LED lamp has an EX39 mogul base, is IP64 rated, and suitable for enclosed fixtures. It features integrated 4kV surge protection and a 50,000+ hour lifetime.

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-LED80PSHID-H-EX39-8CSB-D

Technical Specifications

• Mfr Part #: KT-LED80PSHID-EX39-8CSB-D
• Brand: Keystone
• Bulb Shape: Corn Cob
• Wattage: 54W/63W/80W
• Lumens: 7290, 8505, 10800, 7560, 8820, 11200, 7830, 9135, 11600
• Lumens per Watt: 135, 145, 140
• Color Temperature: 3000K/4000K/5000K
• Input Voltage: 120-277V
• Base Type: Mogul Extended (EX39)
• CRI: 80+
• HID Equivalent: 320W
• Bulb Life: 50000 Hours
• Dimming: Yes
• Mfg #: KT-LED80PSHID-H-EX39-8CSB-D
• Base: Mogul (Ex39)
• Certifications: DLC, Enclosed Rated, IP64, UL, RoHS
• DLC Listed: Yes
• Life (hrs): 50000
• Diameter (in): 8.98"
• Length (in.): 8.58”
• Lumens/Watt: 135-147
• UPC: 843654138923
• Lamp / Base Type: EX39 Mogul
• Lamp Shape: Corn Cob
• Rated Hours: 50,000 Hours
• Min Operating Temp: -22 Degrees F
• Special Features: CCT Selectable, Enclosed Fixture Rated, Rotatable Base, Wattage Selectable
• Length: 8.58"
• Manufacturer: Keystone
• Manufacturer Part #: 13892
• Manufacturer Description: KT-LED80PSHID-H-EX39-8CSB-D
• UPC Code: 843654138923
• Power Input: Ballast Bypass / Direct Wire
• Light Output: Selectable lumens
• Energy Used: Selectable watts (replaces 320 watts)
• Average Lifetime: 50,000 hours
• Volts: 120/277
• Color / Finish: Selectable
• Beam Angle: 180°
• Efficacy: 139-149 LpW
