Keystone KT-EX-TP1-WH3RG-SU 1.1W Style 1 SmartSafe LED Exit Sign (Surface Mount) LEXRG1W/WH-K

Product Description

Keystone KT-EX-TP1-WH3RG-SU is a Style 1 thermoplastic LED exit sign with switchable red/green lettering and an integrated emergency NiCd battery backup. The unit operates on universal 120-277V input, supports single- or double-faced configurations with removable chevrons, and provides over 90 minutes of emergency illumination with an integrated test switch and charge indicator.

• Universal 120-277V input with low 1.1W power consumption
• Integrated NiCd 1000mAh battery backup providing 90+ minutes of emergency operation with built-in test switch and charge indicator
• Surface-mountable (top, side, back) with single- or double-face options and removable chevrons

Product Highlights

Thermoplastic Style 1 LED exit sign; switchable red/green lettering; universal 120-277V; 1000mAh NiCd battery; 90+ minute emergency runtime; built-in test switch and charge indicator.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-EX-TP1-WH3RG-SU

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-EX-TP1-WH3RG-SU
• Replacement Part Number: LEXRG1W/WH-K
• Model Family: Smart Safe Exit Sign
• Type: Exit sign
• Style: Style 1
• Housing Material: Thermoplastic (UL 94 5VA flame rating)

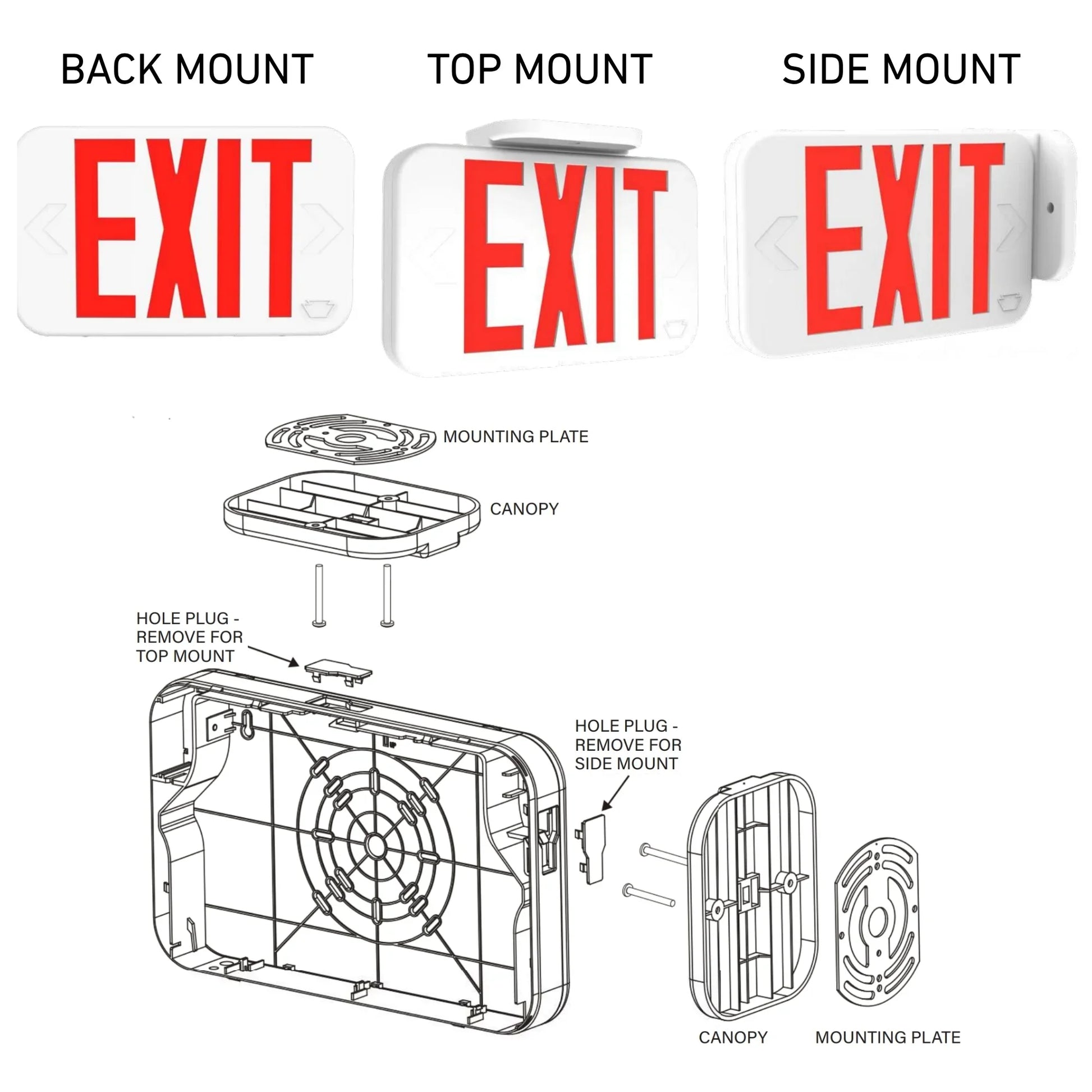

• Mounting Type: Surface mount (top, side, back); end, ceiling, wall, J-box compatible

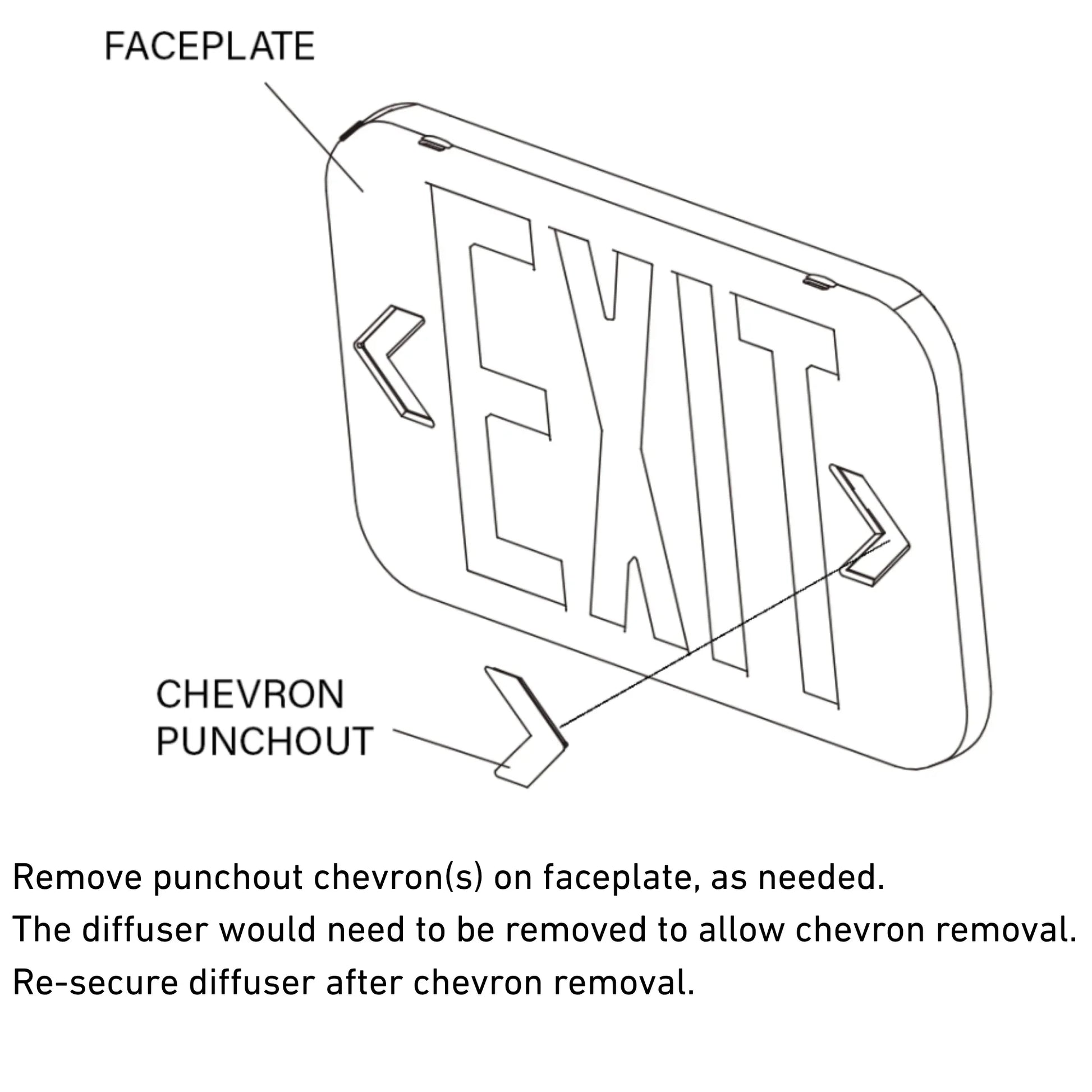

• Face Options: Single or double facing; removable chevrons

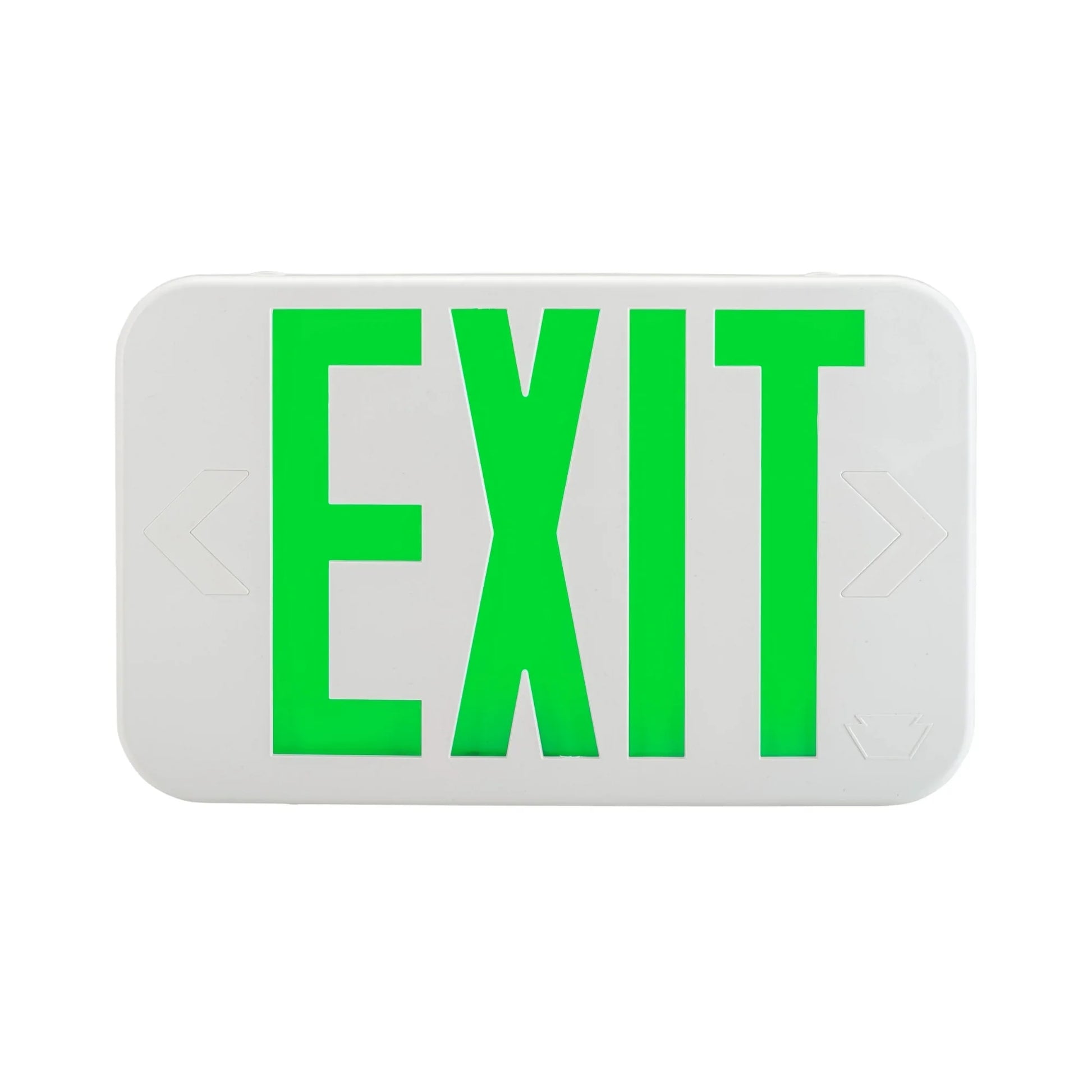

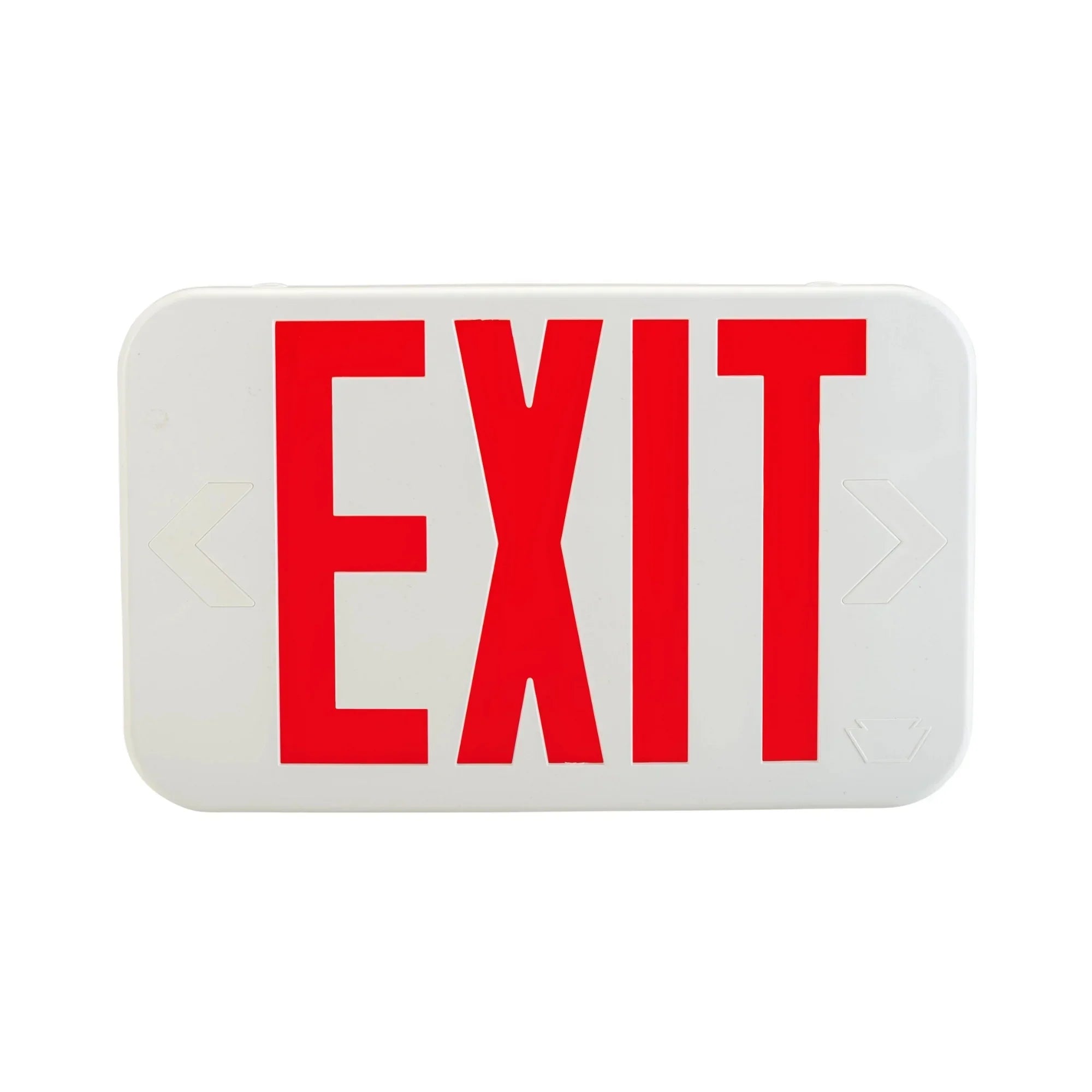

• Lettering: Switchable red or green LED lettering
• Input Voltage: 120-277V
• Power Consumption: 1.1 W
• Technology: LED
• Battery Type: Nickel-Cadmium (NiCd)
• Battery Capacity: 1000 mAh
• Battery Backup Duration: 90+ minutes
• Recharge Time: 24 hours
• Test Switch: Integrated test switch and charge indicator
• Operating Temperature: 0 C (32 F) to 40 C (104 F)
• Certifications: UL; cULus; UL 924; Damp location rated; RoHS

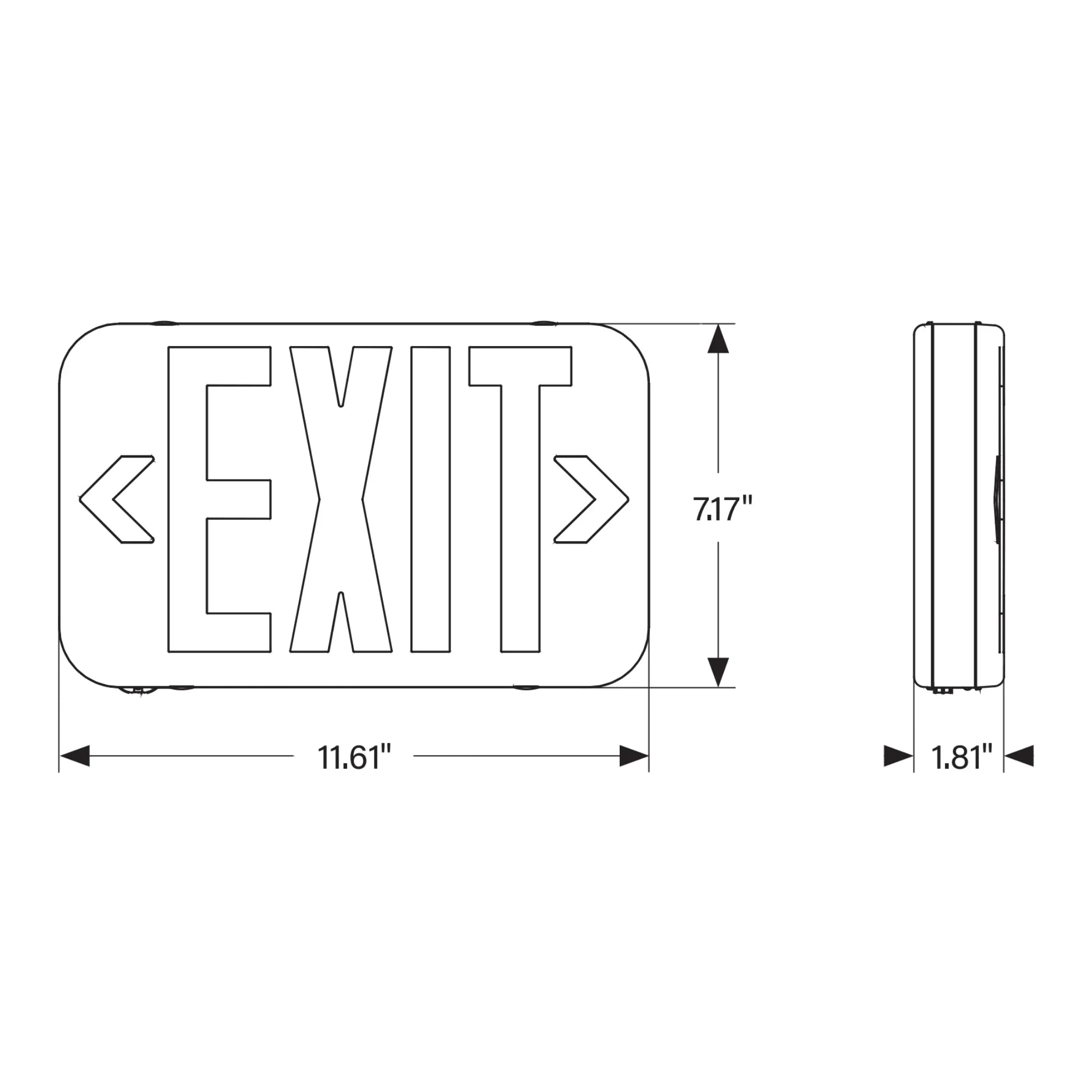

• Dimensions (L x W x H): 11.61 in x 1.81 in x 7.17 in
• Weight: 1.9 lb
• Remote Capable: No
