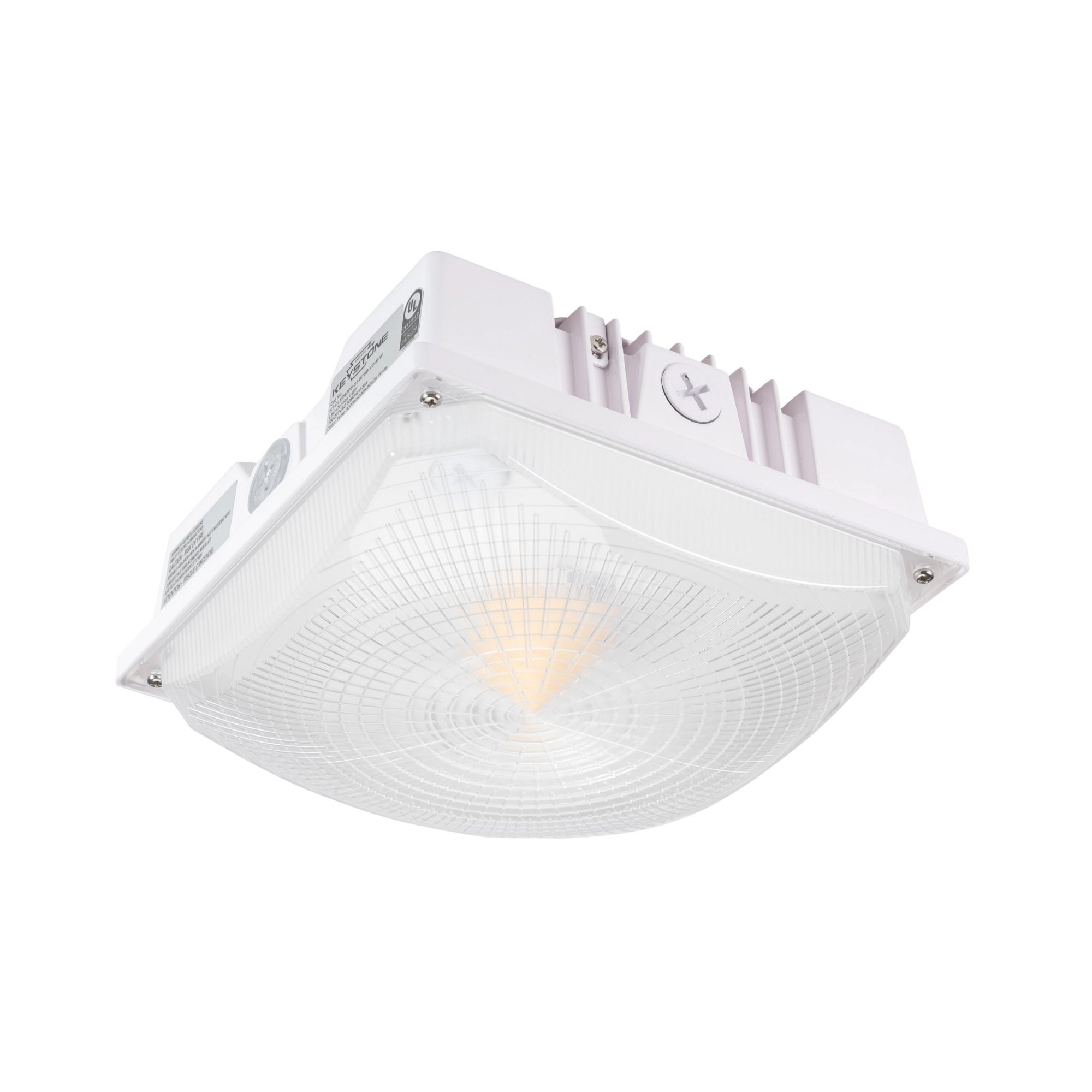

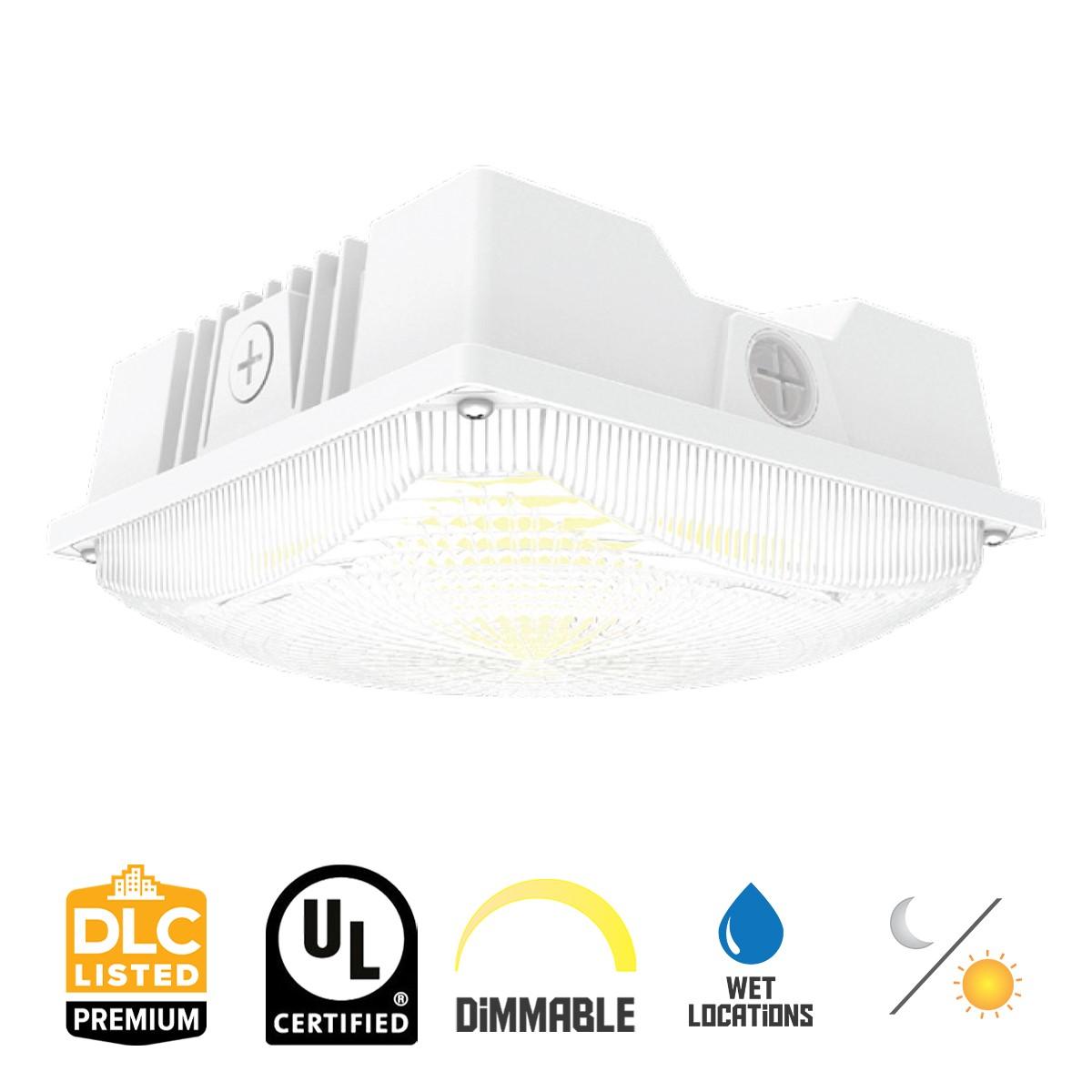

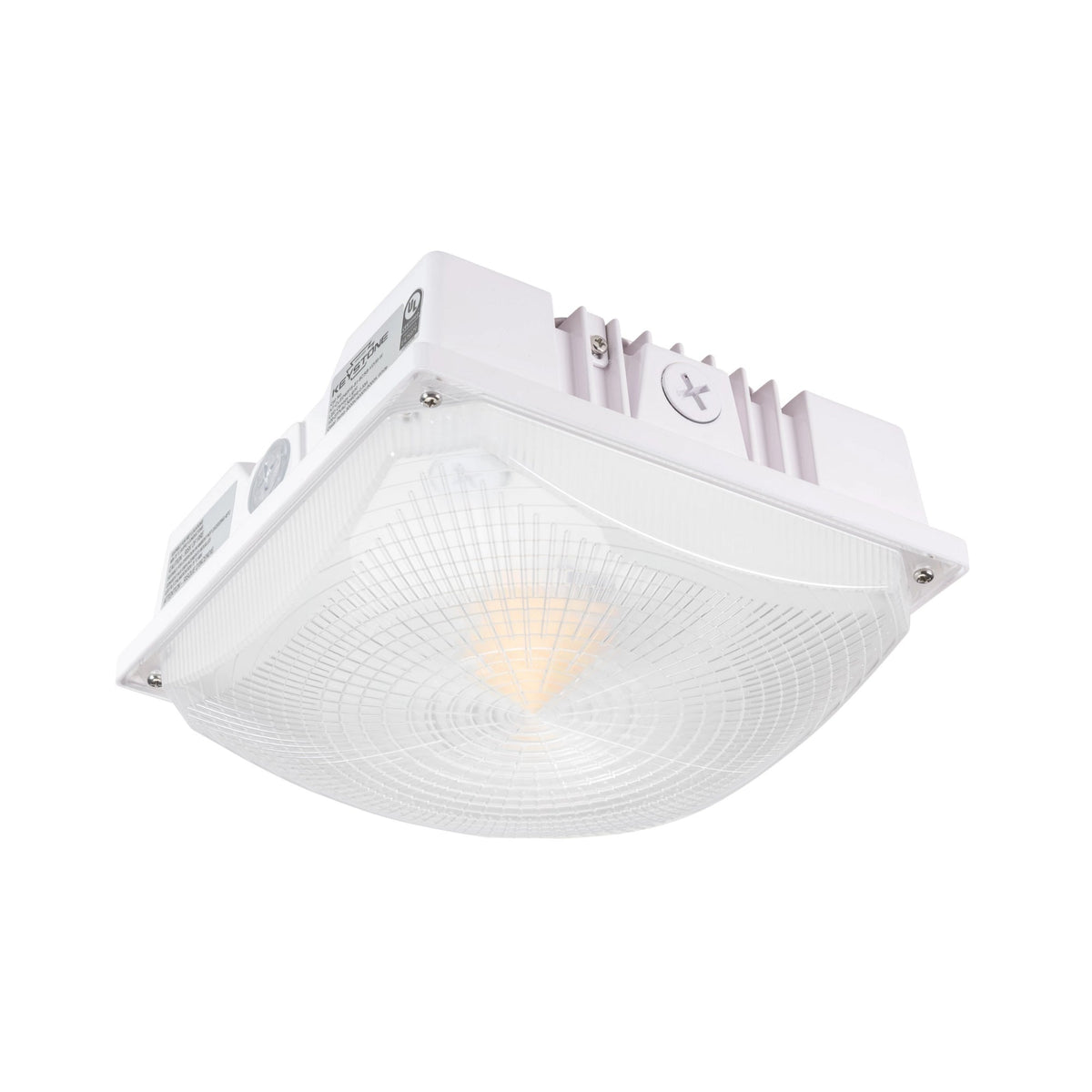

Keystone KT-CLED40PS-S1-8CSB-VDIM LED Canopy Light

Product Description

The Keystone KT-CLED40PS-S1-8CSB-VDIM is an LED canopy light suitable for parking garages and overhangs. It has selectable wattage and color temperature features. This fixture includes a built-in photocell and receptor for a microwave sensor. It operates effectively in wet locations with a wide beam angle of one hundred sixty degrees.

• Power selectable at forty watts, thirty watts, or twenty watts
• Color temperature selectable at three thousand Kelvin, four thousand Kelvin, or five thousand Kelvin
• Input voltage range of one hundred twenty to two hundred seventy-seven volts

Product Highlights

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-CLED40PS-S1-8CSB-VDIM

Technical Specifications

• Wattage: 40/30/20 selectable
• Technology: LED
• Beam Angle: 160 degrees
• Color Temperature: 3000K, 4000K, 5000K
• Dimmable: 0-10V
• CRI: 80+
• Initial Lumens: 5600/4200/2800 selectable
• Certifications: RoHS Compliant, DLC Listed
• Input Voltage: 120-277V
• Rated Hours: 100,000 hours
• Min Operating Temp: -40 degrees F
• Special Features: CCT selectable, Photocell installed, Wattage selectable, Wet location rated
• Length: 8.03 inches
• Width: 8.03 inches
• Height: 3.66 inches
