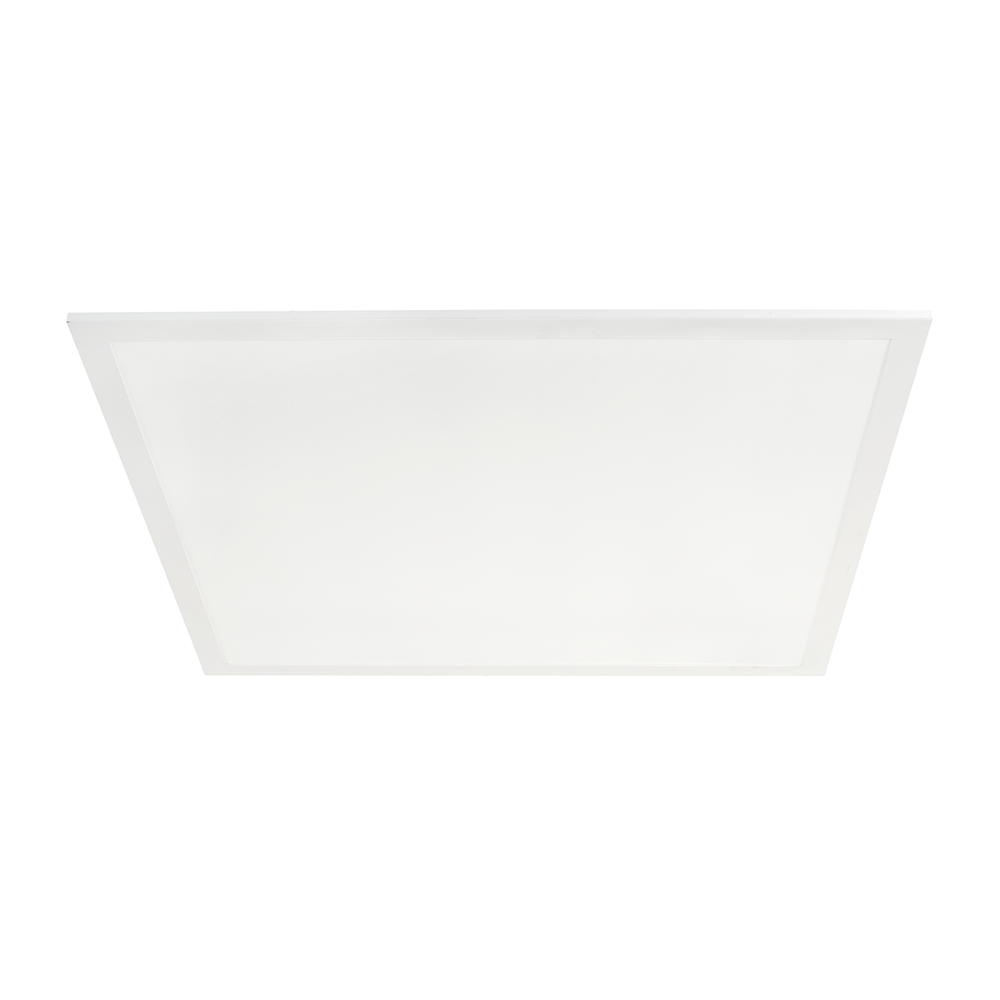

Keystone KT-BPLED35PS-22C-8CSA-VDIM LED Panel 35/ 30/ 20W 2x2

Product Description

The KEYSTONE KT-BPLED35PS-22C-8CSA-VDIM is a 2x2 LED panel featuring Power Select and Color Select technology. This LED flat panel delivers efficient illumination for offices, retail spaces, and healthcare facilities. It has a 120-277V input and a backlit design.

• Power Select
• Color Select
• 0-10V Dimming
• Backlit Design

Product Highlights

This 2x2 LED panel offers customized lighting solutions for diverse applications. Field-adjustable wattage and CCT to create the ideal environment.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-BPLED35PS-22C-8CSA-VDIM

Technical Specifications

• Watts: 35/ 30/ 20 W
• Lumens: 3,950 lm
• Color Temperature (CCT): 3500/ 4000/ 5000 K
• Nominal Size: 2x2
• Brand: Keystone
• Flat Panel Type: Back-Lit
• Manufacturer Part Number: KT-BPLED35PS-22C-8CSA-VDIM
• UPC: 843654156989
• Wattage: 35 Watts
• Input Voltage: 120-277V
• Dimmable: 0-10V
• Color Temperature: 3500K, 4000K, 5000K
• Rated Hours: 50,000 Hours
• Min Operating Temp: -4 Degrees F
• CRI: 80+
• Special Features: CCT Selectable, Wattage Selectable
• Length: 23.74"
• Width: 23.74"
• Height: 1.47"
• Efficacy (lm/W): Up to 130
• Operating Temp Range: -4 , 2017.04.15, 1999-2016
• Manufacturer: Keystone
