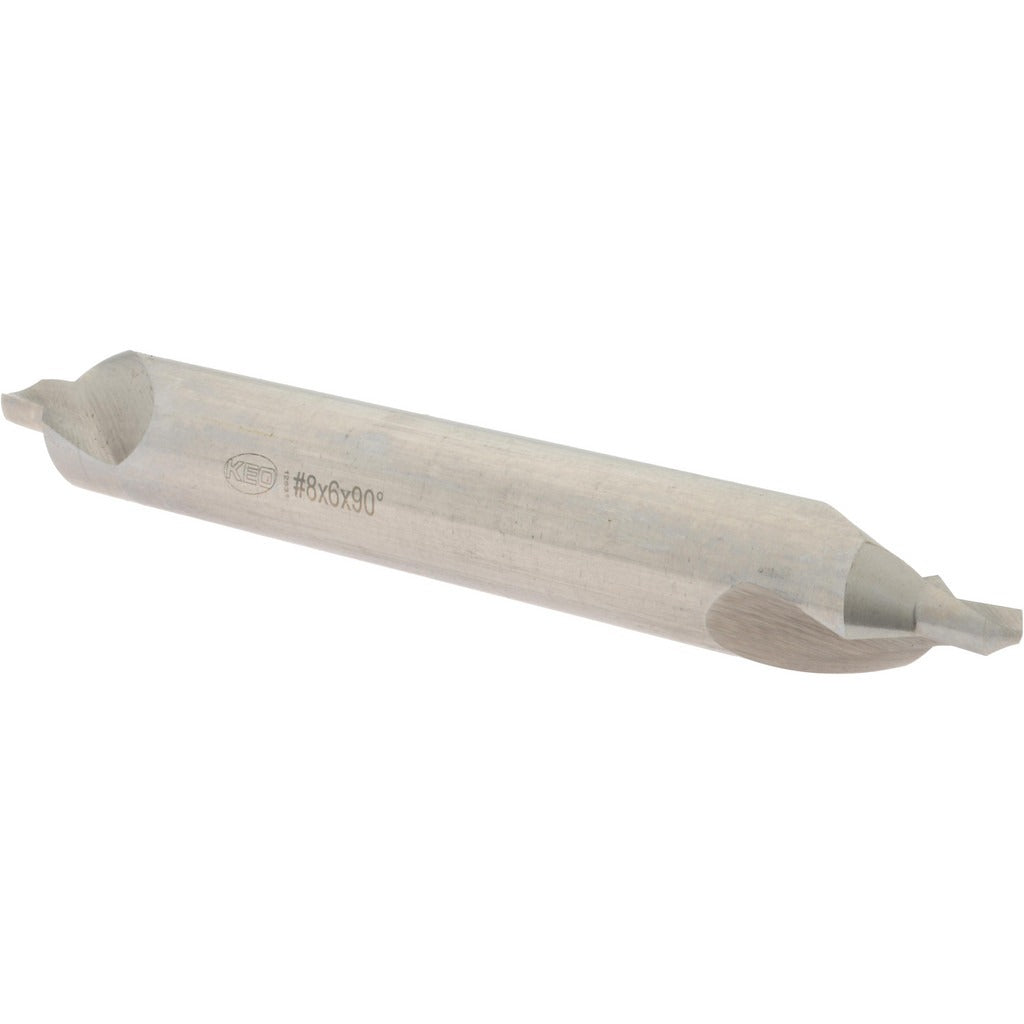

Keo 907-000-183 Combo Drill Countersink Size 8 Hss

Product Description

The KEO 907-000-183 is a combination drill and countersink designed to drill a pilot hole and form a countersink recess in a single pass. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers reliable performance across standard metalworking and fabrication applications. The tool features a 3/4 inch body diameter, a 5/16 inch drill point diameter, a 118-degree drill point angle, and a 90-degree included angle for countersinking. At 6 inches in overall length, it qualifies as a long-length tool and is suited for applications requiring extended reach. Right-hand cutting direction and a plain cutting edge style make it compatible with conventional drill press and CNC setups.

This combo drill countersink is intended for trade professionals and machinists working in metal fabrication, maintenance, and repair environments. The Size 8 trade designation and 3/4 inch body diameter suit it for medium-duty countersinking tasks where a screw head or fastener seat must be precisely formed. The double-end configuration extends tool life by providing two usable ends. It is not aircraft style and is not tapered, making it a straightforward general-purpose countersinking tool for shop and field use.

Key Features

• Combination drill and countersink completes piloting and countersinking in one operation
• High-speed steel construction for durability across ferrous and non-ferrous materials
• 118-degree drill point angle with 90-degree included countersink angle
• Double-end design extends usable tool life
• Long-length at 6 inches overall for extended reach applications
• Bright uncoated finish suitable for general-purpose shop use

Compatibility

Designed as a general-purpose combo drill countersink for use in standard drill press, lathe, or CNC spindle setups accepting a 3/4 inch body diameter tool.

Installation Notes

Installation and use should be performed by qualified machinists or trade professionals familiar with rotating cutting tools. Secure the workpiece firmly before operation and confirm spindle RPM is appropriate for the tool diameter and material being cut. Inspect both cutting ends for wear or chipping before each use. Follow applicable shop safety standards and wear appropriate eye protection whenever operating cutting tools.
