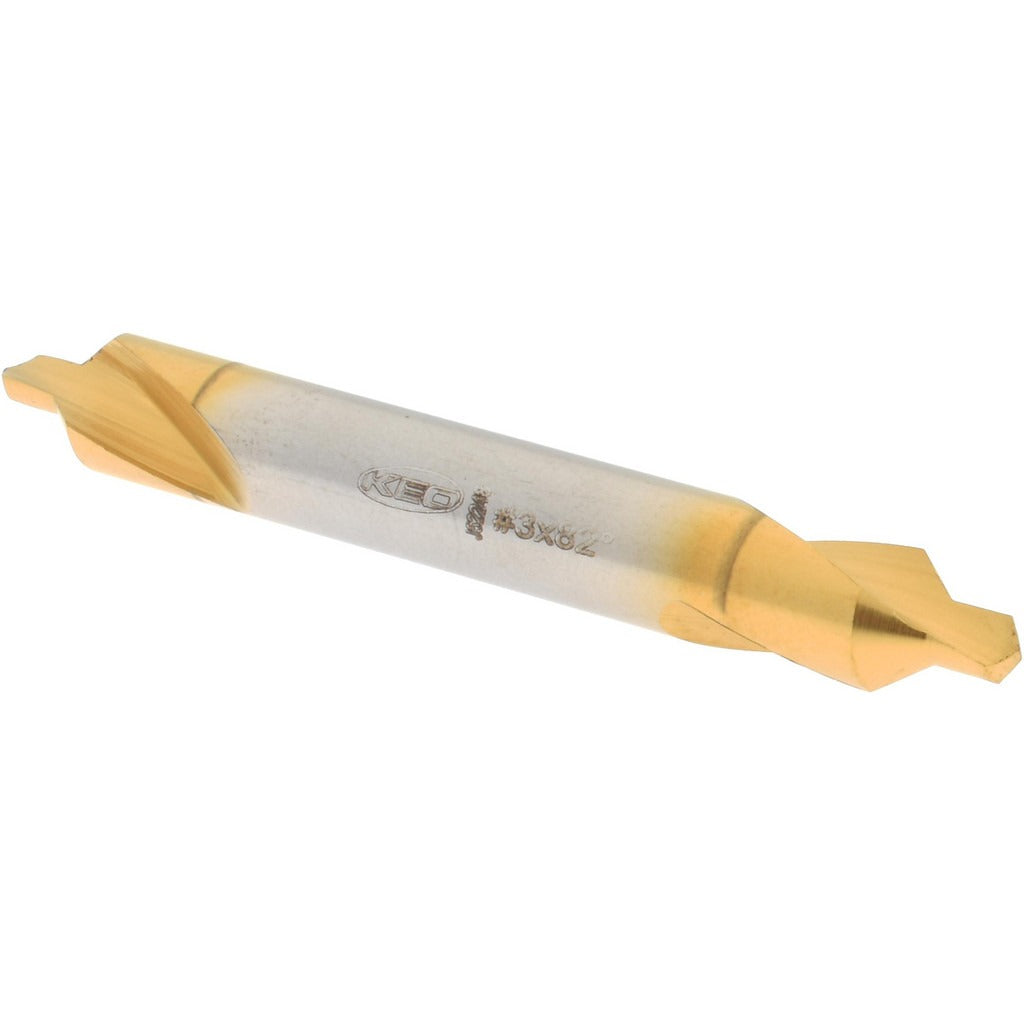

Keo 906-000-102 Combo Drill Countersink Size 3 Hss Tin

Product Description

The KEO 906-000-102 is a combination drill and countersink designed to drill a pilot hole and create a countersink seat in a single pass. Built from high-speed steel with a titanium nitride (TiN) coating, it delivers improved wear resistance and longer tool life compared to uncoated HSS. The body measures 1/4 inch in diameter with a 7/64 inch drill point diameter and a 7/64 inch drill point length. The included countersink angle is 82 degrees with a 118-degree drill point angle. At 2 inches overall length, it fits standard drill chucks on bench-top drill presses and hand drills. Machinists, pipefitters, and general fabricators use this tool when preparing holes for flat-head fasteners or deburring entry points.

This combo drill countersink is suited for use in metal fabrication shops, maintenance facilities, and light manufacturing environments. It handles countersinking operations on ferrous and non-ferrous materials where a clean, chamfered seat is required ahead of fastener installation. The right-hand cutting direction and plain cutting edge style make it compatible with standard drill press setups and handheld power drills. The double end type provides extended service before replacement is needed.

Key Features

• High-speed steel construction with titanium nitride coating for extended tool life
• Combined drill and countersink function completes pilot hole and seat in one operation
• 82-degree included countersink angle suits standard flat-head fastener applications
• 118-degree drill point angle for effective penetration in common shop materials
• Double end design provides two usable cutting ends per tool
• Right-hand cut compatible with standard drill press and handheld power drill operation

Compatibility

Designed as a standard combo drill countersink for use in drill presses and handheld power drills accepting 1/4 inch body diameter tooling.

Installation Notes

Installation and use of this tool should be performed by qualified machinists or trained tradespeople following standard shop safety practices. Secure the workpiece firmly before drilling and operate at an appropriate spindle speed for the material being cut. Always wear eye protection and secure loose clothing before engaging rotating tooling. Inspect the cutting edges before use and replace the tool if chipping or excessive wear is present.
