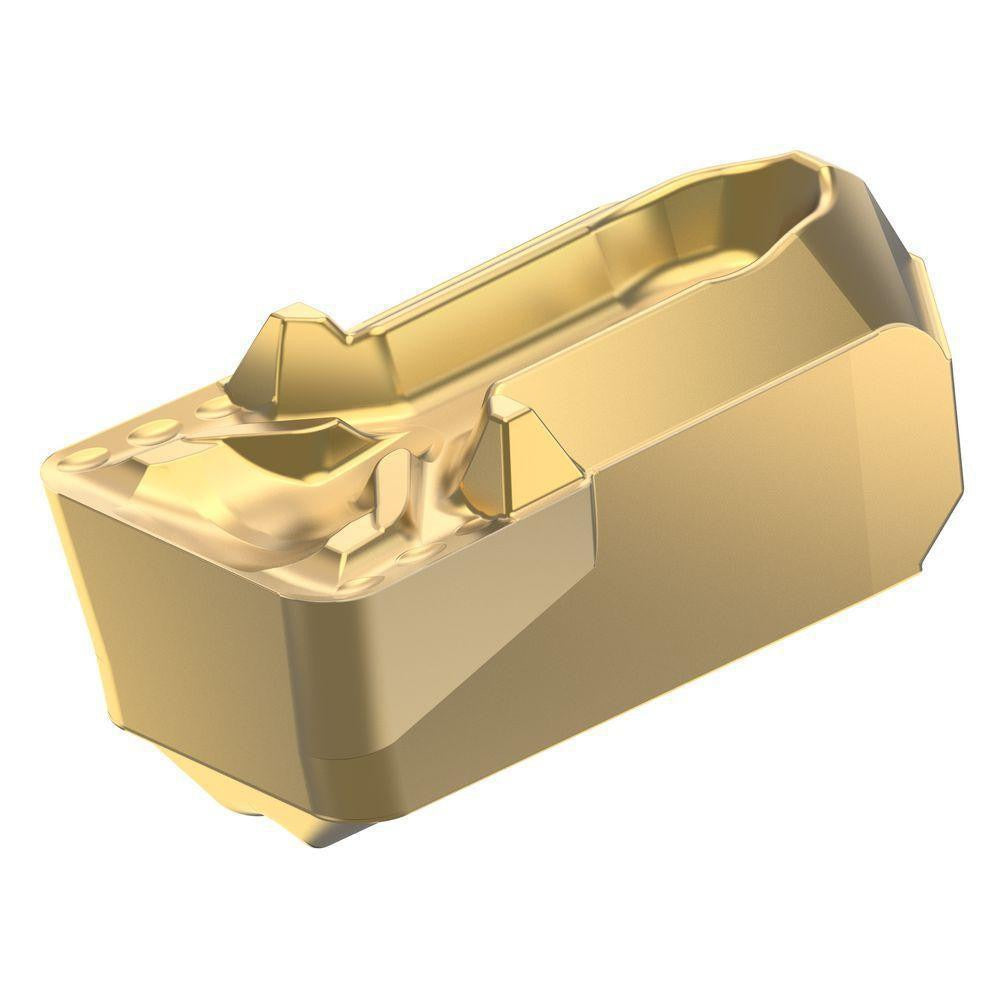

Kennametal 7096913 Carbide Grooving Insert 0.13 in

Product Description

The KENNAMETAL 7096913 is a carbide grooving insert designed for turning and grooving operations on CNC lathes and turning centers. Part of the Beyond Evolution series, this neutral-hand insert uses an AlTiN coating and a GUP chip breaker geometry to deliver controlled chip evacuation and extended tool life in a range of workpiece materials. The KCU10B grade carbide substrate is engineered for moderate to high cutting speeds. At 0.13 inches (3.31 mm) cutting width and an insert size code of 3, the 7096913 fits standard EG-U-GUP-Inch style holders and suits external grooving, face grooving, and parting applications.

This insert is suited for production turning environments where consistent groove width and finish quality are required across moderate to high volume runs. The positive rake angle reduces cutting forces and is appropriate for ferrous and non-ferrous materials. It is installed and indexed by licensed machinists and CNC operators in job shops, aerospace component machining, and general metalworking facilities. The clamp-style insert holding method ensures secure seating in compatible toolholders during aggressive interrupted or continuous grooving passes.

Key Features

• Carbide substrate with KCU10B grade for wear resistance and toughness balance
• AlTiN coating for extended tool life at elevated cutting temperatures
• GUP chip breaker promotes reliable chip control in grooving applications
• Positive rake geometry reduces cutting forces and heat generation
• Neutral hand orientation fits both left-hand and right-hand grooving setups
• Multi-use capable insert suitable for grooving, parting, and face grooving

Compatibility

Designed for use with EG-U-GUP-Inch style insert holders accepting insert size code 3. Consult the Beyond Evolution toolholder lineup for confirmed holder-to-insert pairings before installation.

Installation Notes

Installation is performed by qualified machinists following shop safety protocols and machine lockout/tagout procedures before tool changes. Ensure the toolholder pocket and clamp are clean and undamaged before seating the insert. Do not exceed the holder manufacturer's recommended clamping torque for the clamp screw. Verify insert seating and runout before resuming cutting operations.
