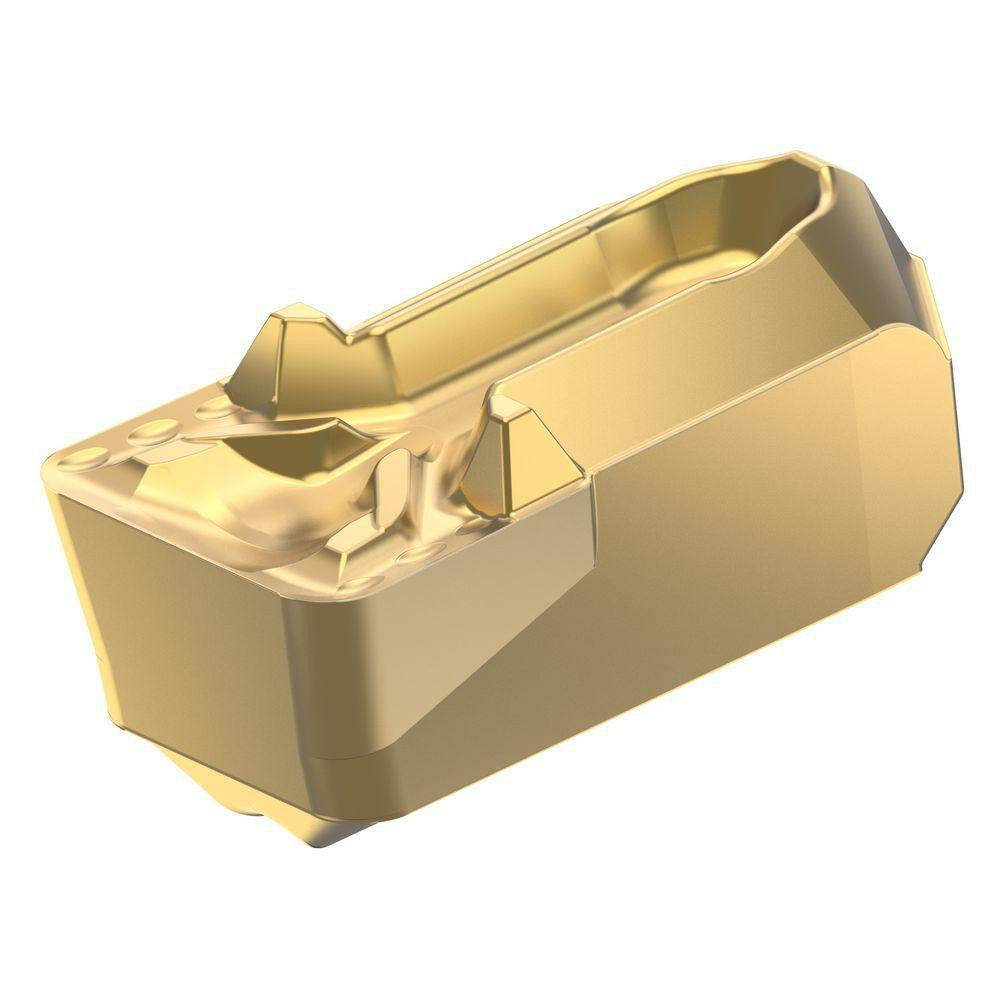

Kennametal 7096911 Eg Grooving Insert 0.123 in Carbide

Product Description

The KENNAMETAL 7096911 is a double-ended EG-style grooving insert designed for precision grooving and parting operations on CNC turning centers and lathes. Manufactured from carbide with a PVD-applied AlTiN coating, this insert delivers thermal resistance and edge wear protection in demanding cutting environments. The insert carries a 0.123-inch cutting width and a maximum depth of cut of 0.087 inches, making it suited for shallow, accurate groove profiles. Grade KCU10B from the Beyond Evolution series targets interrupted cuts and difficult-to-machine alloys. Installation and indexing are handled by clamp-style insert holding, and both cutting edges are usable, reducing per-edge tooling cost.

This insert is used in production turning applications where groove width consistency and surface finish are critical. Typical applications include external and internal grooving on ferrous and non-ferrous workpieces in aerospace, automotive, and general machining shops. The neutral hand orientation makes it compatible with standard straight grooving toolholders. The GUP chip breaker geometry promotes positive rake cutting action and chip control in shallow groove passes up to 0.087 inches deep.

Key Features

• EG insert style with Size Code 3 for clamp-style toolholder compatibility
• Double-ended design provides two usable cutting edges per insert
• AlTiN PVD coating for elevated thermal resistance and extended tool life
• KCU10B grade from the Beyond Evolution series targets interrupted and difficult-to-machine materials
• GUP chip breaker with positive rake geometry for improved chip control
• 0.0080-inch corner radius minimizes stress concentration at groove corners

Compatibility

Designed as an OEM-style replacement insert for clamp-style EG grooving toolholders accepting Size 3 inserts in standard CNC turning and lathe applications.

Installation Notes

Grooving inserts are installed and indexed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing inserts. Use the correct torque wrench and clamp hardware specified by the toolholder manufacturer to secure the insert. Inspect the insert pocket and clamp for wear or debris before seating a new edge to avoid edge chipping on first contact.
