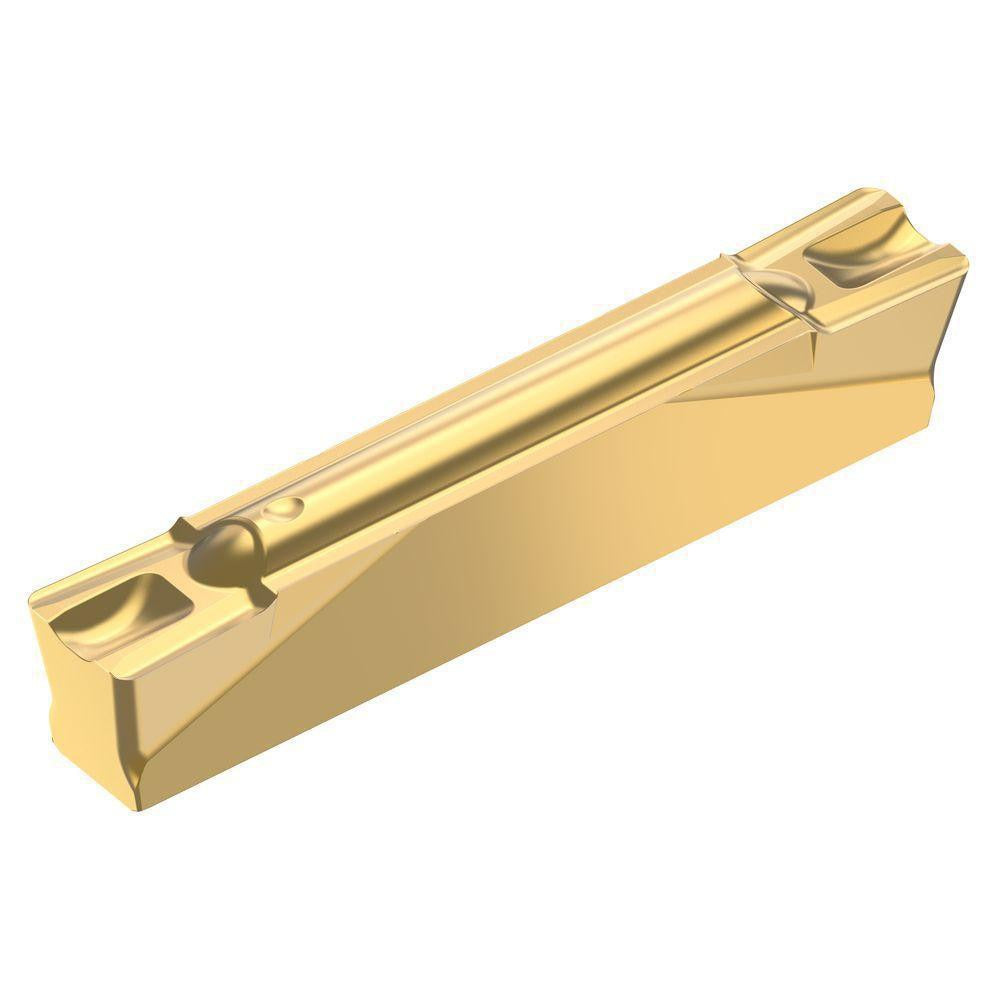

Kennametal 7096835 Grooving Insert Carbide 0.315 in

Product Description

The KENNAMETAL 7096835 is a carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Manufactured in the A4R-P-GMP style with a neutral hand orientation, this insert features a 0.315-inch (8.00 mm) cutting width and a 0.1575-inch (4.00 mm) corner radius. The GMP chip breaker geometry promotes controlled chip formation during grooving passes. An AlTiN coating provides thermal resistance and extended tool life in demanding cutting conditions. Licensed machinists and toolroom technicians working in production or job-shop environments will find this insert well-suited to interrupted-cut and continuous-groove applications.

This insert is intended for use in external grooving tool holders and systems compatible with Series A4 insert seats, size 8. It is appropriate for machining a range of workpiece materials where positive rake geometry is advantageous, including steel and cast alloys. The clamp-style insert holding method ensures secure seating during high-feed passes. It is suited to both light production runs and higher-volume turning applications where consistent groove width and surface finish are required.

Key Features

• Carbide substrate with AlTiN coating for thermal and wear resistance
• 0.315-inch (8.00 mm) cutting width for precise groove sizing
• GMP chip breaker geometry for reliable chip control
• Positive rake angle reduces cutting forces and heat generation
• Neutral hand orientation fits standard neutral-hand A4 series tool holders
• Multi-use insert suitable for grooving and related turning operations

Compatibility

Designed for use with Series A4 grooving tool holders and systems accepting size 8 insert seats with clamp-style holding. Confirm holder compatibility with the A4R-P-GMP insert style before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine before changing inserts. Seat the insert fully against the pocket walls and verify the clamp is torqued according to the tool holder manufacturer specifications before starting a cut. Inspect the insert seat for chips or debris that could affect seating and groove accuracy.
