Kennametal 7093817 Dcmt Turning Insert Altin Carbide

Product Description

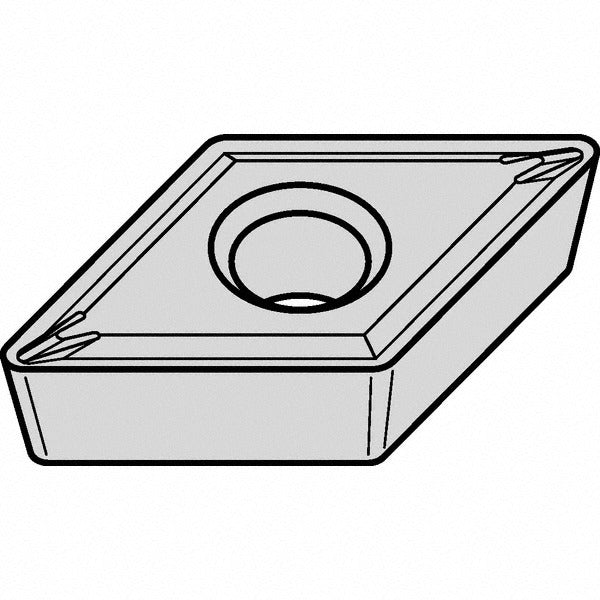

The KENNAMETAL 7093817 is a DCMT-style diamond-shaped carbide turning insert designed for precision external and internal turning operations on CNC and manual lathes. It features an AlTiN (aluminum titanium nitride) coating applied over a KCU10B carbide substrate, providing enhanced heat resistance and extended tool life in interrupted cuts and general-purpose turning. The insert has a 55-degree included angle, a 7-degree relief angle, and a 0.0157-inch (0.40 mm) corner radius with the LF chip breaker geometry. Two cutting edges are available per insert. Installation is performed by qualified machinists and CNC operators.

This insert is suited for turning ferrous and non-ferrous materials in both light finishing and moderate roughing passes. The neutral hand orientation makes it adaptable across a wide range of toolholders and boring bars. The LF chip breaker geometry is optimized for light finishing cuts requiring tight tolerances and smooth surface finish. The DCMT form factor is a standard insert style commonly used in production turning, toolroom work, and maintenance machining environments.

Key Features

• DCMT insert style with 55-degree diamond shape for precise profiling and turning
• AlTiN coating on KCU10B carbide grade for heat resistance and wear life
• LF chip breaker geometry designed for light finishing applications
• 0.0157-inch (0.40 mm) corner radius for fine detail and close-tolerance work
• Neutral hand orientation for use in a broad range of compatible toolholders
• Two usable cutting edges per insert for cost efficiency

Compatibility

Designed as an OEM-style replacement turning insert for DCMT-compatible toolholders and boring bar systems accepting inserts with a size code of 2151, clearance code C, and tolerance code M.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine powered down and the spindle locked before indexing or replacing the insert. Use the appropriate torx or hex key to the toolholder manufacturer's recommended procedure when seating the insert. Inspect the insert pocket and clamping screw for wear or damage before installing a new insert. Follow applicable shop safety procedures and machine guarding requirements throughout the process.
