Kennametal 7093504 Snmg Turning Insert Altin Carbide

Product Description

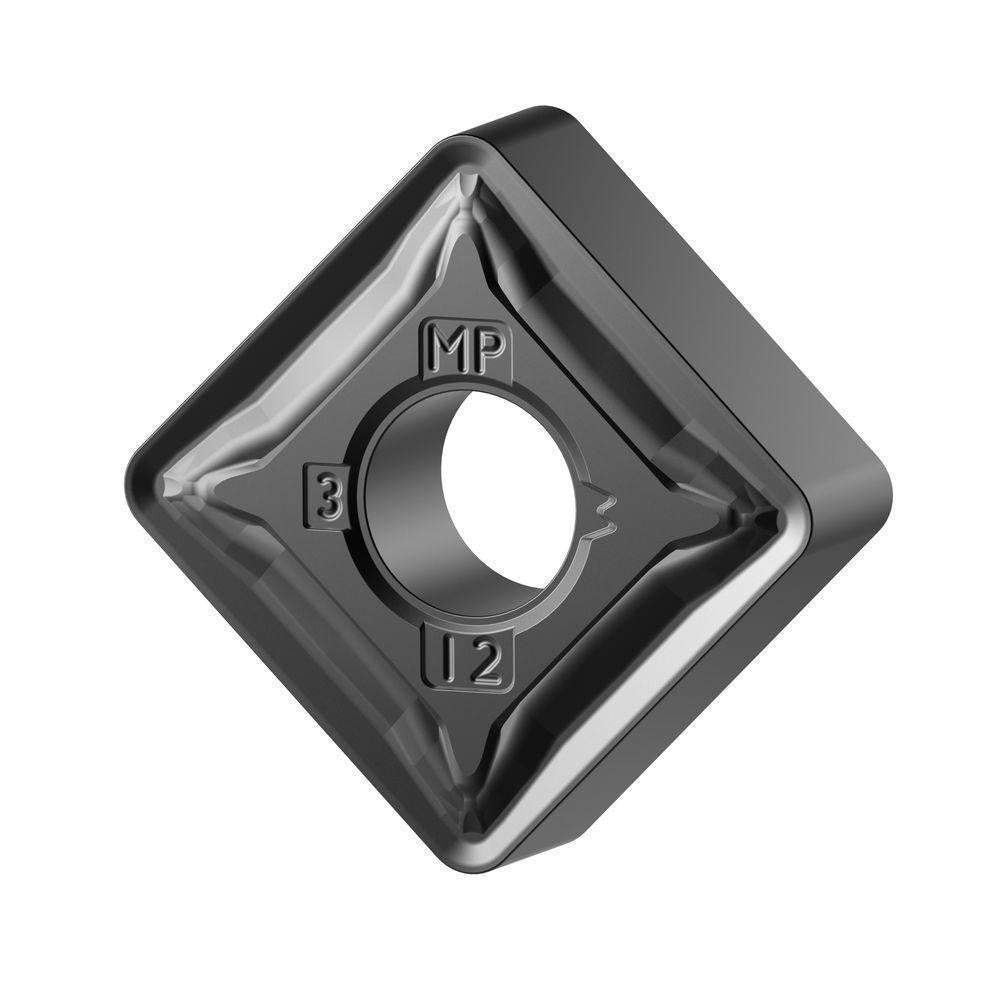

The KENNAMETAL 7093504 is an SNMG-style indexable turning insert designed for metal cutting operations on CNC and manual lathes. It features a square insert shape with a 90-degree included angle, a 0.80mm (0.0313 inch) corner radius, and a neutral hand orientation. The substrate is solid carbide with an AlTiN (aluminum titanium nitride) coating applied under the KCU10B manufacturer grade. AlTiN coating provides elevated heat resistance and extended tool life in dry or semi-dry cutting conditions. With 8 usable cutting edges per insert, this grade is suited for productive turning of steel and other ferrous materials where a balance of toughness and wear resistance is required.

This insert is used in external and internal turning applications across general-purpose machining environments. It fits SNMG-style toolholders commonly found in production turning, job shop, and maintenance machining setups. The SNMG geometry with the MP chip breaker designation is optimized for medium-depth passes and controlled chip formation on steel and similar workpiece materials. It is installed by machinists, CNC operators, and toolroom technicians in both production and short-run applications.

Key Features

• SNMG insert style with square shape and 90-degree included angle for versatile turning applications
• AlTiN coating under KCU10B grade provides heat and wear resistance in dry and semi-dry cutting
• 8 cutting edges per insert reduces per-edge tooling cost
• MP chip breaker geometry supports controlled chip formation during medium turning passes
• Neutral hand orientation fits a wide range of standard SNMG toolholders
• Solid carbide substrate delivers rigidity and consistent edge performance

Compatibility

Designed as a direct-fit replacement for SNMG-style indexable toolholders accepting inserts with size code 432, clearance code N, tolerance code M, and a 3/16 inch insert thickness.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Power down and lock out the machine spindle before indexing or replacing the insert. Use the manufacturer-specified torque wrench and clamping hardware for the toolholder to secure the insert properly. Inspect the toolholder pocket and clamping screw for wear or damage before seating a new insert.
