Kennametal 7093260 Snmg Turning Insert Altin Carbide

Product Description

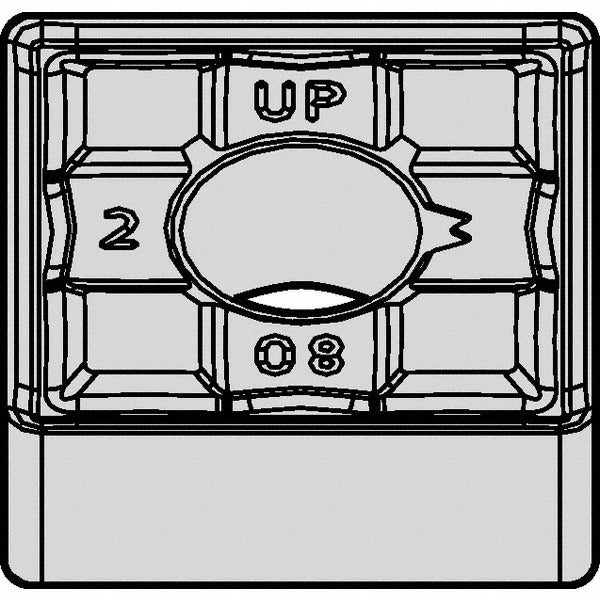

The KENNAMETAL 7093260 is a square SNMG-style indexable carbide turning insert designed for external and internal turning operations on CNC and manual lathes. Manufactured in grade KCU10B with an AlTiN (aluminum titanium nitride) coating, this insert delivers thermal resistance and wear performance across a range of workpiece materials. The insert measures 0.1875 inches in thickness and width, with a 0.0313 inch (1/32 inch) corner radius and a 90-degree included angle. The neutral hand orientation makes it compatible with both left- and right-hand toolholders. With 8 usable cutting edges per insert, it provides extended tooling economy for production environments.

This insert is suited for medium to finish turning applications in job shop and production machining settings. The SNMG insert style fits standard SNMG-compatible toolholders used across a wide range of CNC turning centers and manual lathes. The UP chip breaker geometry supports controlled chip formation in general turning scenarios. Licensed machinists and CNC operators handling steel, stainless, and similar workpiece materials will find the KCU10B grade appropriate for moderate cutting conditions. The Tolerance Code M and Clearance Code N conform to standard ISO insert designation practices.

Key Features

• SNMG insert style with neutral hand orientation fits standard SNMG toolholders
• KCU10B carbide grade with AlTiN coating for thermal and wear resistance
• 8 indexable cutting edges per insert for extended tool life economy
• UP chip breaker geometry for controlled chip formation in general turning
• 0.0313 inch corner radius for medium to finish turning surface requirements
• ISO Tolerance Code M and Clearance Code N for consistent dimensional fit

Compatibility

Designed as a direct-fit replacement for standard SNMG 432-style indexable turning insert seats on SNMG-compatible toolholders.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench and clamping hardware specified by the toolholder manufacturer when seating the insert. Inspect the insert pocket and clamp for wear or debris before seating a new insert to ensure proper seating and edge stability.
