Kennametal 7090446 Cnmg Turning Insert Altin Carbide

Product Description

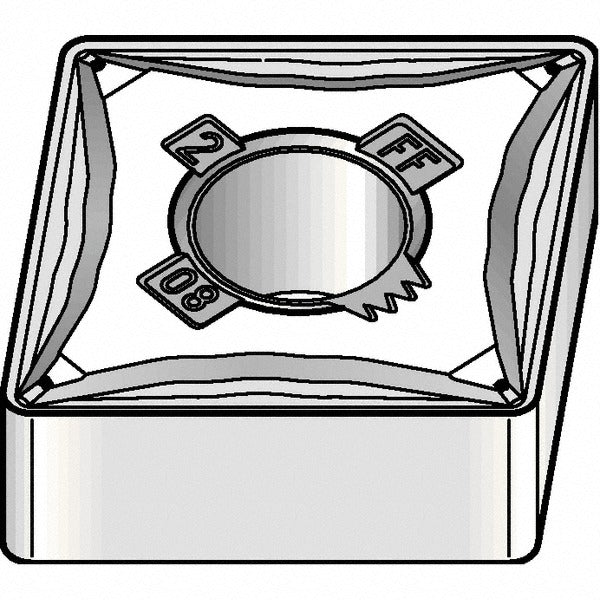

The KENNAMETAL 7090446 is a CNMG-style indexable turning insert designed for precision metal cutting on CNC lathes and turning centers. Manufactured from carbide with an AlTiN (aluminum titanium nitride) coating and Manufacturer Grade KCU10B, this insert delivers thermal resistance and edge durability across a range of turning applications. The diamond-shaped insert geometry (80-degree included angle) offers a strong cutting edge, while the 0.40 mm (0.0157 inch) corner radius supports fine finishing and semi-finishing passes. Installed by machinists and CNC operators, this insert fits CNMG-compatible toolholders with a neutral hand orientation.

This insert is suited for external turning operations on steel, stainless, and similar materials in both job shop and production environments. The FF chip breaker geometry promotes chip control during moderate to light cuts. With four cutting edges per insert, it provides extended tool life per unit. Typical applications include facing, profiling, and straight turning on horizontal and vertical turning centers where consistent surface finish and dimensional accuracy are required.

Key Features

• AlTiN coating with KCU10B grade carbide substrate for thermal resistance and wear protection
• Diamond insert shape (80-degree included angle) for strong, versatile cutting geometry
• 0.40 mm corner radius supports finishing and semi-finishing operations
• Four usable cutting edges per insert maximize value per unit
• FF chip breaker promotes reliable chip control at moderate feeds
• Neutral hand orientation fits a wide range of CNMG toolholders

Compatibility

Designed as a direct-fit replacement for CNMG-style indexable toolholders accepting a 1/2-inch inscribed circle insert with Tolerance Code M and Clearance Code N.

Installation Notes

Installation is performed by qualified machinists or CNC toolroom personnel. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torque wrench and insert-clamping screws specified by the toolholder manufacturer - do not overtighten by hand. Inspect the toolholder pocket and clamping mechanism for wear or debris before seating a new insert.
