Kennametal 6388686 Carbide Replaceable Tip Drill 10.4mm

Product Description

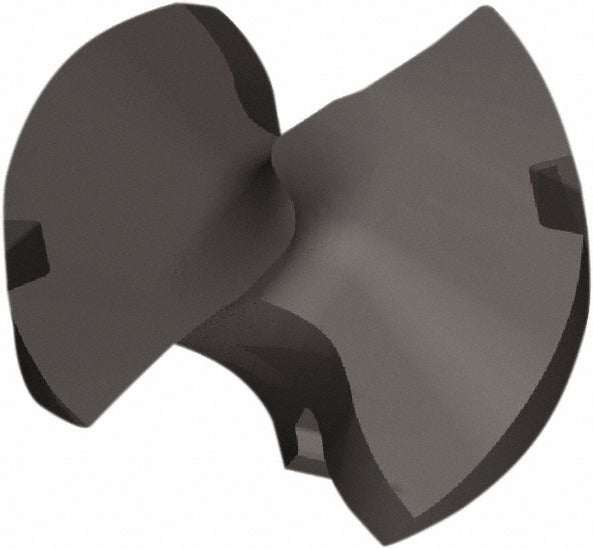

The KENNAMETAL 6388686 is a replaceable-tip carbide drill designed for high-productivity hole-making in steel and cast iron. Built around the KTFS series platform, the drill accepts a solid carbide KTFSS10400HPGM tip in grade KCP15A with an HPG insert geometry and an AlTiN PVD coating. The tip seats in a J-size insert seat and is held by a clamp mechanism. Cutting diameter is 10.4mm (0.4094 inches). The AlTiN finish provides thermal resistance during dry or minimal-coolant drilling cycles. Two helical flutes with a regular spiral promote chip evacuation in medium-to-deep holes.

This tool is suited for production drilling in ferrous workpiece materials, specifically steel (ISO material code P) and cast iron (ISO material code K). Typical applications include standard through-hole drilling, drilling on inclined exit surfaces, and drilling through stacked plates. The HPG geometry is optimized for these scenarios where entry and exit conditions vary. It is installed by machinists and tool-room technicians in CNC machining centers and drill presses where the replaceable-tip system reduces tooling changeover time compared to solid-carbide drills.

Key Features

• Solid carbide KCP15A grade tip with fine-grain substrate for edge toughness in ferrous materials
• AlTiN PVD coating for thermal and oxidation resistance in dry and semi-dry cutting
• HPG insert geometry supports drilling on inclined exits and stacked-plate configurations
• 2-flute helical design with 2-margin configuration promotes chip flow and hole straightness
• J-size clamp-held insert seat enables fast tip replacement without removing the drill body
• Regular spiral and standard point type provide consistent entry across common steel and cast iron grades

Compatibility

Designed as an OEM-style replaceable tip for KTFS series drill bodies accepting a J-size insert seat. Intended for use with workpiece materials classified under ISO P (steel) and ISO K (cast iron).

Installation Notes

Replaceable-tip drills of this type are installed and serviced by machinists following the drill body manufacturer's clamping torque and seating procedures. Ensure the drill body bore and seating surface are clean and free of chips before inserting the tip. Power down and lock out the spindle before any tip change. Do not exceed the recommended cutting parameters for the KCP15A grade, and verify coolant-through compatibility with the drill body, as this tip does not include internal coolant channels.
