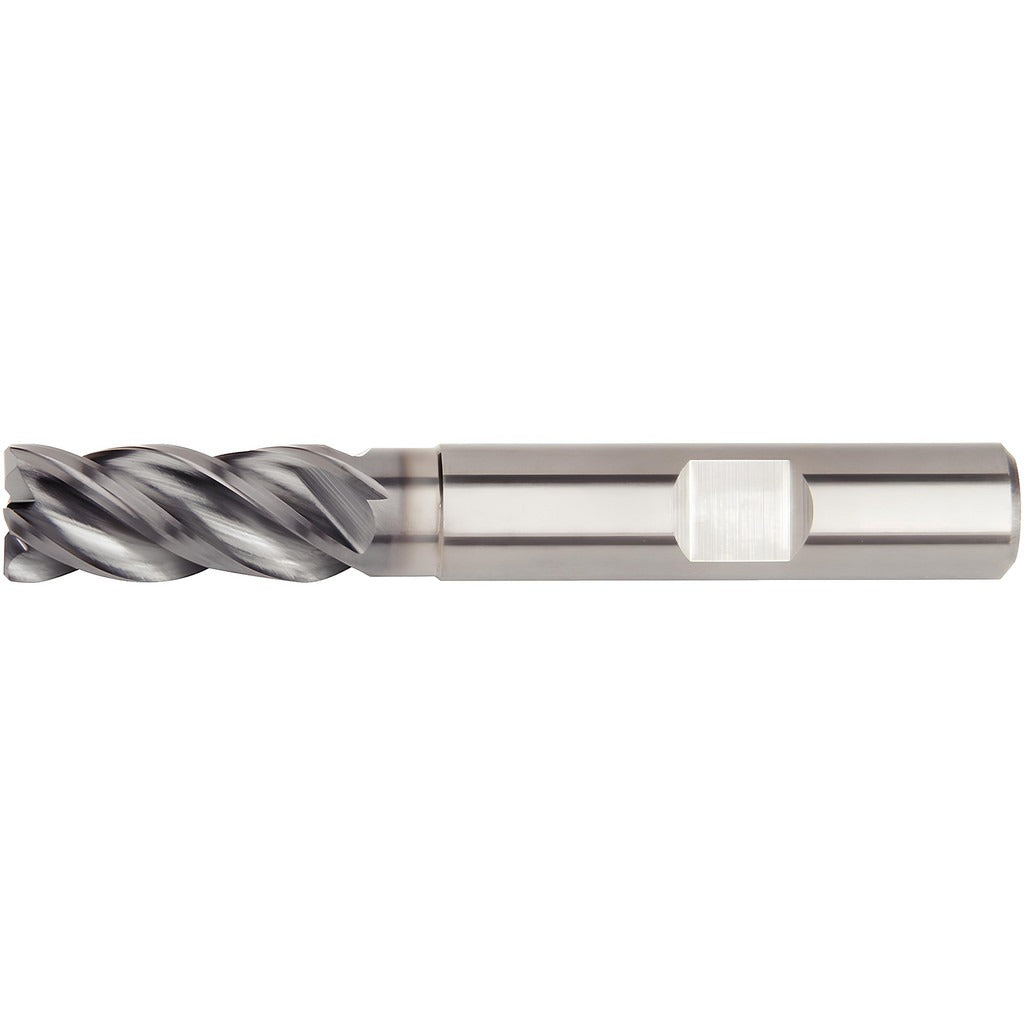

Kennametal 6130740 Corner Chamfer End Mill 4mm Solid Carbide

Product Description

The KENNAMETAL 6130740 is a solid carbide corner chamfer end mill designed for precision metal removal in demanding machining applications. Built in the UADE series, this single-end tool features a 4.00 mm mill diameter, a 4-flute helical configuration with a 38-degree medium helix, and a 0.40 mm chamfer width at a 45-degree chamfer angle. The AlTiN PVD coating provides thermal resistance and extended tool life when cutting ferrous and hard materials. Centercutting geometry allows the tool to plunge directly into the workpiece. It is sized for CNC machining centers and multi-axis mills where tight tolerances and clean chamfered edges are required.

This end mill is suited for use on steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Rated for roughing and finishing operations, it supports shouldering, slotting, ramp-down entry, helical interpolation, drill mill use, and plunging and recessing. The extended-reach neck, with a 3.76 mm neck diameter and 16.00 mm reach length, allows access in deeper pockets or stepped features without tool deflection. The 6.00 mm straight-cylindrical shank fits standard ER and shrink-fit collet systems commonly used in precision machining environments.

Key Features

• Solid carbide construction, material grade KCPM15, for rigidity and wear resistance
• AlTiN PVD coating for high-heat resistance in ferrous and hard-material cutting
• 4-flute, right-hand cut, right-hand flute helical geometry at 38 degrees
• 45-degree chamfer angle with 0.40 mm chamfer width for consistent edge preparation
• Centercutting design supports plunging, helical interpolation, and ramp-down entry
• Extended-reach neck (16.00 mm reach) enables access in deep pockets and stepped bores
• Variable index fluting reduces harmonic chatter during aggressive cuts

Compatibility

Designed for use on steel, stainless steel, cast iron, superalloys, titanium, and hard materials (ISO material codes P, M, K, S, H). Cataloged under KENNAMETAL series UADE with manufacturers catalog number UADE0400A4BV.

Installation Notes

Installation is performed by machinists on CNC milling equipment. Verify spindle runout and collet condition before seating the 6.00 mm shank to maintain diameter tolerance. Power down and lock out the machine before tool changes, following facility lockout/tagout procedures. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and depth of cut.
