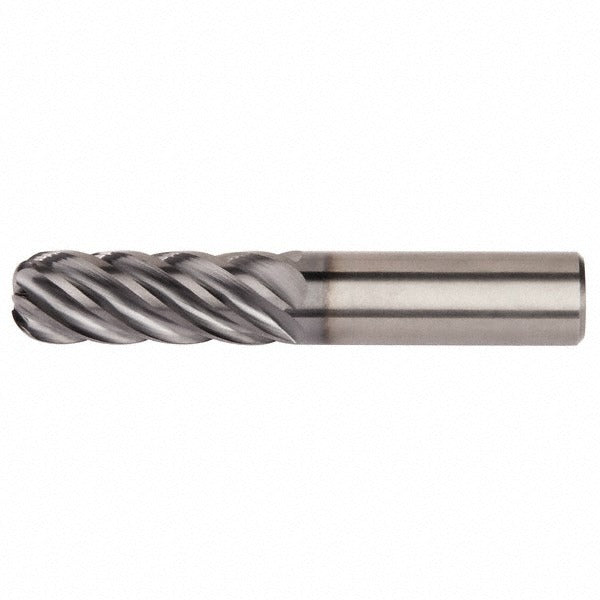

Kennametal 6113083 Corner Radius End Mill 6 Flute Altin

Product Description

The KENNAMETAL 6113083 is a solid carbide corner radius end mill engineered for high-performance finishing operations in demanding materials. Part of the UJDE series, this single-end, center-cutting tool features a 0.5 inch mill diameter, 1 inch length of cut, and a 0.12 inch corner radius that reduces stress concentrations at part edges. The 6-flute, close-pitch geometry with a high helix spiral flute is designed to maximize material removal rates and surface finish quality in hardened steels and difficult alloys. The AlTiN PVD coating provides elevated heat resistance and extended tool life at high cutting speeds.

This end mill is intended for finishing applications in steel, stainless steel, superalloys, titanium, and hard materials. The straight-cylindrical shank mounts directly into standard end mill toolholders. The short-length, high-flute-count design makes it well suited for close-tolerance finishing passes on machined components where edge integrity and surface finish are critical. It is used in CNC milling operations across aerospace, die and mold, and general precision machining environments.

Key Features

• Solid carbide submicron-grade construction for rigidity and wear resistance in hard materials
• AlTiN PVD coating for high-temperature performance in steel, stainless steel, superalloys, and titanium
• 0.12 inch corner radius reduces edge chipping and improves surface finish at part radii
• 6-flute close-pitch spiral geometry optimized for finishing cuts
• High helix angle promotes efficient chip evacuation and smooth cutting action
• Center-cutting design allows plunge entry in addition to peripheral milling

Compatibility

Designed for use with standard end mill toolholders accepting a 0.5 inch straight-cylindrical shank. Compatible primary workpiece materials include steel, stainless steel, superalloys, titanium, and hard materials per KENNAMETAL material codes P, M, S, and H.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the toolholder is clean and free of debris before mounting. Secure the shank to the specified clamping torque for the toolholder type in use per the toolholder manufacturer guidelines. Verify runout at the tool tip after installation before commencing cutting operations.
