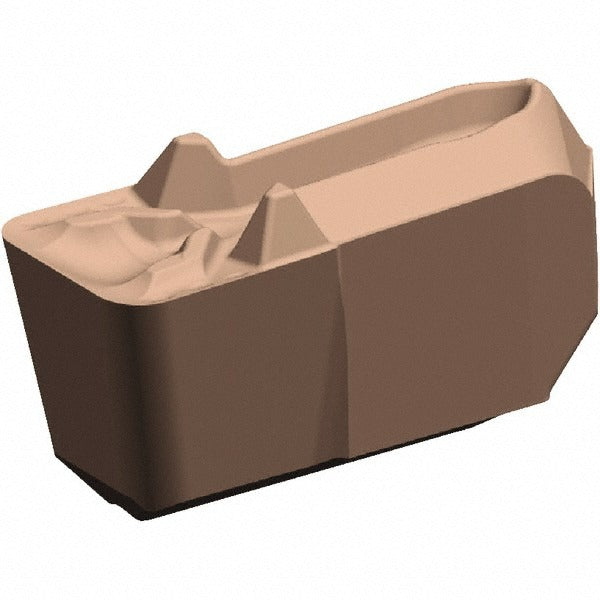

Kennametal 6012710 Grooving Insert KCU10 2.39mm Carbide

Product Description

The KENNAMETAL 6012710 is a solid carbide grooving insert designed for precision external grooving operations on CNC turning centers and lathes. Built to the Beyond Evolution series standard, this insert carries the EG-P2GUP geometry with a KCU10 grade and an AlTiN coating applied via PVD process. It features a 2.39 mm cutting width and a maximum depth of cut of 1.74 mm, making it well-suited for tight, controlled groove profiles. The GUP chip breaker promotes positive chip control, and the 22-degree rake angle supports efficient cutting action on a range of workpiece materials. Licensed machinists and CNC operators in production and job-shop environments rely on this insert for consistent, repeatable grooving performance.

This insert is intended for use in compatible EG-P style toolholders on CNC lathes and turning centers handling metric grooving applications. The neutral hand orientation allows straightforward mounting in standard EG-P toolholder seats. With an insert size designation of 2 and a cutting height of 3.25 mm, it fits toolholder pockets designed to that specification. It is a single-use, non-multi-use insert intended for replacement after wear rather than reconditioning.

Key Features

• KCU10 solid carbide grade with PVD-applied AlTiN coating for wear and heat resistance
• 2.39 mm cutting width with maximum depth of cut of 1.74 mm
• GUP chip breaker geometry for positive chip control during grooving
• 22-degree positive rake angle reduces cutting forces
• Corner radius of 0.20 mm for controlled groove edge definition
• Beyond Evolution series construction for dimensional consistency insert-to-insert

Compatibility

Designed for use in EG-P style grooving toolholders compatible with insert size 2 seats. Confirm toolholder specification against the Beyond Evolution series EG-P insert seating requirements before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified CNC machinist or toolroom technician. Ensure the machine spindle is fully stopped and the turret is in a safe index position before changing inserts. Use the correct torx or clamping screw driver as specified by the toolholder manufacturer to achieve proper seating torque without over-tightening. Inspect the toolholder pocket for chips or debris before seating the new insert to prevent seating errors or premature edge failure.
