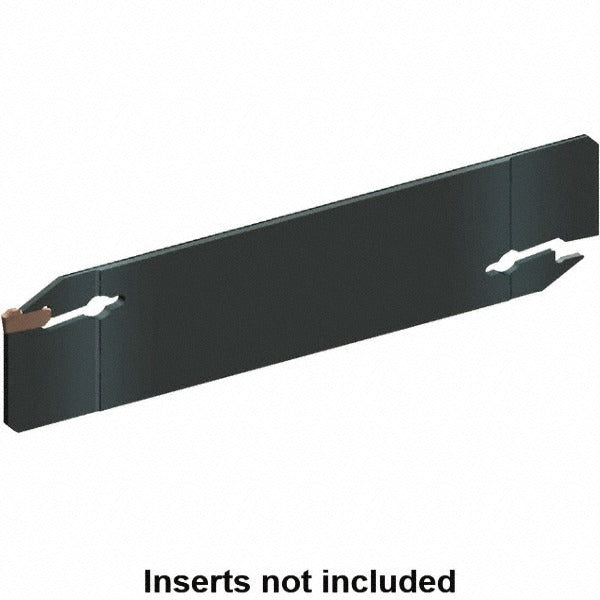

Kennametal 5941708 Evbs Indexable Cutoff Blade

Product Description

The KENNAMETAL 5941708 is an EVBS-style double end neutral indexable cutoff blade designed for parting and grooving operations on CNC lathes and turning centers. It measures 21.45 mm (0.844 inches) in blade height, 1.4 mm (0.055 inches) in blade width, and 110.4 mm (4.346 inches) in overall length. The blade uses a clamp-style insert holding method and accepts EG0140M1BP02 inserts with a 1.4 mm insert width and a 1B insert seat size. Part of the Beyond Evolution series, it provides a maximum depth of cut of 15 mm (0.591 inches). This tool is installed by machinists and CNC turning specialists in production and job shop environments.

The 5941708 cutoff blade is suited for residential production turning, job shops, and high-volume CNC lathe operations where precise parting and grooving are required. The double end configuration allows the blade to be flipped for extended service life, and the neutral cutting direction makes it compatible with standard right-hand turning setups. It is appropriate for use on materials commonly encountered in general metalworking applications where consistent groove width and clean cutoff geometry are priorities.

Key Features

• Double end design extends blade service life by allowing the tool to be reversed
• Neutral cutting direction suits standard right-hand CNC turning setups
• Clamp-style insert retention provides secure, repeatable insert positioning
• Accepts EG0140M1BP02 inserts with 1B insert seat size and 1.4 mm insert width
• Maximum depth of cut of 15 mm (0.591 inches) supports deep parting operations
• Part of the Beyond Evolution series for consistent dimensional and performance standards

Compatibility

Designed as an OEM-style replacement or direct-use cutoff blade for CNC lathes and turning centers that accept EVBS-style blade holders with a 1B insert seat and EG0140M1BP02 inserts within the Beyond Evolution series tooling system.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be fully stopped and the machine locked out before installing or changing the blade or insert. Verify that the blade holder, clamp, and insert seat are free of chips and debris before seating the blade. Follow the toolholder manufacturer torque and clamping specifications for the specific blade holder used with this blade.
