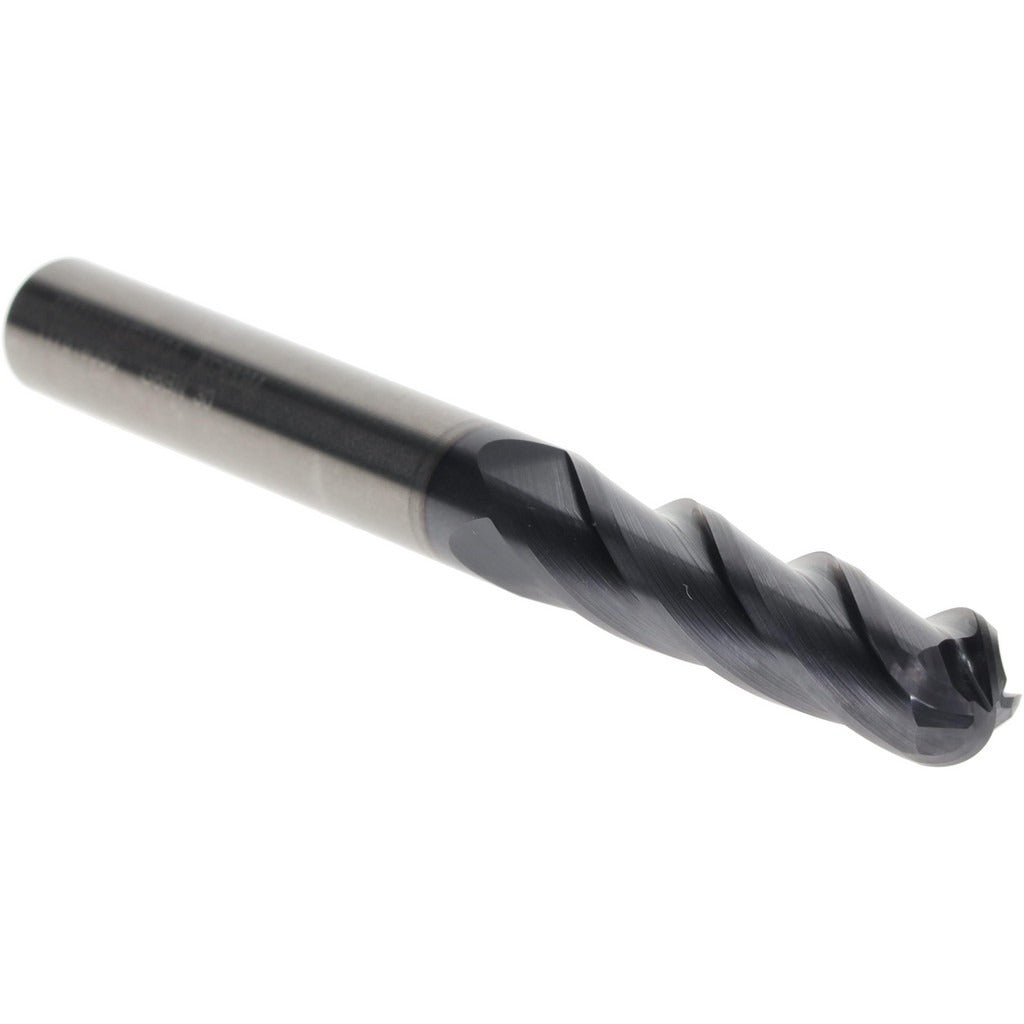

Kennametal 5824956 Ball End Mill 10mm 4 Flute Solid Carbide

Product Description

The KENNAMETAL 5824956 is a solid carbide ball end mill from the GOmill 4BN series, designed for both roughing and finishing operations in steel, stainless steel, and cast iron. It features a 10 mm cutting diameter with a 5 mm nose radius, a 40 mm length of cut, and a 100 mm overall length. The 4-flute, right-hand spiral configuration runs at a 30-degree medium helix angle, providing a balance of chip evacuation and cutting edge stability. A multi-layer TiAlN/TiN/TiAlN PVD coating extends tool life and supports elevated cutting temperatures common in ferrous machining applications.

This end mill is suited for CNC machining centers in production shop, tool room, and job shop environments. It handles plunge cutting and ramping operations as a center-cutting tool. The eccentric relief geometry increases cutting edge stability for extended tool life and high surface finish quality. It also eases regrinding, reducing reconditioning costs over the life of the tool. The straight-cylindrical shank fits standard ER and side-lock toolholders accepting a 10 mm shank diameter.

Key Features

• Solid carbide construction with multi-layer TiAlN/TiN/TiAlN PVD coating for wear resistance in ferrous materials
• Eccentric relief geometry increases cutting edge stability and extends tool life
• Center-cutting design supports plunging and ramping operations
• 4-flute, right-hand spiral at 30-degree medium helix for balanced cutting performance
• Eccentric relief simplifies regrinding and reduces reconditioning cost
• GOmill 4BN series rated for roughing and finishing in steel, stainless steel, and cast iron

Compatibility

Designed for use in steel (P), stainless steel (M), and cast iron (K) workpiece materials as designated by ISO material classification. Compatible with standard toolholders accepting a 10 mm straight-cylindrical shank with a shank diameter tolerance of +0.000/-0.009 mm.

Installation Notes

Installation and setup should be performed by a qualified CNC machinist or tooling specialist. Ensure the spindle is fully stopped and the machine is in a safe state before inserting or removing the tool from the toolholder. Verify runout and tool projection against job requirements before commencing cuts. Do not exceed the rated length of cut of 40 mm to avoid deflection and premature edge wear.
