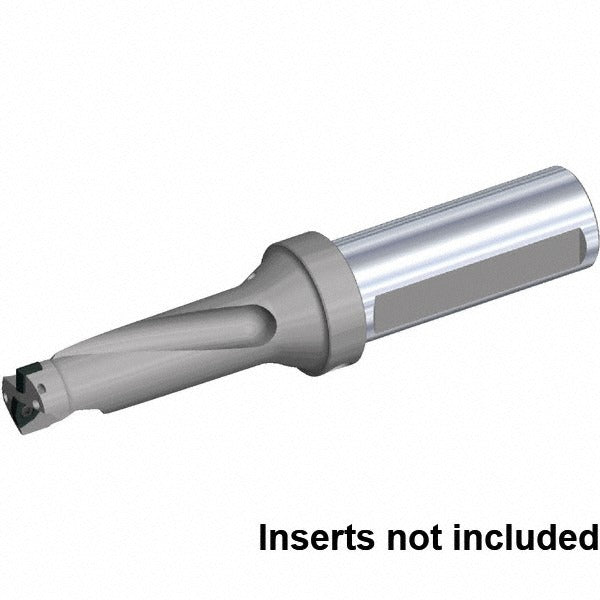

Kennametal 5691791 Indexable Insert Drill 1-1/8in 3xd

Product Description

The KENNAMETAL 5691791 is a steel-body indexable insert drill designed for general-purpose drilling operations in metal cutting and machining applications. It accepts two indexable inserts and delivers a maximum drill depth of 3.375 inches at a 3xD depth-to-diameter ratio. The body measures 1.165 inches in maximum drill diameter with a 1.25-inch Weldon Flat flange shank for secure machine tool holding. Built to the DFSP series standard, this drill supports coolant-through capability via axial concentric and radial coolant ports, making it suitable for production drilling environments. Licensed machinists and toolroom professionals working on CNC mills and machining centers are the primary installers of this tool.

The 5691791 is used in general-purpose drilling of ferrous and non-ferrous workpieces on CNC machining centers, mills, and turning centers equipped with appropriate toolholding. Its flange shank style suits machines with compatible Weldon Flat or flanged toolholders. The 3xD depth ratio makes it a practical choice for through-hole and blind-hole drilling in production and job-shop environments. Coolant-through delivery helps with chip evacuation and thermal management during continuous drilling cycles.

Key Features

• 3xD depth-to-diameter ratio with 3.375-inch maximum drill depth
• Accepts two indexable inserts — compatible with DFT05T3 and SPPX09T3 insert styles
• Coolant-through design with axial concentric and radial coolant entry
• Weldon Flat flange shank at 1.25-inch diameter for rigid toolholder engagement
• Right-hand cutting direction; steel body construction
• Body-side coolant hole thread size 1/8-27; shank-end coolant hole thread size 1/4-18 NPT

Compatibility

Compatible insert styles are DFT and SPPX; compatible insert size codes are 05T3 and 09T2.00. Insert lock screw specification is M3-0.5x7.2 T9 drive. Designed for use in DFSP-series tooling systems.
