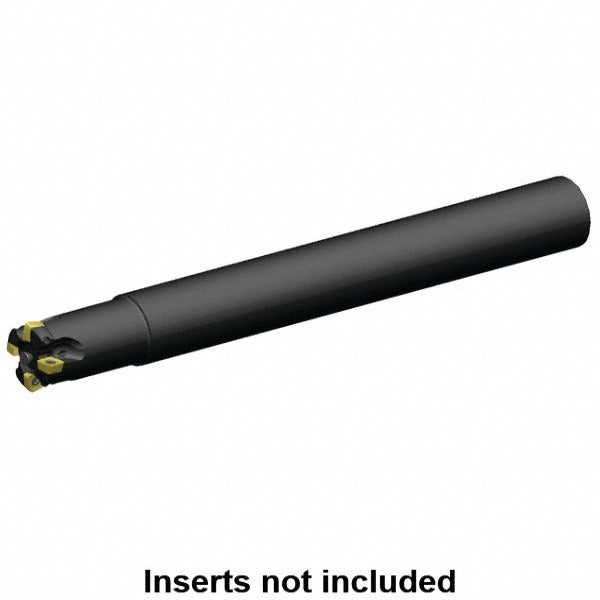

Kennametal 5658507 Indexable High-feed End Mill 0.75 in

Product Description

The KENNAMETAL 5658507 is an indexable high-feed end mill designed for aggressive material removal at shallow depths of cut. Built around the 7792 series platform, it accepts three XPLT0603 inserts and runs on a 0.75 inch straight shank with a 0.75 inch cutting diameter. The maximum depth of cut is 0.035 inches, which is characteristic of high-feed milling strategies that trade axial depth for high feed rates and reduced cutting forces. At 7.874 inches overall length, this tool is suited to applications requiring extended reach without sacrificing rigidity. Installation and setup are typically handled by machining professionals or toolroom technicians in production and job-shop environments.

This end mill is applied in high-feed milling operations on machining centers where the goal is rapid stock removal using shallow axial depths and elevated feed rates. The 7792 series geometry is commonly used on hardened steels, cast irons, and difficult-to-machine alloys in both roughing and semi-finishing passes. The 0.75 inch straight shank interfaces directly with standard end mill holders and collet chucks found on vertical and horizontal CNC machining centers. Toolholder style reference for this cutter body is C7792VXP06CA.75Z3R6.1.

Key Features

• 0.75 inch cutting diameter with matching 0.75 inch straight shank for direct holder compatibility
• Accepts three XPLT0603 indexable inserts for fast insert changes at the machine
• Maximum depth of cut of 0.035 inches supports high-feed, low-force cutting strategies
• 7.874 inches overall length provides extended reach for deeper pockets and cavities
• 7792 series cutter body designed for high-feed milling on a range of workpiece materials
• Toolholder reference C7792VXP06CA.75Z3R6.1 for precise tool assembly documentation

Compatibility

This cutter body is compatible with XPLT0603 series indexable inserts and interfaces with standard 0.75 inch straight-shank end mill holders. Toolholder style designation is C7792VXP06CA.75Z3R6.1. Specific insert grades and coatings should be selected based on workpiece material per KENNAMETAL insert selection guidelines.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel on CNC machining centers. Power down and lock out the spindle before inserting or indexing cutting inserts. Use the appropriate Torx or hex key as specified by the insert screw to seat inserts securely without overtightening. Verify runout with a dial indicator after assembly and before cutting to confirm proper seating of the cutter body in the holder.
