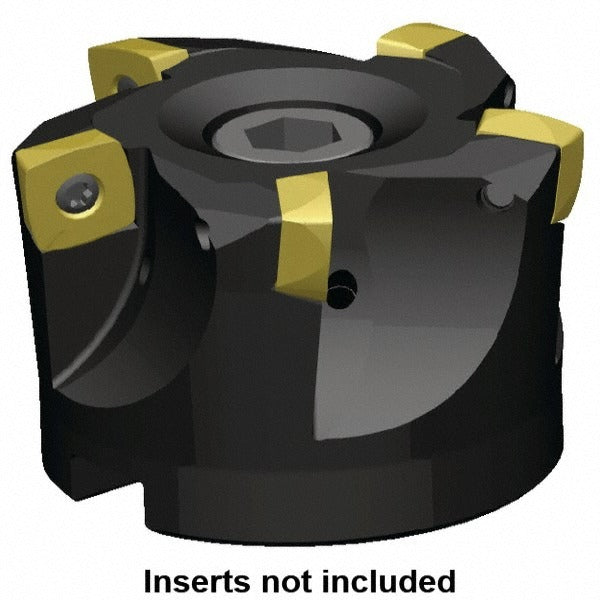

Kennametal 5656919 Indexable Copy Face Mill 3 in

Product Description

The KENNAMETAL 5656919 is an indexable copy face mill designed for high-productivity milling operations in metalworking and machining environments. Built around the Series 7792 platform, this cutter accepts eight XD 12 inserts and delivers a maximum depth of cut of 0.098 inches. The 3.0 inch cutting diameter and 1.0 inch arbor hole diameter make it well-suited for face milling and contouring operations on CNC machining centers. Through-coolant capability channels fluid directly to the cutting zone, extending insert life and improving chip evacuation in demanding materials. This tool is installed and operated by machinists and tooling specialists in production and job shop environments.

The 5656919 is used in horizontal and vertical CNC milling applications where copy milling, face milling, or ramping operations are required. Its eight-insert configuration supports aggressive metal removal rates while maintaining surface finish quality. The through-coolant design is particularly effective in deep shoulder cuts or when machining heat-sensitive workpiece materials. At 1.97 inches overall height, the cutter body suits standard spindle setups without requiring extended toolholders in most applications.

Key Features

• 3.0 inch cutting diameter for wide-coverage face and copy milling
• Accepts 8 XD 12 inserts for high metal removal capacity
• Maximum depth of cut of 0.098 inches per pass
• Through-coolant design improves chip evacuation and insert life
• 1.0 inch arbor hole diameter for secure spindle mounting
• Series 7792 cutter body style C7792VXD12-A3.00Z08R

Compatibility

Compatible with XD 12 series inserts. Designed for use with 1.0 inch arbor toolholding systems on horizontal and vertical CNC milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle and machine are fully powered down and locked out before mounting or removing the cutter body. Torque all insert screws and arbor fasteners according to the machine tool manufacturer and tooling system specifications. Verify through-coolant passages are clear and the coolant supply line is properly connected before operation.
