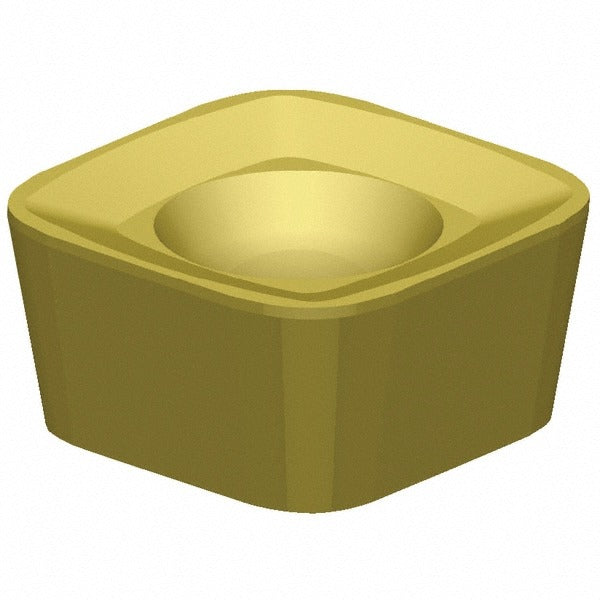

Kennametal 5655472 Milling Insert GH2 Solid Carbide Square

Product Description

The KENNAMETAL 5655472 is a solid carbide milling insert in the XDLT series, designed for indexable milling operations in demanding machining environments. This square-shaped, right-hand insert carries the GH2 manufacturer grade and features four cutting edges, making it a cost-effective option for high-volume milling programs. The insert measures 0.3750 inches in length and width, with a thickness of 0.1870 inches and a corner radius of 0.0315 inches. The bright, uncoated finish and honed cutting edge style suit applications where coating buildup could interfere with surface finish or dimensional accuracy. It is held in place by a screw-type clamping method and carries a positive rake geometry.

This insert is suited for milling cast iron, non-ferrous metals, superalloys, and titanium. It is compatible with the 7792VXD09 cutter series and is identified by the ANSI and ISO code XDLT090408ERD721 with chip breaker D721. Typical applications include face milling and shoulder milling in both production shop and job shop settings where a reliable uncoated carbide insert is specified for non-ferrous or cast iron workpieces. Machinists and CNC programmers working with exotic alloys or titanium components will find the GH2 grade appropriate for those material groups as well.

Key Features

• Solid carbide GH2 grade with bright uncoated finish for cast iron, non-ferrous metals, superalloys, and titanium
• Square insert shape with 90-degree included angle and positive rake geometry
• Four cutting edges per insert for extended tool life per unit
• Corner radius of 0.0315 inches (1/32 inch) with honed cutting edge style
• Screw-held single-sided insert compatible with 7792VXD09 cutter series
• Conforms to ANSI and ISO standards; catalog number XDLT090408ERD721

Compatibility

Designed for use with the 7792VXD09 cutter series. Identified by ANSI and ISO code XDLT090408ERD721. Suitable for workpiece materials including cast iron, non-ferrous metals, superalloys, and titanium.

Installation Notes

Installation is performed by machining professionals and toolroom technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key to seat the clamping screw to the tool manufacturer's specified torque range as listed in the cutter body documentation. Inspect the insert pocket and screw for wear or damage before seating a new insert.
