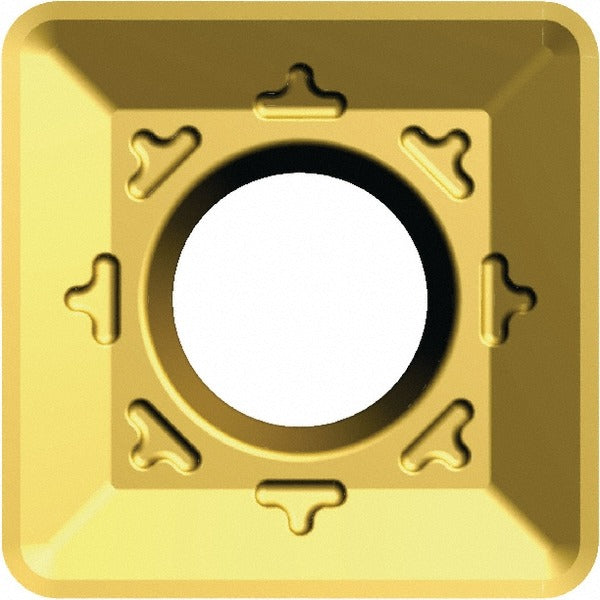

Kennametal 5653137 Milling Insert Sdht X500 Solid Carbide

Product Description

The KENNAMETAL 5653137 is a solid carbide milling insert in the SDHT series, designed for demanding milling operations where edge wear and thermal load are primary concerns. It features a square insert shape with a 15-degree relief angle and carries a tri-layer CVD coating of TiN, TiC, and TiN in the X500 grade. The inscribed circle measures 0.5 inches, and the insert thickness is 3/16 inches (0.187 inches). The chip breaker designation is 423, optimized for controlled chip formation. This insert is installed by machining professionals in production and job-shop environments.

This insert is suited for milling applications where solid carbide substrate and CVD coating provide thermal and abrasion resistance. The SDHT series geometry and 15-degree relief angle make it appropriate for a range of milling operations including face milling and shoulder milling. It is sold individually with a minimum order quantity of 5 units per purchase. The insert size code is 120412, and the UNSPSC code is 23291601, consistent with standard indexable milling insert classifications used in industrial procurement.

Key Features

• Solid carbide substrate for high rigidity and wear resistance
• CVD tri-layer coating: TiN outer layer, TiC mid layer, TiN base layer in X500 grade
• Square insert shape (SDHT series) with 15-degree relief angle
• 0.5 inch inscribed circle with 423 chip breaker designation
• Insert size code 120412 for straightforward toolholder cross-reference
• Minimum order quantity of 5 units per transaction

Compatibility

Designed as an OEM-style indexable milling insert compatible with SDHT-series toolholders accepting a 0.5 inch inscribed circle square insert with insert size code 120412.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the appropriate torx or hex key to the toolholder manufacturer's specified procedure when clamping the insert. Inspect the insert pocket and clamping screw for wear or debris before installation to ensure proper seating and cutting edge engagement.
