Kennametal 5626734 Carbide Replaceable Tip Drill Ksem KCPM45

Product Description

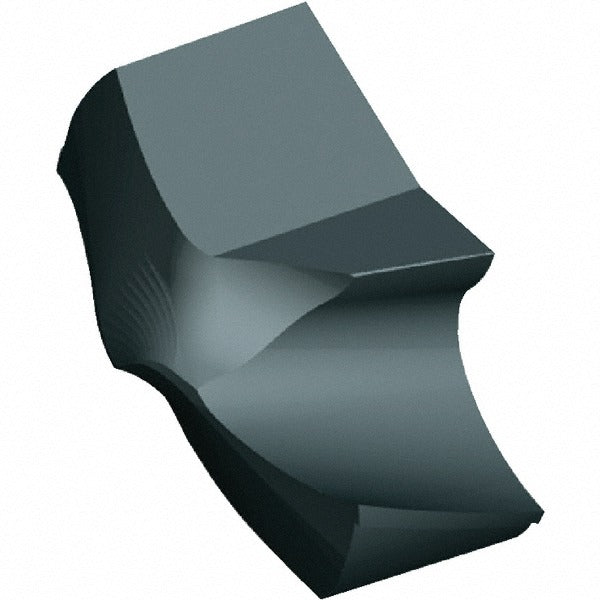

The KENNAMETAL 5626734 is a solid carbide replaceable tip drill insert designed for use in the KSEM Plus modular drilling system. Carrying the KCPM45 manufacturer grade with a fine-grain carbide substrate, this tip features a TiAlN PVD coating and an HPG insert geometry. It cuts at a diameter of 1-3/32 inches (27.78mm) and presents a 140-degree drill point angle for strong, centered entry into the workpiece. The tip measures 16mm in height and is held in place by a clamp mechanism within a compatible KSEM body. Coolant-through capability, including MQL (Minimum Quantity Lubricant) support, makes this tip suitable for high-efficiency drilling cycles.

This replaceable tip is intended for drilling operations in steel and stainless steel (ISO material codes P and M). Supported applications include standard through-drilling, inclined exit drilling, and stacked-plate drilling. The helical, two-flute, two-margin design with through-coolant channels is well suited for production environments where tool change speed, repeatability, and chip evacuation matter. A licensed machinist or tooling technician working on CNC machining centers or drill presses will typically handle installation and changeover.

Key Features

• Solid carbide KCPM45 fine-grain substrate for wear resistance in steel and stainless steel
• TiAlN PVD coating resists heat and extends tool life in demanding cut conditions
• HPG insert geometry with 140-degree point angle for accurate drill entry and reduced thrust
• Coolant-through design supports both flood coolant and MQL delivery
• Helical two-flute, two-margin configuration for efficient chip evacuation
• Clamp-held replaceable tip allows fast changeover without removing the drill body

Compatibility

Designed for use with KSEM Plus series modular drill bodies that accept insert seat size 6. Compatible with KSEM-style bodies configured for a 27.78mm (1-3/32 inch) cutting diameter tip. Suitable for primary workpiece materials: steel and stainless steel (ISO P and M).

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Before changing the tip, power down the machine spindle completely and confirm the tool is at rest. Seat the replaceable tip fully into the KSEM body pocket and secure the clamp according to the toolholder manufacturer's procedure. Inspect the insert seat for chips or debris before each installation to ensure proper seating and runout.
