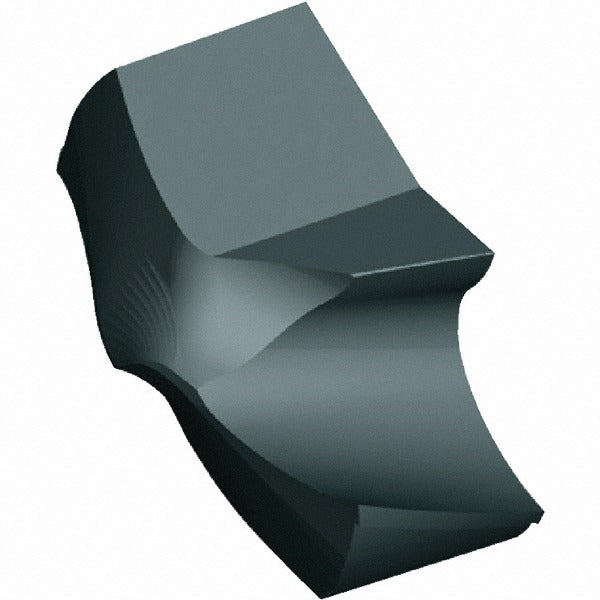

Kennametal 5626731 Replaceable Tip Drill 26.5mm KCPM45

Product Description

The KENNAMETAL 5626731 is a carbide replaceable tip drill from the KSEM Plus series, designed for high-productivity drilling in steel and stainless steel applications. The drill uses the KSEM2650HPGM tip, manufactured in KCPM45 fine grain solid carbide with a PVD-applied TiAlN coating. The cutting diameter measures 26.5mm (1.0433 inches), and the drill point carries a 140-degree included angle with a standard point type. A helical two-flute configuration with two margins provides stable chip evacuation and tool guidance. The HPG insert geometry optimizes cutting forces across a range of hole-making conditions. Coolant-through capability, including MQL (minimum quantity lubricant) compatibility, supports both wet and near-dry machining strategies.

This replaceable tip drill is suited for production environments in metalworking shops, machining centers, and manufacturing facilities performing structural or component drilling. Typical applications include straight drilling, inclined exit drilling, and stacked plate drilling in steel and stainless steel workpieces corresponding to ISO material codes P and M. The KSEM Plus platform uses a clamp-style insert holding method, allowing tip changes at the machine without removing the drill body from the spindle.

Key Features

• 26.5mm cutting diameter with KCPM45 fine grain solid carbide tip
• TiAlN coating applied via PVD process for heat and wear resistance
• 140-degree standard drill point angle for balanced entry force
• Two helical flutes with two margins for chip control and hole quality
• Coolant-through design compatible with both flood coolant and MQL systems
• Supports inclined exit, stacked plate, and through-coolant drilling applications

Compatibility

Designed for use with KSEM Plus series drill bodies accepting insert seat size 6. Compatible tip ISO number is KSEM2650HPGM. Intended for machining ISO P (steel) and ISO M (stainless steel) workpiece materials.

Installation Notes

Installation and tip changes should be performed by a qualified machinist or tooling technician following machine lockout/tagout procedures before handling. Verify spindle interface and KSEM body seat size compatibility before seating the tip. Use the appropriate torque wrench and clamping hardware specified for the KSEM Plus body to secure the tip insert. Do not exceed the drill body manufacturer's recommended speed and feed parameters for the selected workpiece material.
