Kennametal 5397488 Replaceable Tip Drill 23mm KCPM45

Product Description

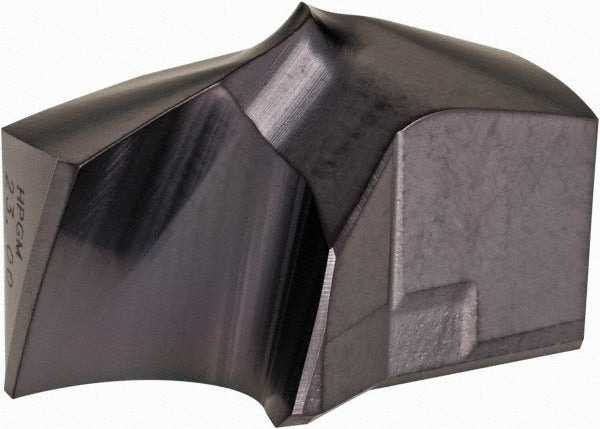

The KENNAMETAL 5397488 is a carbide replaceable tip drill from the KSEM Plus series, designed for high-productivity hole-making in steel and stainless steel applications. The drill accepts an KSEM2300HPGM solid carbide tip with a KCPM45 fine-grain carbide grade and a PVD-applied TiAlN coating. The tip features a 140-degree drill point angle, an HPG insert geometry, and a helical flute design with two flutes and two margins. Coolant-through capability supports both flood and MQL delivery. Licensed HVAC, plumbing, and metal fabrication shops, as well as maintenance machinists, install and service this tooling system.

This drill is suited for production drilling in steel and stainless steel workpieces, covering ISO material groups P and M. Typical applications include straight-entry drilling, inclined exit drilling, and stacked-plate drilling. The replaceable tip design reduces tooling cost by allowing the carbide insert to be swapped without replacing the full drill body. MQL compatibility makes it appropriate for operations where wet coolant is impractical or restricted.

Key Features

• 23mm cutting diameter with HPG insert geometry for chip control in steel and stainless steel
• KCPM45 fine-grain solid carbide tip grade with PVD TiAlN coating for wear resistance
• 140-degree standard drill point angle for balanced cutting forces on entry
• Coolant-through design supports both flood coolant and MQL delivery
• Clamp-style insert holding with Insert Seat Size 4 for secure tip retention
• Two-flute, two-margin helical configuration rated for inclined exit and stacked-plate drilling

Compatibility

Designed as an OEM-style replaceable tip for KSEM Plus series drill bodies accepting Insert Seat Size 4; compatible tip ISO number is KSEM2300HPGM as stated in manufacturer data.

Installation Notes

Replaceable tip drills of this type are installed and serviced by machinists and toolroom technicians. Power down and lock out the spindle before seating or removing the carbide tip. Use the appropriate torque wrench and Kennametal-specified clamp screws to secure the insert; do not substitute fasteners. Inspect the insert seat for chips or debris before each tip change to prevent seating errors that can cause tip failure.
