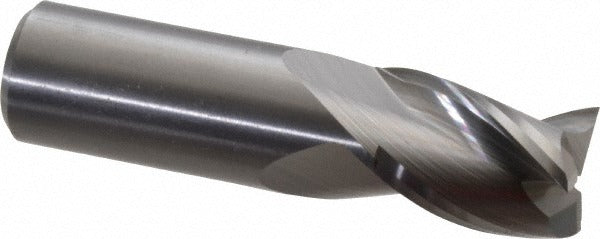

Kennametal 5059165 Square End Mill 3/4 in Solid Carbide

Product Description

The KENNAMETAL 5059165 is a solid carbide square end mill designed for precision milling of ferrous and non-ferrous materials in demanding machining environments. This single-end, center-cutting tool features a 3/4 inch diameter, a 1 inch length of cut, and a 3/4 inch shank diameter with an overall length of 3 inches. The 3-flute spiral geometry runs at a 35-degree helix angle, promoting efficient chip evacuation and smooth cutting action. The micrograin carbide grade provides edge retention and wear resistance in high-tolerance applications. The bright, uncoated finish suits general-purpose machining and regrinding. Licensed machinists and CNC operators in job shops and production facilities are the primary users of this tool.

This end mill is suited for slotting, profiling, and peripheral milling operations in vertical and horizontal machining centers. The stub length profile and right-hand cut with right-hand flute orientation make it appropriate for standard CNC and manual milling setups. It is part of the KENNAMETAL AADE series, which targets general-purpose solid carbide milling across a range of workpiece materials. The center-cutting design allows plunge entry, adding flexibility for pocketing operations without a pre-drilled start hole.

Key Features

• 3/4 inch cutting diameter with 1 inch length of cut for stub-length rigidity
• 3-flute spiral geometry at 35-degree helix angle for efficient chip evacuation
• Solid micrograin carbide construction for edge retention and wear resistance
• Center-cutting design enables direct plunge entry into workpiece
• Right-hand cut, right-hand flute orientation for standard spindle compatibility
• Bright, uncoated finish suitable for regrinding and general-purpose use

Compatibility

Designed as an OEM-style tooling solution for CNC machining centers and manual milling machines accepting a 3/4 inch straight shank collet or end mill holder. Part of the KENNAMETAL AADE series for general-purpose solid carbide milling applications.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before changing tooling. Secure the shank in a properly sized collet or end mill holder to the tool holder manufacturer's specified pull-out force guidelines and confirm runout with a dial indicator before initiating a cut. Do not exceed the tool's rated depth of cut or feed parameters for the workpiece material being machined.
