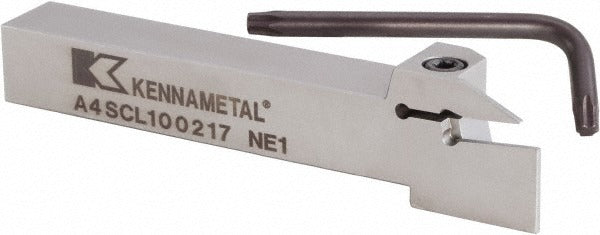

Kennametal 4168860 Indexable Cutoff Toolholder Left Hand

Product Description

The KENNAMETAL 4168860 is a left-hand indexable cutoff toolholder designed for parting and grooving operations on CNC lathes and turning centers. It accepts A4G0200M02P02B inserts with a 2 mm minimum insert width and delivers a maximum depth of cut of 14.5 mm (0.571 inches). The toolholder features a 1/2 x 1/2 inch shank and an overall length of 4.5 inches (114.3 mm), making it a compact, rigid option for light to medium turning work. Machinists and CNC operators working with workpieces up to 28 mm (1.102 inches) in diameter will find this holder well-suited to precision cutoff applications.

This toolholder is intended for use on lathes and turning centers where left-hand cutoff or grooving work is required. It belongs to the A4 series and uses the A4SC toolholder style, which is suited for bar work and production turning environments. The 1/2 x 1/2 inch shank fits standard lathe tool blocks and quick-change toolpost holders commonly found in both manual and CNC turning setups. No coolant-through capability is included, so external coolant delivery should be planned accordingly.

Key Features

• Left-hand orientation for cutoff and grooving on CNC and manual lathes
• Accepts A4G0200M02P02B indexable inserts with 2 mm insert width
• Maximum depth of cut: 14.5 mm (0.571 inches)
• Maximum workpiece diameter: 28 mm (1.102 inches)
• 1/2 x 1/2 inch shank fits standard quick-change and block-style tool holders
• A4 series construction for consistent insert indexing and secure clamping

Compatibility

Compatible with A4 G0200.. and A4G0200M02P02B series indexable inserts. Designed as an OEM-style replacement or direct tooling selection within the KENNAMETAL A4 series cutoff and grooving system.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and all stored energy is released before mounting or removing the toolholder. Seat the shank fully in the tool block and verify clamping torque against the machine tool manufacturer specifications before running. Confirm insert seating and clamp integrity before initiating any cutting cycle.
