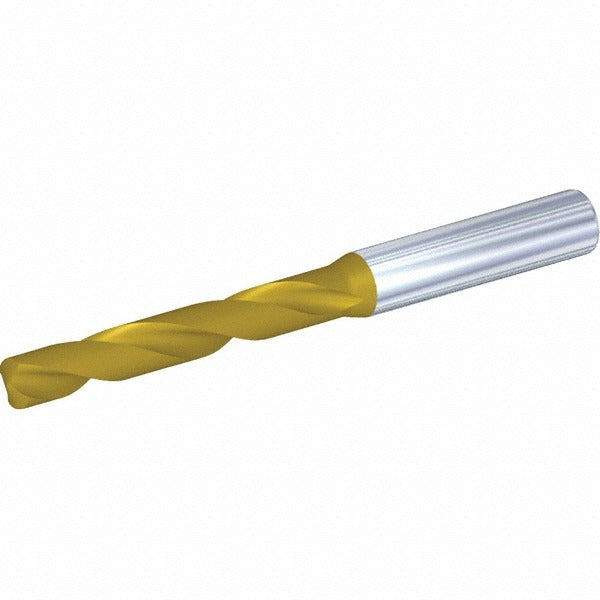

Kennametal 4151640 Carbide Drill Bit 1.90 Mm 140 Deg

Product Description

The KENNAMETAL 4151640 is a screw machine length (stub length) drill bit designed for precision small-hole drilling in metal and hard materials. Built from solid carbide and finished with a TiAlN multilayer coating at the tip, it delivers extended tool life compared to high-speed steel alternatives. The 140-degree split point reduces walking and thrust force on entry. At 58.00 mm overall length with a 4.00 mm straight-cylindrical shank, this bit is sized for use in CNC machining centers, drill presses, and screw machines where compact tool projection and rigidity are required. It carries a 2-flute right-hand spiral and a maximum drilling depth of 6.00 mm.

The 4151640 is suited for close-tolerance drilling applications in production environments including aerospace, automotive, and general metalworking. Its stub-length geometry keeps deflection low when drilling stainless steel, hardened alloys, cast iron, and similar materials. The 9.00 mm flute length and 3xD flute-to-diameter ratio make it appropriate for shallow-to-medium depth holes where chip evacuation is manageable without through-coolant. It conforms to DIN 6537K specification.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• TiAlN multilayer coating at the tip extends tool life and reduces heat buildup
• 140-degree standard point angle minimizes drill walk and reduces thrust on entry
• Stub length design improves rigidity and reduces deflection in short-hole applications
• Right-hand, 2-flute regular spiral for efficient chip evacuation
• Meets DIN 6537K specification for consistent dimensional accuracy

Compatibility

Designed as an OEM-style stub-length drill bit in the KENNAMETAL Series B041A-CPG. Suitable for use in any machine tool with a collet or chuck accepting a 4.00 mm straight shank, within the 0.00 to 3.50 mm drill bit size range.

Installation Notes

Installation and operation should be performed by a qualified machinist or CNC operator. Secure the shank fully in a precision collet or drill chuck rated for the spindle speed and feed rate of the target material. Inspect the cutting edges for chipping or wear before each use, as carbide tooling can fail suddenly if run on damaged edges. Do not exceed the maximum drilling depth of 6.00 mm without retracting to clear chips.
