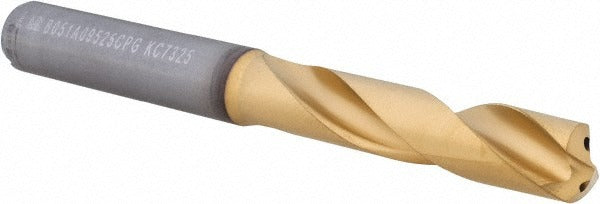

Kennametal 4151196 Screw Machine Drill Bit 3/8 in Carbide

Product Description

The KENNAMETAL 4151196 is a stub-length (screw machine length) solid carbide drill bit designed for high-precision hole-making in metalworking and machining applications. Built to DIN 6537K standards, it features a 3/8 inch (0.3750 inch) cutting diameter with a 140-degree split point for accurate self-centering on entry. The multilayer TiAlN coating at the tip extends tool life under high heat and abrasion. At 3.5039 inches overall length with a 1.8504-inch flute length, the compact stub geometry delivers improved rigidity and reduced deflection compared to jobber-length drills. Coolant-through capability supports high-speed drilling in ferrous and non-ferrous materials.

This drill bit is suited for CNC machining centers, drill presses, and manual machine tools where short, rigid cutting tools are required. The straight cylindrical shank at 0.3937 inches (10.00 mm) fits standard drill chucks and collet holders. The regular spiral flute geometry handles chip evacuation efficiently in a wide range of workpiece materials. It is intended for use by machinists, tool-and-die makers, and precision fabricators working in production or job-shop environments. Maximum drilling depth is 1.3780 inches (35.00 mm).

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding materials
• 140-degree standard point angle for accurate entry and reduced thrust force
• TiAlN tip coating extends service life in abrasive and high-temperature cutting conditions
• Coolant-through design supports chip flushing and thermal management at depth
• Stub-length (screw machine) body reduces deflection for tighter hole tolerances
• DIN 6537K specification ensures dimensional consistency for interchangeable tooling

Compatibility

Designed as a DIN 6537K stub-length drill for use in standard drill chucks and collet systems accepting a 0.3937-inch straight cylindrical shank. Part of the KENNAMETAL Series B051A-CPG.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and machine power locked out per facility lockout/tagout procedures. Verify chuck or collet runout before operation to maintain hole tolerance within the specified diameter range of -0.0006 to 0.0000 inches. Coolant-through setups require confirmation that the machine spindle and toolholder are configured for internal coolant delivery. Do not exceed the rated maximum drilling depth of 1.3780 inches without retracting for chip clearing.
