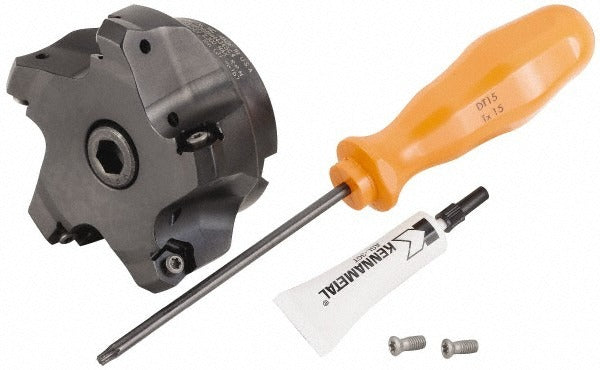

Kennametal 4130494 Indexable Face Mill 3in 5 Flute Dodeka Mini

Product Description

The KENNAMETAL 4130494 is an indexable chamfer angle face mill designed for precision milling operations in metalworking applications. Built around the Dodeka Mini series platform, this right-hand cutter accepts HNGJ 0604 series inserts held in place by screw-clamp retention. It features a 3-inch minimum cutting diameter, a 1-inch arbor hole, and a maximum depth of cut of 0.127 inches (3.23 mm). With 5 flutes and through-coolant capability, the cutter supports higher feed rates and helps manage heat at the cutting zone. It is suited for facing, chamfering, and shoulder milling on machining centers and mills operated by machinists and toolroom professionals.

This face mill is intended for use on vertical and horizontal machining centers where a screw-retained indexable insert cutter is required. The Dodeka Mini series is typically applied in operations involving medium to light stock removal on ferrous and non-ferrous workpieces. The 45-degree chamfer geometry suits applications where both facing and edge-breaking are performed in a single pass. Through-coolant ports direct fluid to the cutting edges, making the cutter appropriate for high-speed passes where chip evacuation and thermal control are priorities.

Key Features

• 3-inch minimum cutting diameter with maximum body diameter of 3.228 inches
• 5-flute design with screw-retained HNGJ 0604ANENLD insert compatibility
• 45-degree indexable chamfer angle for combined facing and chamfering
• Through-coolant capability for improved chip evacuation and heat management
• Right-hand cutting direction; rated to 8,300 RPM maximum
• Dodeka Mini series platform with 1-inch arbor hole and hub diameter of 2.189 inches

Compatibility

Compatible with HNGJ 0604ANENLD inserts. Insert size code is HNGJ 0604. Cutter style is KSHR within the Kennametal Dodeka Mini series. Verify spindle arbor and insert grade selection against workpiece material before ordering.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the spindle before mounting or removing the cutter body. Torque the arbor retention hardware according to the machining center manufacturer specifications and verify insert seating before the first cut. Follow the cutter manufacturer insert replacement and torque sequence guidelines when indexing or replacing worn inserts.
