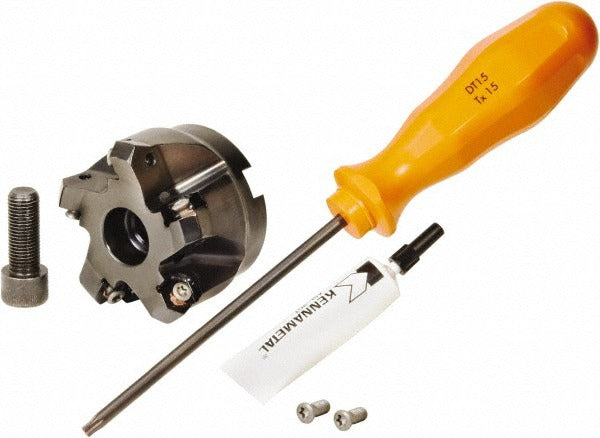

Kennametal 4130429 Indexable Face Mill 2 in Dodeka Mini

Product Description

The KENNAMETAL 4130429 is a 5-insert indexable face mill designed for precision chamfering and face milling operations in metalworking applications. Built around the Dodeka Mini series platform, this cutter accepts HNGJ 0604ANENLD inserts and operates with a right-hand cutting direction. The 2-inch minimum cutting diameter and 45-degree chamfer angle make it well suited for controlled material removal on ferrous and non-ferrous workpieces. Through-coolant capability supports chip evacuation and insert life at elevated speeds up to 12,500 RPM. Inserts are secured via screw-lock holding, providing repeatable indexing. This tool is intended for CNC machining centers and manual mills operated by machinists and tooling professionals.

The 4130429 fits applications requiring consistent chamfer geometry in production and job-shop environments. Its compact Dodeka Mini series design makes it appropriate for smaller spindle setups where a 3/4-inch arbor hole is standard. With 5 flutes and a maximum depth of cut of 3.23 mm (0.127 inches), it is suited for light to moderate face milling passes on machining centers. The through-coolant feature benefits high-speed finishing passes where heat management and chip clearance are priorities.

Key Features

• 2-inch minimum cutting diameter with 2.321-inch maximum cutting diameter for flexible material engagement
• 45-degree chamfer angle indexable cutter style (KSHR) for consistent edge prep
• 5-insert configuration with screw-lock holding for secure, repeatable insert indexing
• Through-coolant design supports chip evacuation and thermal control at high spindle speeds
• Maximum spindle speed of 12,500 RPM suitable for CNC machining center use
• Compatible with HNGJ 0604ANENLD inserts for straightforward replacement sourcing

Compatibility

Designed for use with HNGJ 0604ANENLD inserts (insert size code HNGJ 0604). Part of the Kennametal Dodeka Mini series. Fits arbor hole diameter of 3/4 inch (19.05 mm). Consult Kennametal tooling documentation to confirm spindle and adapter compatibility before installation.

Installation Notes

Installation and setup should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before mounting or indexing inserts. Confirm arbor and adapter specifications match the 3/4-inch arbor hole before mounting. Follow the machine tool manufacturer torque and runout verification procedures when seating the cutter body.
