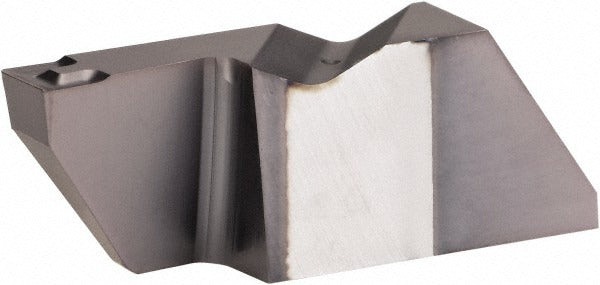

Kennametal 4109657 Grooving Insert NFD4189K KCU25 Left Hand

Product Description

The KENNAMETAL 4109657 is a solid carbide grooving insert in the Top Notch series, designed for external grooving and cutoff operations on CNC lathes and turning centers. The insert carries the NFD4189K geometry with a KCU25 grade, which combines a PVD-applied AlTiN coating with a carbide substrate suited for demanding interrupted cuts and a variety of workpiece materials. It is sized for a 4.8 mm cutting width with a maximum depth of cut of 9.53 mm and a cutting height of 11.51 mm. A 0.57 mm corner radius and 12-degree rake angle contribute to controlled chip formation. Machinists and CNC operators performing precision grooving work install this insert as part of a clamp-style Top Notch toolholder system.

This insert is intended for use in industrial machining environments where metric-dimensioned grooving is required. The left-hand orientation suits specific toolholder setups on turning centers where the insert approaches from the left. The K chip breaker geometry is appropriate for finish to medium grooving passes. The insert seat size is 4, consistent with standard Top Notch compatible clamp holders. It is not configured as a full-radius insert and is not a multi-use tool, making it purpose-built for dedicated grooving applications in production or job-shop settings.

Key Features

• Solid carbide construction with PVD AlTiN coating for extended tool life in abrasive and hard materials
• 4.8 mm cutting width with a maximum depth of cut of 9.53 mm
• Left-hand insert orientation for use with compatible left-hand Top Notch clamp holders
• K chip breaker geometry with a 12-degree rake angle for controlled chip evacuation
• 0.57 mm corner radius for defined groove edge geometry
• Clamp-style insert holding method for secure, repeatable seating

Compatibility

Designed for use with Top Notch series clamp-style toolholders accepting insert seat size 4 and accommodating a 4189 insert size in left-hand orientation.

Installation Notes
