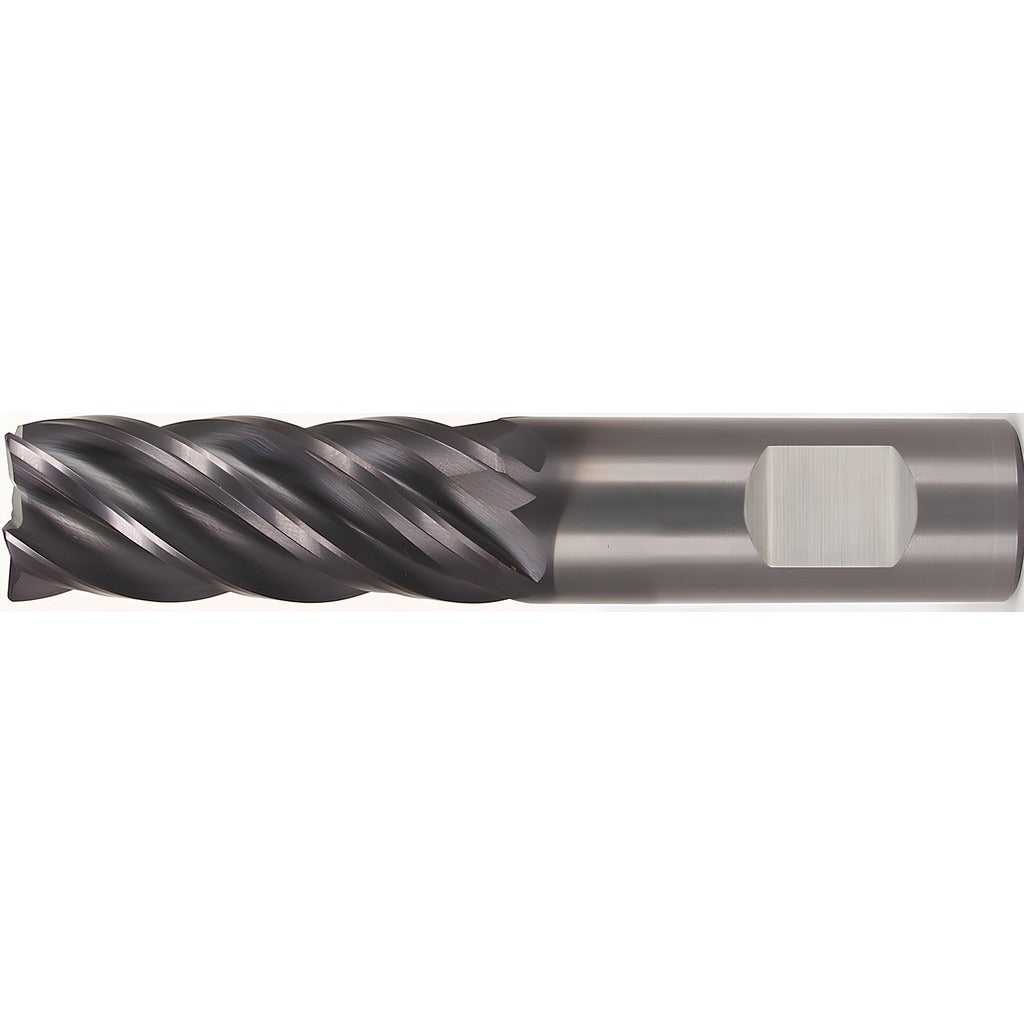

Kennametal 4048722 Corner Radius End Mill 1/2 in 5 Flute

Product Description

The KENNAMETAL 4048722 is a solid carbide corner radius end mill designed for demanding material removal in steel, stainless steel, cast iron, and hard materials. Built to the UCDE series standard, it features a 1/2 inch cutting diameter, a 0.03 inch corner radius, and five flutes ground from submicron carbide stock. The cutting edges are coated with AlTiN (aluminum titanium nitride) via a PVD process, providing thermal resistance and extended tool life at elevated cutting speeds. This is a single-end, right-hand cut tool with a straight cylindrical shank, suited for both roughing and finishing passes.

This end mill is intended for use in CNC machining centers and milling machines where precise corner geometry and edge strength are required. It is well-suited for applications in tool and die, aerospace component machining, mold work, and general metalworking where the workpiece is steel, stainless steel, cast iron, or similarly hard material. The 1-1/4 inch length of cut allows adequate reach for most pocket and profile milling operations without sacrificing rigidity. It mounts in standard end mill toolholders.

Key Features

• Submicron solid carbide construction for high hardness and wear resistance
• AlTiN PVD coating for thermal stability in hard-material and dry-cutting applications
• 0.03 inch corner radius reduces stress concentration at cutting corners and improves edge longevity
• Five flutes provide a balance of chip evacuation capacity and surface finish quality
• Right-hand cut, right-hand spiral flutes for standard CNC spindle compatibility
• Straight cylindrical shank fits standard collet chucks and end mill holders

Compatibility

Designed for use with standard end mill toolholders. Suitable for machining steel, stainless steel, cast iron, and hard materials. Compatible with CNC machining centers running right-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the controller is in a safe state before loading or changing tooling. Seat the shank fully into the toolholder and torque retention hardware per the toolholder manufacturer specifications. Verify runout with a dial indicator before initiating a cut, particularly when tolerance or surface finish requirements are tight.
