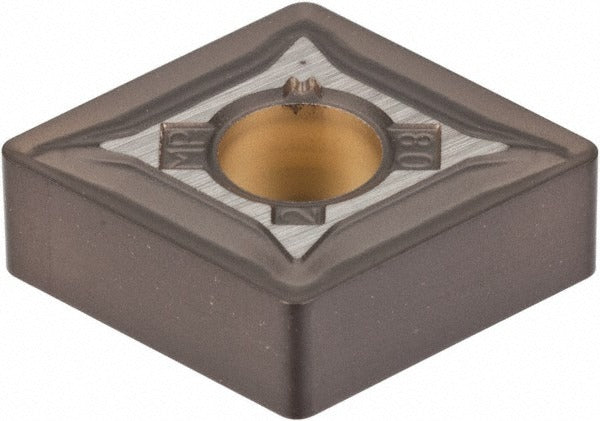

Kennametal 3760343 CNMG432MP KCM25 Turning Insert

Product Description

The KENNAMETAL 3760343 is a CNMG432MP-style turning insert in the KCM25 grade, designed for general turning, facing, and boring operations on a CNC or conventional lathe. The insert is manufactured from solid carbide and coated with a multilayer TiN, TiCN, and Al2O3 stack applied via MTCVD and CVD processes. This combination delivers thermal resistance and edge stability during interrupted and continuous cuts. The 80-degree diamond shape provides a strong cutting geometry, while the MP chip breaker controls chip flow across a range of depths and feeds. The insert carries a negative rake angle of 6 degrees and a chamfered and honed cutting edge style for consistent performance.

This insert is suited for machining steel, stainless steel, superalloys, and titanium, corresponding to ISO material codes P, M, and S. It fits into the KENNAMETAL KENLOC toolholding system and is applicable in production turning environments where insert consistency and tool life are priorities. The neutral hand orientation makes it compatible with both left-hand and right-hand toolholder pockets that accept CNMG-style inserts. With four cutting edges per insert, it offers multiple index positions before replacement, supporting cost-effective production use.

Key Features

• MTCVD and CVD multilayer coating: TiN, TiCN, and Al2O3 for heat and wear resistance
• MP chip breaker geometry for controlled chip evacuation during turning, facing, and boring
• Four usable cutting edges per insert
• Negative rake with chamfered and honed edge prep for edge strength
• Maximum depth of cut of 0.0492 inches (1.25 mm)
• Clamp and pin insert holding compatible with KENLOC toolholders

Compatibility

Designed for use with KENNAMETAL KENLOC toolholding system toolholders that accept CNMG-style inserts with a 0.5-inch inscribed circle. Industry standard number CNMG432MP. Conforms to ANSI and ISO insert standards.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torque wrench and KENLOC clamp hardware when seating the insert to ensure correct clamping force without cracking the carbide substrate. Inspect the toolholder pocket for wear or debris before seating a new insert edge.
