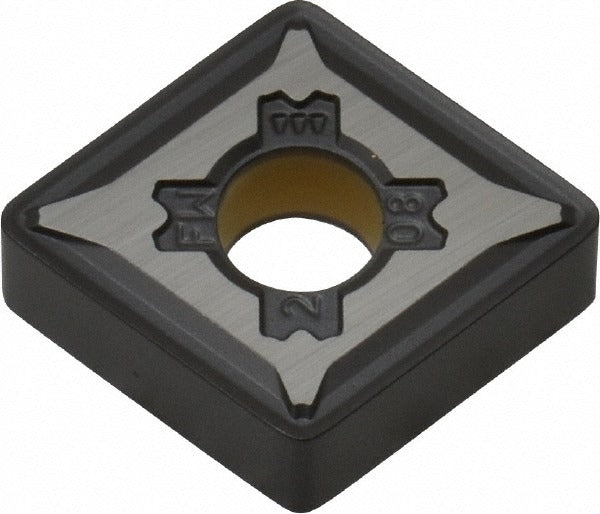

Kennametal 3749360 CNMG432FW KCP10 Carbide Turning Insert

Product Description

The KENNAMETAL 3749360 is a solid carbide turning insert in the CNMG432FW geometry, coated with a multilayer TiCN and Al2O3 CVD coating under the manufacturer grade designation KCP10. It belongs to the KENLOC series and is designed for external and internal turning operations on CNC and manual lathes. The insert measures 12.9 mm (0.5077 inches) in length with a 0.5-inch inscribed circle and a 1/32-inch corner radius. The negative rake geometry with a honed cutting edge and FW chip breaker delivers controlled chip formation across a range of depths of cut, with a maximum depth of cut of 1.25 mm. This insert is installed by machining professionals in production and job-shop environments.

The CNMG432FW KCP10 insert is suited for turning, facing, and boring applications on steel and cast iron workpieces, aligning with ISO material groups P and K. The 80-degree diamond insert shape and neutral hand orientation make it adaptable to a wide range of toolholder setups. With four available cutting edges per insert, it offers extended service life per unit. The KENLOC clamping system uses a combined clamp and pin holding method, providing rigid tool engagement during interrupted and continuous cuts.

Key Features

• Multilayer CVD coating: TiCN and Al2O3 for wear resistance on steel and cast iron
• FW chip breaker geometry with honed cutting edge for controlled chip flow
• Four cutting edges per insert for extended tool economy
• Negative rake, 80-degree diamond shape (Insert Shape Code C) for versatile toolholder compatibility
• Maximum depth of cut of 1.25 mm (0.0492 inches) per edge
• Compatible with ANSI and ISO standard toolholders via KENLOC clamp and pin holding

Compatibility

Designed for use in KENLOC-compatible toolholders accepting CNMG432 inserts. Suitable for turning, facing, and boring operations on steel and cast iron. ISO code CNMG120408P; industry standard number CNMG432FW. Material grades C3 and C7.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench and KENLOC clamping hardware specified for this insert style - do not substitute clamp components. Inspect the insert seat and toolholder pocket for debris or damage before seating each new edge.
