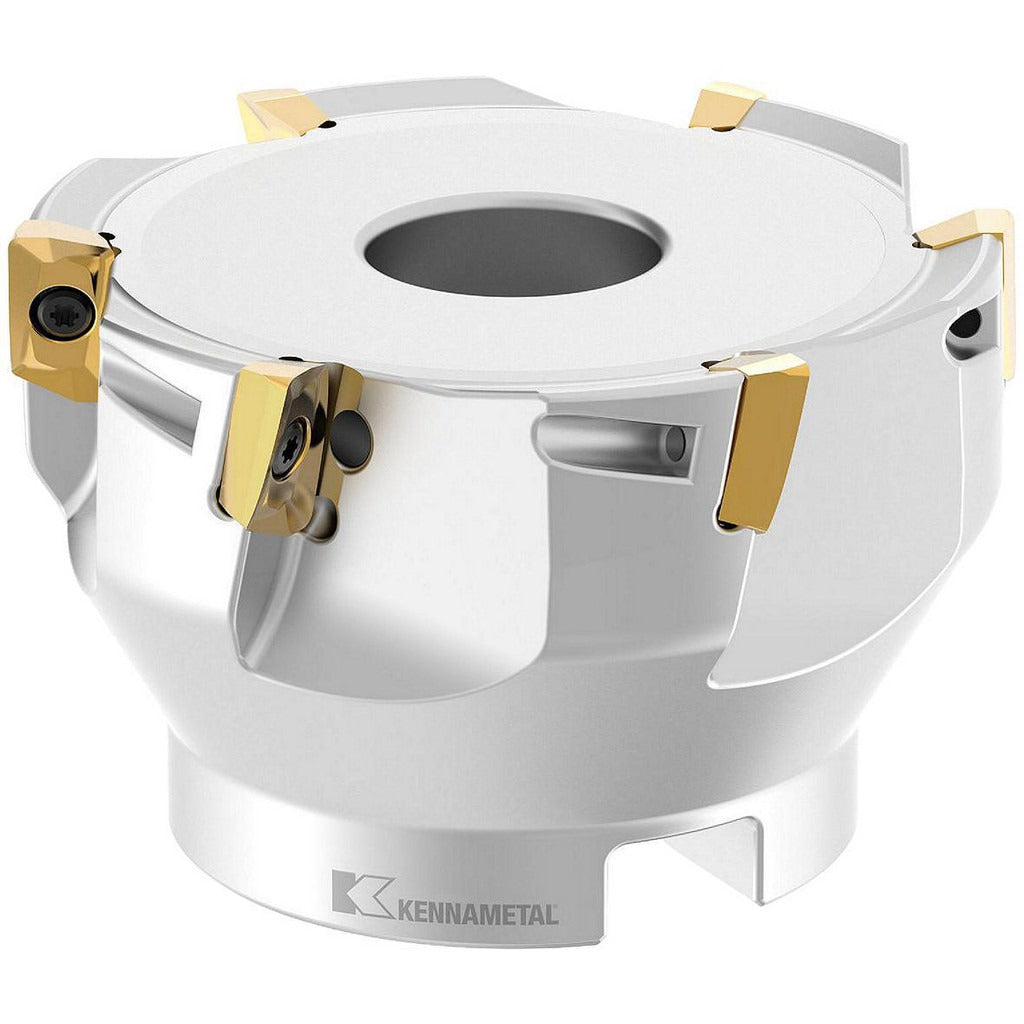

Kennametal 3745047 Square-shoulder Face Mill 3 in

Product Description

The KENNAMETAL 3745047 is an indexable square-shoulder face mill designed for precision milling operations in metalworking and machining applications. Built around a 3-inch maximum cutting diameter and a 1-inch arbor hole, this mill accepts 8 inserts with a 0/90 lead angle for true square-shoulder cuts. The body stands 1.75 inches tall and supports a maximum depth of cut of 0.389 inches. It uses EC10 and EP10 insert styles and is part of the KENNAMETAL Mill 1-10 series. Installation is right-hand cutting direction, and the tool is intended for use in CNC machining centers and manual milling machines operated by skilled machinists.

This face mill is suited for general-purpose square-shoulder milling on ferrous and non-ferrous materials in production and job-shop environments. The coarse pitch configuration and 8-insert capacity make it appropriate for medium-to-high material removal rate applications. The 2.19-inch hub diameter provides solid arbor support for stable cuts. It is typically used in horizontal or vertical milling setups where a full 90-degree shoulder is required, such as stepping, slotting, or face milling workpiece edges. Coolant-through is not supported on this body.

Key Features

• 3-inch maximum cutting diameter for broad face milling coverage
• 0/90 lead angle delivers true square-shoulder geometry
• Accepts 8 EC10 and EP10 series inserts for flexible insert selection
• Coarse pitch design supports higher chip loads and productivity
• Right-hand cutting direction with clamp and screw insert holding
• 1-inch arbor hole fits standard mill arbor tooling

Compatibility

Compatible with EC10 and EP10 insert styles as part of the KENNAMETAL Mill 1-10 series. Designed for use with standard 1-inch arbor toolholding systems on CNC and manual milling machines.

Installation Notes

This tool is installed and serviced by machinists and tooling specialists. Power down and lock out the machine spindle before mounting or changing inserts. Ensure the arbor and face mill bore are clean and free of debris before seating the tool. Follow the machine tool manufacturer torque guidance for drawbar and arbor retention, and inspect insert seating and clamp integrity before each operation.
