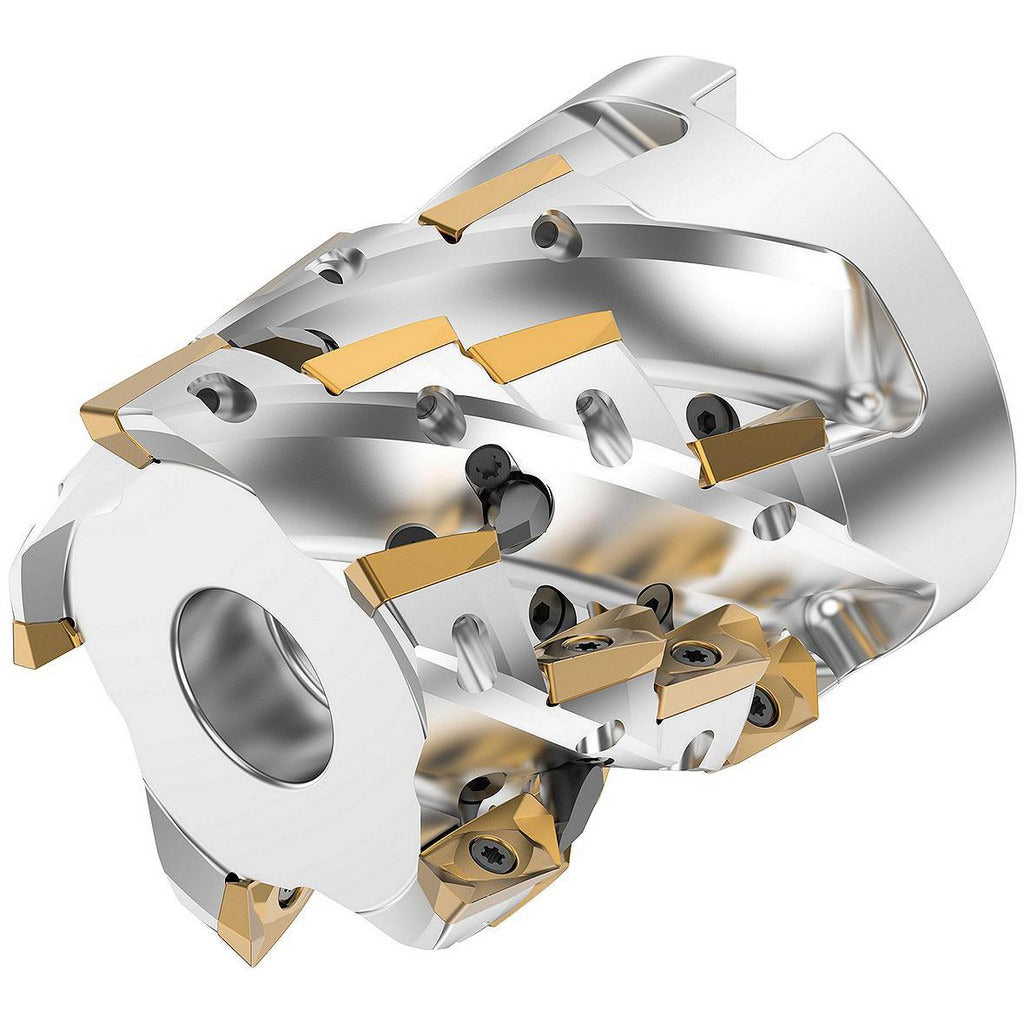

Kennametal 3732934 Square-shoulder Face Mill 2 in

Product Description

The KENNAMETAL 3732934 is an indexable square-shoulder face mill designed for precision milling operations in metal cutting applications. With a 2-inch maximum cutting diameter and a 0/90 degree lead angle, this cutter delivers true 90-degree walls on workpiece shoulders. It accepts 9 inserts in the EC14 and EP14 insert styles, secured by clamp and screw holding methods. The 3/4-inch arbor hole diameter provides a solid spindle connection, and through-coolant capability supports chip evacuation and thermal management during heavy material removal. Weighing 3.1 pounds, this tool is part of the Mill 1-14 series and is intended for use by machinists and CNC setup technicians in production and job-shop environments.

This face mill is suited for square-shoulder milling on steel, cast iron, and similar ferrous materials in both horizontal and vertical machining center setups. The right-hand cutting direction and 9-insert capacity make it appropriate for medium to high material removal rate operations. The through-coolant feature supports extended tool life in high-feed or interrupted-cut conditions. With a 2.5-inch overall height and a 1.75-inch hub diameter, the body fits standard arbor tooling setups on machines configured for inch-dimension toolholders.

Key Features

• 2-inch maximum cutting diameter with 0/90 degree lead angle for true square shoulders
• Accepts 9 indexable inserts in EC14 and EP14 insert styles
• Insert holding via clamp and screw for rigid, repeatable seating
• Through-coolant design for improved chip removal and insert life
• Right-hand cutting direction, Mill 1-14 series platform
• 3/4-inch arbor hole for standard inch arbor compatibility

Compatibility

Compatible with EC14 and EP14 series indexable inserts. Designed as an OEM-style arbor-mount face mill for use on vertical and horizontal machining centers equipped with inch-dimension arbor toolholding systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or dismounting the cutter body. Verify arbor and spacer engagement before torquing the drawbar or retention knob to machine manufacturer specifications. Inspect insert pockets and clamping hardware for wear or damage before seating new inserts.
