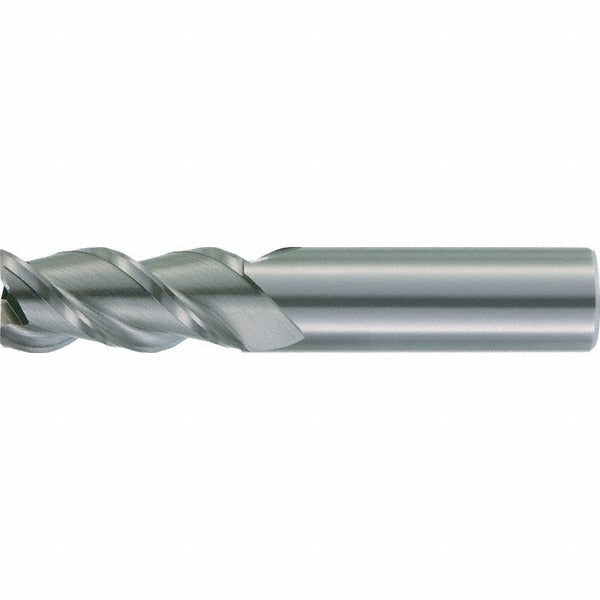

Kennametal 3658850 Corner Radius End Mill 3/4 in 3 Flute

Product Description

The KENNAMETAL 3658850 is a solid carbide corner radius end mill designed for material removal in non-ferrous metal applications. It features a 3/4 inch cutting diameter, a 0.03 inch corner radius, and three right-hand spiral flutes with a coarse pitch. The 2.25 inch length of cut and 5 inch overall length make it suited for standard-depth milling operations. The bright/uncoated submicron carbide construction provides edge integrity in aluminum, copper, brass, and similar N-code workpiece materials. This is a single-end, centercutting tool, meaning it can plunge as well as profile.

This end mill is intended for roughing operations on non-ferrous metals in CNC machining centers and manual mills. It is compatible with hydraulic toolholding systems including HC 1/2 through HC 1 1/4 hydraulic sleeves with inch bores, HC 20M through HC 32M hydraulic sleeves metric with inch bores, and HC-HSK Form A holders. The straight-cylindrical 3/4 inch shank fits standard collet chucks and hydraulic chucks designed for that bore size. It falls within the KENNAMETAL AADE series, a roughing-geometry line built for aggressive stock removal.

Key Features

• Solid carbide submicron grade construction for wear resistance in non-ferrous cutting
• 0.03 inch corner radius reduces stress concentrations at the cutting edge
• Three right-hand flutes with coarse pitch geometry optimized for roughing
• Centercutting design allows plunge, ramp, and helical entry
• Bright/uncoated finish suitable for non-ferrous materials where coating buildup can be a concern
• High helix style promotes chip evacuation in deep pockets and slots

Compatibility

Compatible with HC 1/2 through HC 1 1/4 hydraulic sleeves with inch bores, HC 20M through HC 32M hydraulic sleeves metric with inch bores, and HC-HSK Form A toolholding systems. The 3/4 inch straight-cylindrical shank also fits standard ER and TG collet systems bored to 3/4 inch.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the toolholder is clean and free of chips before seating the tool. Torque the toolholder to the holder manufacturer's specification. Verify runout with a dial indicator after clamping, as excessive runout will accelerate edge wear on carbide tooling.
