Kennametal 2390299 Milling Insert KCPK30 Solid Carbide

Product Description

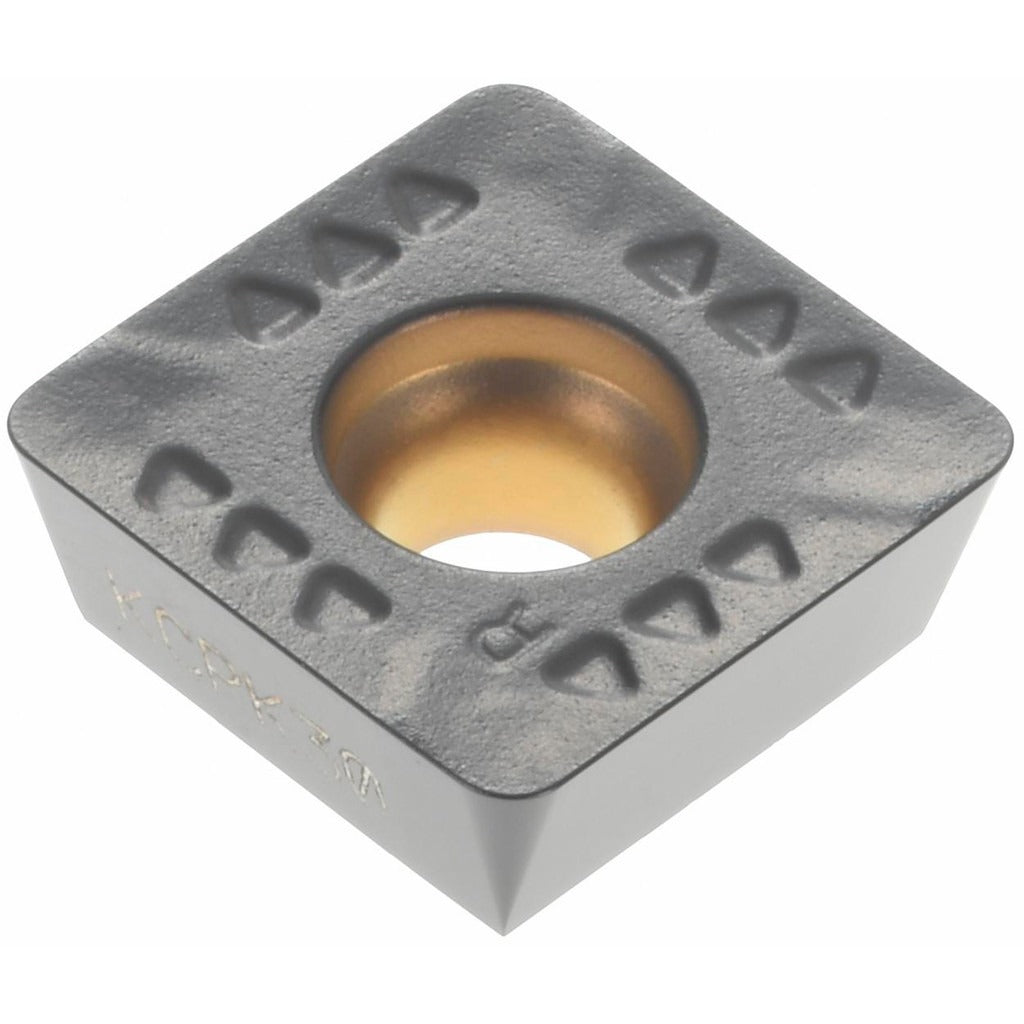

The KENNAMETAL 2390299 is a solid carbide milling insert manufactured to ISO code SDET120412PDERGB2 and offered in the KCPK30 grade. It features a square insert shape with a 90-degree included angle, a 0.0469-inch (1.20 mm) corner radius, and a 0.5-inch inscribed circle. The insert is CVD-coated with a three-layer TiN, TiCN, and Al2O3 stack, providing thermal resistance and wear protection during interrupted and continuous milling cuts. At 0.1875 inches thick and weighing approximately 0.02 pounds, it is designed for screw-held toolholders. Licensed machinists and CNC mill operators install this insert in compatible SDET-series milling bodies.

This insert is suited for milling applications across a broad range of workpiece materials, including steel, stainless steel, cast iron, superalloys, and titanium, corresponding to ISO material groups P, M, K, and S. The GB2 chip breaker geometry is designed to control chip formation across these varying material hardnesses and feed conditions. Typical applications include face milling, shoulder milling, and general-purpose milling operations where a right-hand, positive-relief insert geometry is required. The 15-degree relief angle supports reduced cutting forces and improved surface finish on difficult-to-machine materials.

Key Features

• Solid carbide substrate in KCPK30 grade for toughness and wear resistance in steel and superalloy milling
• CVD three-layer coating: TiN, TiCN, and Al2O3 for thermal barrier and crater wear resistance
• Square SDET insert shape with 90-degree included angle and GB2 chip breaker geometry
• 0.0469-inch corner radius for controlled edge engagement and surface finish
• 15-degree relief angle reduces cutting forces on stainless steel, cast iron, and titanium
• Right-hand cutting orientation; screw-held insert mounting for positive location in the pocket

Compatibility

Designed for use in SDET-series milling cutter bodies that accept square screw-held inserts with a 0.5-inch inscribed circle, 0.1875-inch thickness, and a 0.1732-inch hole diameter. Verify toolholder pocket geometry and insert size code 433 compatibility before installation.
