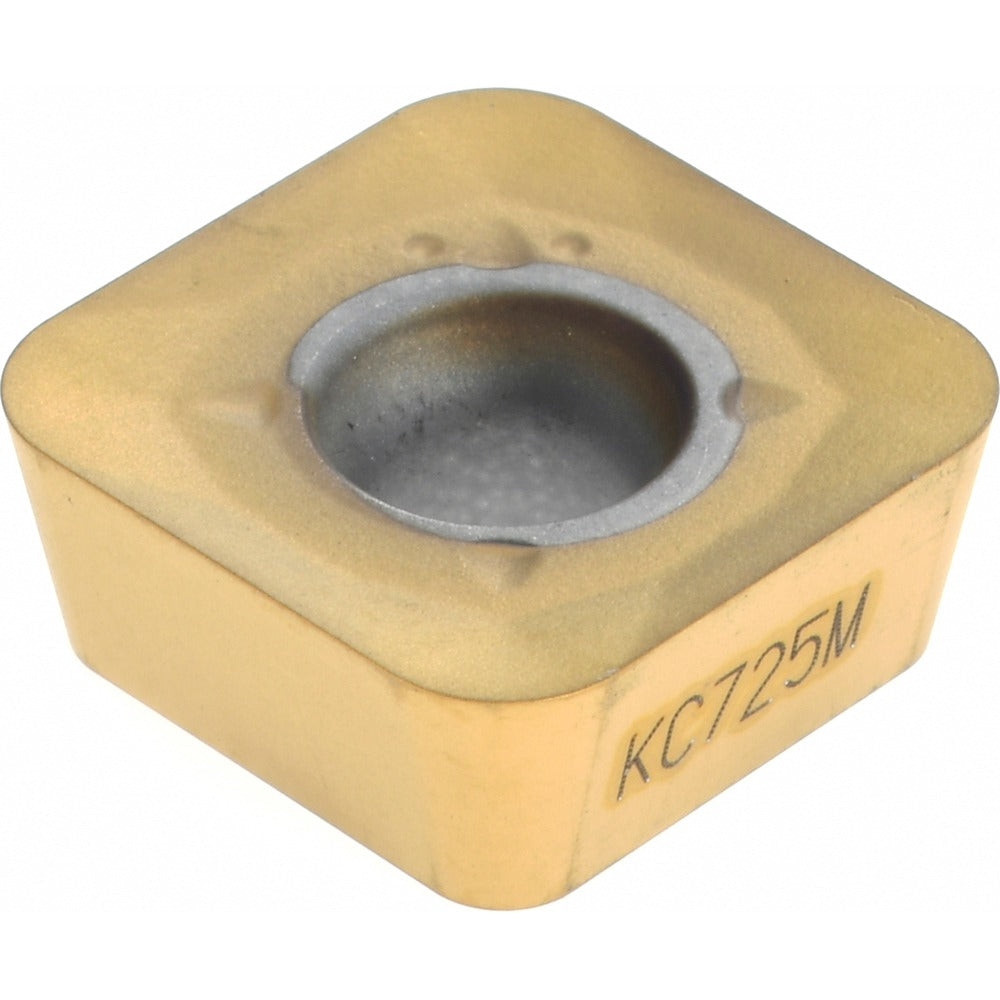

Kennametal 2383590 Milling Insert KC725M Solid Carbide

Product Description

The KENNAMETAL 2383590 is a solid carbide milling insert carrying ISO designation SPCT10T320ENLD2 and manufacturer grade KC725M. It features a square insert shape with a 90-degree included angle and a neutral hand orientation. The insert measures 0.5 inches inscribed circle diameter and 0.1563 inches thick, with a corner radius of 0.0787 inches (2.00 mm). A PVD-applied TiN/TiCN/TiN multilayer coating delivers wear resistance and thermal stability across demanding milling applications. The LD2 chip breaker geometry controls chip evacuation and reduces cutting forces. This insert is held in place by a screw-lock method and is suited for use in CNC milling operations performed by machinists and tooling technicians.

This insert is engineered for milling steel, stainless steel, superalloys, and titanium, corresponding to ISO material application codes P, M, and S. It fits applications where controlled chip formation and coating durability are priorities, such as face milling, shoulder milling, and contour operations on ferrous and high-temperature alloy workpieces. The KC725M grade and PVD coating make it well suited for medium to finishing cut conditions where edge sharpness and coating adhesion are critical. This insert is sold individually but must be ordered in multiples of 5.

Key Features

• PVD-applied TiN/TiCN/TiN multilayer coating for wear resistance and thermal protection
• Square insert shape with 90-degree included angle and neutral hand for versatile milling setups
• LD2 chip breaker geometry for effective chip control on steel and superalloy workpieces
• Corner radius of 0.0787 inches (2.00 mm) balances edge strength with surface finish quality
• Screw-lock insert holding method for secure, repeatable seating in compatible toolholders
• Solid carbide substrate in KC725M grade rated for material classes C5, C6, and C7

Compatibility

Designed for use in SPCT-series screw-lock milling toolholders accepting a size 31 square insert with a 0.5-inch inscribed circle diameter. Compatible workpiece materials include steel, stainless steel, superalloys, and titanium (ISO codes P, M, S).

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or tooling technician with the machine fully powered down and locked out per facility lockout/tagout procedures. Use the appropriate Torx or hex key to seat and torque the clamping screw according to the toolholder manufacturer specifications. Inspect the insert pocket for debris or damage before seating a new insert. Never force an insert into a pocket or mix insert sizes within the same toolholder body.
