Kennametal 2273016 Ddjn Indexable Turning Toolholder

Product Description

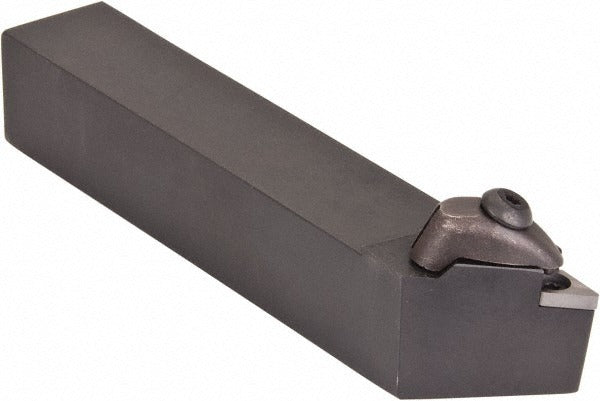

The KENNAMETAL 2273016 is a right-hand DDJN-style negative rake indexable turning toolholder from the Kenclamp series. It accepts DN..33. style inserts secured by a top clamp holding method. The shank measures 1 inch wide by 1 inch tall, with an overall length of 6 inches and a head length of 1.25 inches. The back-of-bar to cutting edge distance is 1.25 inches. The toolholder body is constructed from steel and is designed for use on CNC lathes and manual turning centers. This tool is installed and set up by machinists and toolroom technicians performing OD turning operations requiring a negative rake geometry.

This toolholder is suited for external turning applications on lathes where a right-hand cutting direction is required. The DDJN style provides a 3-degree lead angle, which positions the insert for general-purpose OD turning. It is commonly used in production shops and job shops running steel, stainless, and cast iron workpieces. The Kenclamp clamping system holds the insert securely under heavy interrupted and continuous cuts. Coolant-through capability is not available on this holder.

Key Features

• DDJN toolholder style with 3-degree lead angle for general OD turning
• Right-hand cutting orientation
• Negative rake insert geometry for increased edge strength and longer tool life
• Kenclamp top clamp insert holding method for secure, repeatable insert seating
• Steel toolholder body for rigidity under heavy cutting loads
• Accepts DN..33. (3/8-inch inscribed circle) inserts

Compatibility

Designed to accept DN..33. series inserts with a 3/8-inch inscribed circle. Complete insert compatibility reference: DN.. 332. This holder is part of the Kennametal Kenclamp series and is cataloged under Kennametal catalog number DDJNR L163DKC3.

Installation Notes

Installation and tool setup should be performed by a qualified machinist or toolroom technician. Ensure the lathe spindle is fully stopped and the machine is in a safe lockout state before changing inserts or mounting the toolholder. The toolholder shank should be clamped squarely in the tool post or turret to the correct centerline height before operation. Follow the machine tool and insert manufacturer guidelines for appropriate cutting parameters.
