Kennametal 2229696 Turning Insert VNMG331MS KC5010 Carbide

Product Description

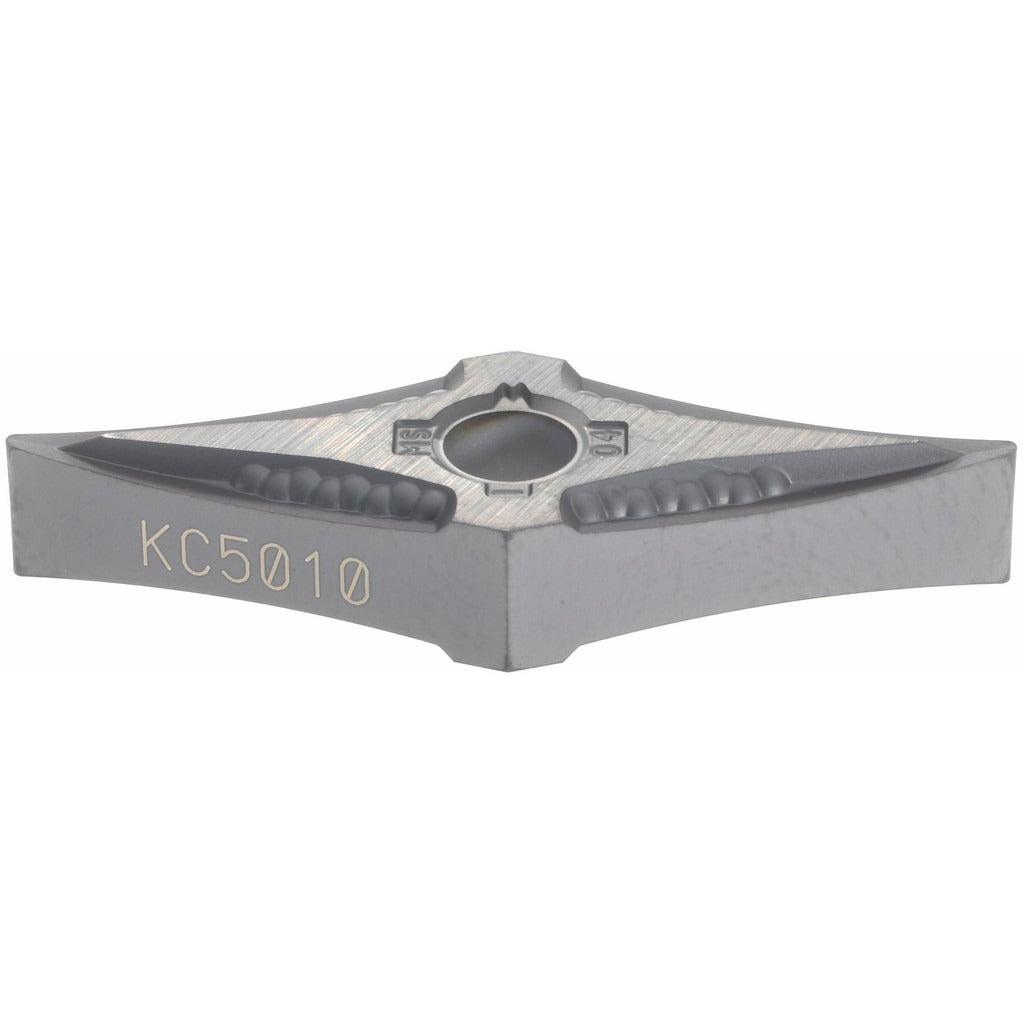

The KENNAMETAL 2229696 is a solid carbide turning insert in the VNMG331MS geometry, coated with TiAlN via a PVD process under the KC5010 manufacturer grade. It carries a 35-degree diamond (rhombic) shape with a neutral hand orientation, a 3/8-inch inscribed circle, and a 1/64-inch corner radius. The insert seats with negative rake and negative side clearance, making it well-suited for interrupted cuts and demanding turning applications. Four cutting edges are available per insert. Intended for use by machinists and CNC turning specialists, the 2229696 fits within the KENNAMETAL KENLOC toolholding system.

This insert is designed for turning, facing, boring, back turning, and back boring operations on steel, stainless steel, cast iron, superalloys, and titanium workpieces. The MS chip breaker geometry is rated for roughing and medium machining. The KC5010 grade delivers high to moderate wear resistance with adequate toughness across steel (P), stainless steel (M), and cast iron (K) material classes. It is appropriate for production turning in both manual and CNC environments where consistent chip control and extended tool life are required.

Key Features

• VNMG331MS geometry with 35-degree diamond shape and 1/64-inch corner radius for controlled cutting engagement
• TiAlN PVD coating in KC5010 grade provides high wear resistance on steel, stainless steel, and cast iron
• MS chip breaker supports roughing and medium machining operations
• Four usable cutting edges per insert reduce tooling cost per edge
• Neutral hand insert compatible with KENLOC clamp and pin holding systems
• Maximum depth of cut of 0.0492 inches (1.25 mm) for medium to roughing passes

Compatibility

Designed as an OEM-style replacement for KENLOC series toolholders accepting VNMG331 geometry inserts. Conforms to ANSI insert code VNMG331 and ISO insert code VNMG160404. Compatible with clamp and pin style insert holding methods.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be stopped and all energy sources locked out before indexing or replacing inserts. Use appropriate insert seating tools to ensure full contact between the insert and pocket; do not overtighten clamping screws beyond tool manufacturer torque guidelines. Inspect the insert pocket and shim for wear or damage before seating a new insert.
