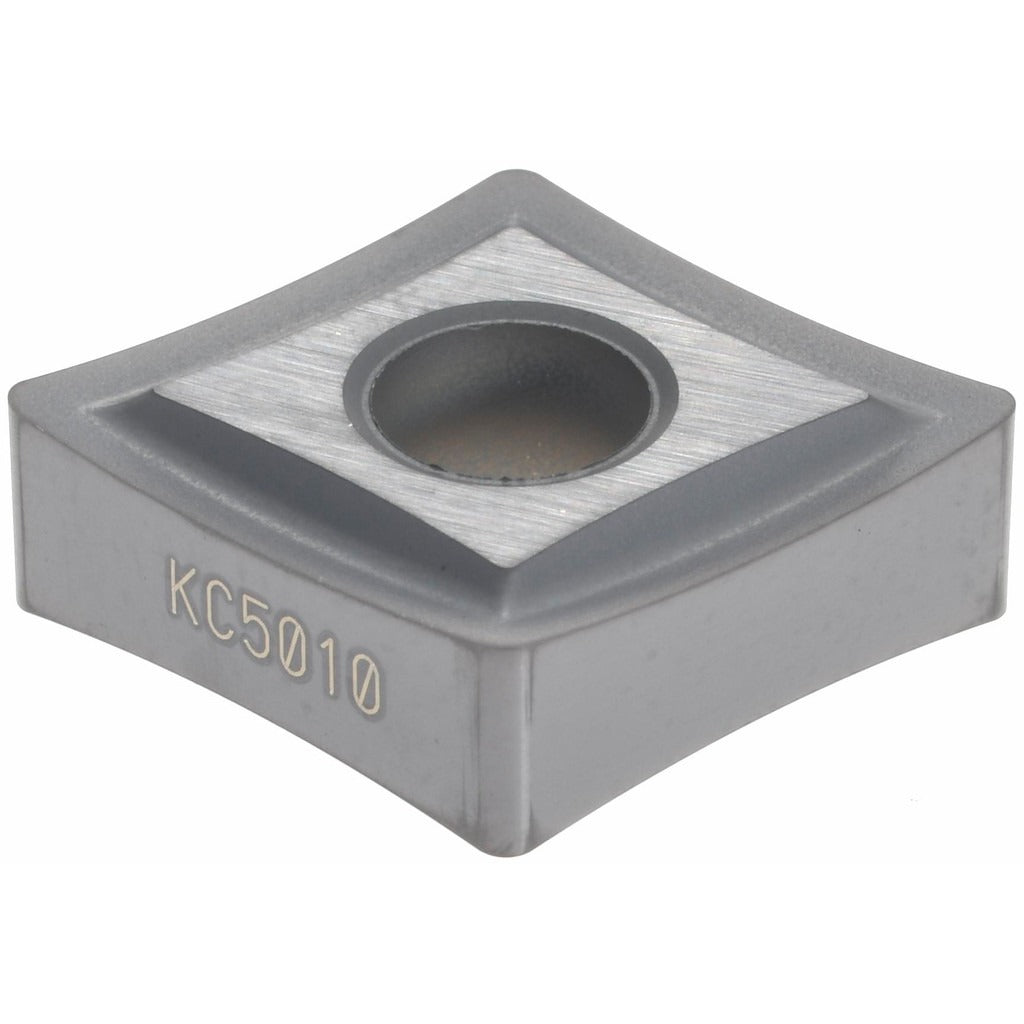

Kennametal 1867620 CNGP432 KC5010 Carbide Turning Insert

Product Description

The KENNAMETAL 1867620 is a solid carbide turning insert with a TiAlN PVD coating, designed for high-wear and moderate-toughness applications in CNC turning, facing, and boring operations. It carries the ANSI insert code CNGP432 and ISO code CNGP120408, placing it in the KENLOC series. The 80-degree diamond (rhombic) shape provides a strong cutting geometry with a neutral hand orientation and negative rake angle. The KC5010 grade is engineered for steel, stainless steel, cast iron, and superalloys and titanium, delivering high wear resistance across those material groups. With four cutting edges per insert, this grade extends tool life on demanding production runs.

This insert is suited for medium machining operations on steel, stainless steel, cast iron, aluminum, and superalloys and titanium in both production turning and general-purpose shop environments. The CNGP432 geometry is used in external turning, facing, and boring applications where a stable, high-rigidity clamping setup is required. Insert holding is achieved via clamp or pin, consistent with standard KENLOC toolholders. The chip breaker geometry targets medium-depth cuts with a maximum depth of cut of 0.0492 inches (1.25 mm).

Key Features

• KC5010 grade with TiAlN PVD coating — high wear resistance on steel, stainless steel, and cast iron
• 80-degree diamond (rhombic) insert shape for strong nose geometry and versatile entry angles
• Four cutting edges per insert for extended tooling economy
• Negative rake, negative side clearance (clearance code N) for rigid interrupted and continuous cuts
• Honed cutting edge style reduces micro-chipping on hard and abrasive workpiece materials
• Compatible with clamp and pin holding methods in KENLOC-style toolholders

Compatibility

Designed for use in KENLOC series toolholders accepting CNGP432 geometry inserts. Conforms to ANSI and ISO standards (ANSI CNGP432 / ISO CNGP120408) for broad toolholder interchangeability. Verify toolholder pocket specifications before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before seating or indexing the insert. Seat the insert fully in the pocket before tightening the clamp or pin to the toolholder manufacturer's specified procedure. Inspect the pocket seating surface for chips or debris prior to installation to prevent insert rocking and premature edge failure.
