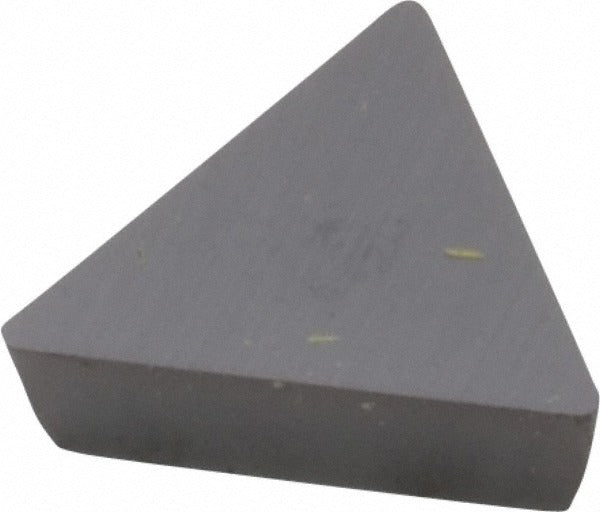

Kennametal 1865531 TPG221 KC5010 Carbide Turning Insert

Product Description

The KENNAMETAL 1865531 is a solid carbide turning insert in the TPG221 geometry, coated with TiAlN via a PVD process and manufactured under the KC5010 grade designation. This triangular insert features a neutral hand orientation, a 1/4-inch inscribed circle, a 1/64-inch corner radius, and an 11-degree relief angle. The flat-top chip breaker and honed cutting edge deliver high wear resistance across a range of cutting conditions. It is designed for use in KENDEX-style toolholders secured by a clamp-style holding method. Licensed machinists and CNC turning specialists install these inserts in production and job-shop environments.

This insert is suited for turning, facing, and boring operations on steel, stainless steel, superalloys, titanium, cast iron, and aluminum. The KC5010 grade provides high-to-moderate wear resistance combined with adequate toughness, making it effective for finishing and light-to-moderate material removal rates. The positive rake and positive side clearance geometry reduce cutting forces and minimize heat buildup at the edge. Three usable cutting edges per insert are available, lowering per-edge tooling cost in volume applications.

Key Features

• KC5010 grade TiAlN PVD coating for high wear resistance on steel, stainless steel, cast iron, superalloys, and titanium
• TPG triangle geometry with 60-degree included angle and 11-degree relief angle
• Flat-top chip breaker with honed cutting edge for controlled chip formation
• Positive rake and positive side clearance reduce cutting forces
• Three usable cutting edges per insert
• Suitable for turning, facing, and boring applications

Compatibility

Designed for use in KENDEX-series toolholders that accept TPG221 clamp-style inserts. Conforms to ANSI insert code TPG221 and ISO insert code TPG110304, making it compatible with any toolholder specifying those standards.

Installation Notes

Installation is performed by licensed machinists or CNC tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Seat the insert fully in the pocket and verify clamp torque per the toolholder manufacturer's specification before resuming cuts. Inspect the insert pocket and clamp for debris or wear each time an edge is indexed.
